ASP-01 Replaceable Electret Microphone for Flexible boom Aviation Headsets

ASP-01 Replaceable Electret Microphone for Flexible boom Aviation Headsets.

Compatible with Crystal Mic, David Clark and Most PNR Headsets.

Item no.:
ASP-01
Color:
Black
Min order:
50

Inquiry now

The Model ASP-01 is an Electret, noise-cancelling microphone designed to Replaceable of aviation headset microphones.

---Provides clear, crisp voice transmission.

---The microphone is designed and constructed from quality durable high strength ABS plastic.

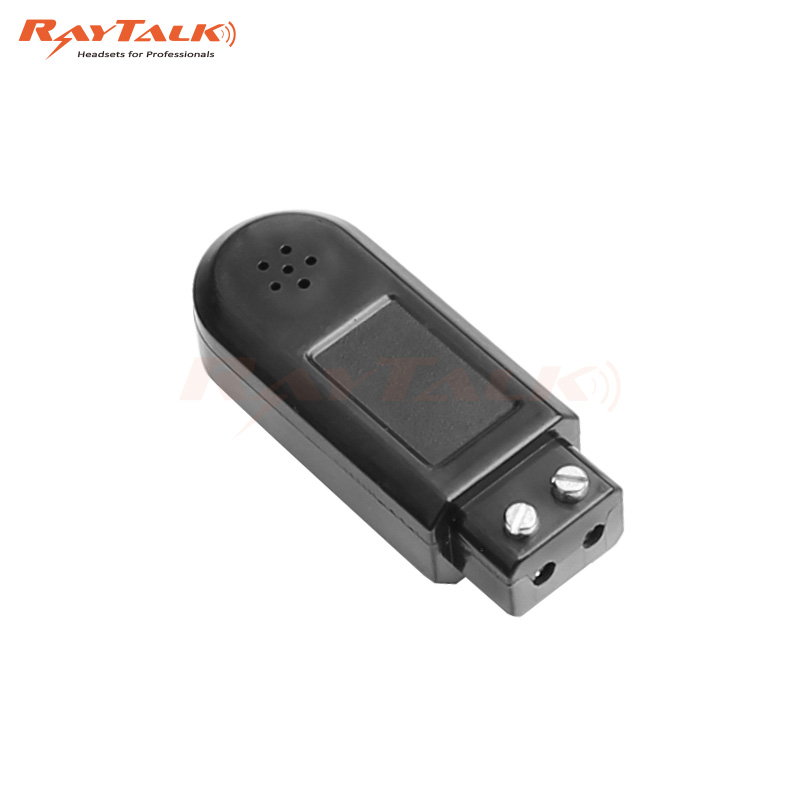

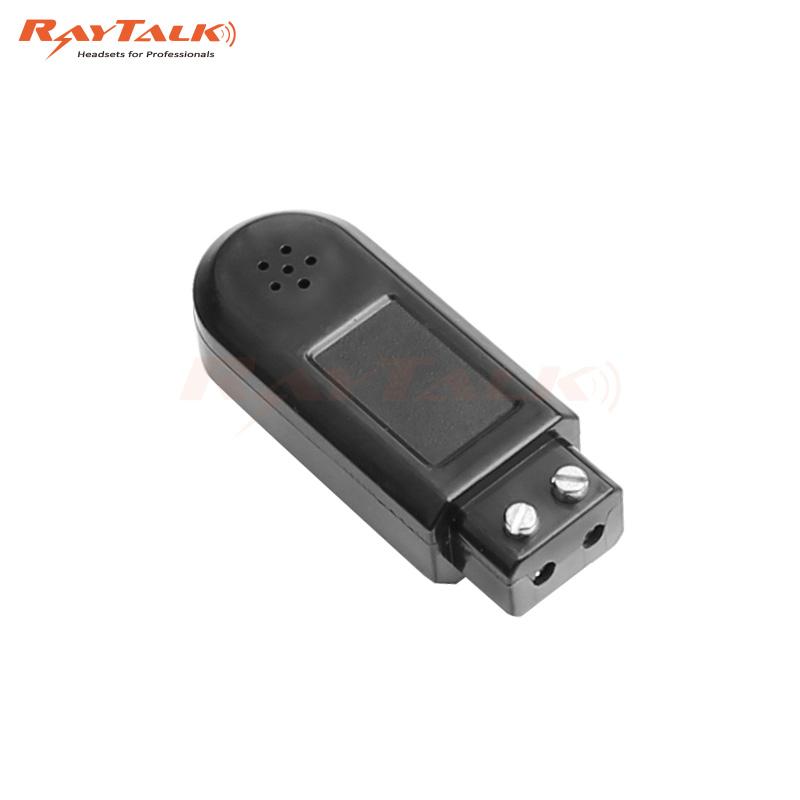

ASP-01 Electret Microphone

Microphone Specification:
Sensitivity Range	-46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz
Impedance Max	2.2K2 1kHz (RL=2.2KΩ)
Frequency	20-20KHz
Current Consumption Max	VS=2.0V RL=2.2KΩ MAX: 500 μA
Operation Voltage Range	2.5-10V (DC
Max Sound pressure Level	110dB S.P.L
