C-Shape Ear hook earpeice Microphone is designed with a metal clip that can be clipped onto a collar, tie or lapel and quickly activated with the push to talk (In-line PTT) button located in the center of the switch
Item no.:
EM-3327Color:
BlackMin order:
50
![]() |

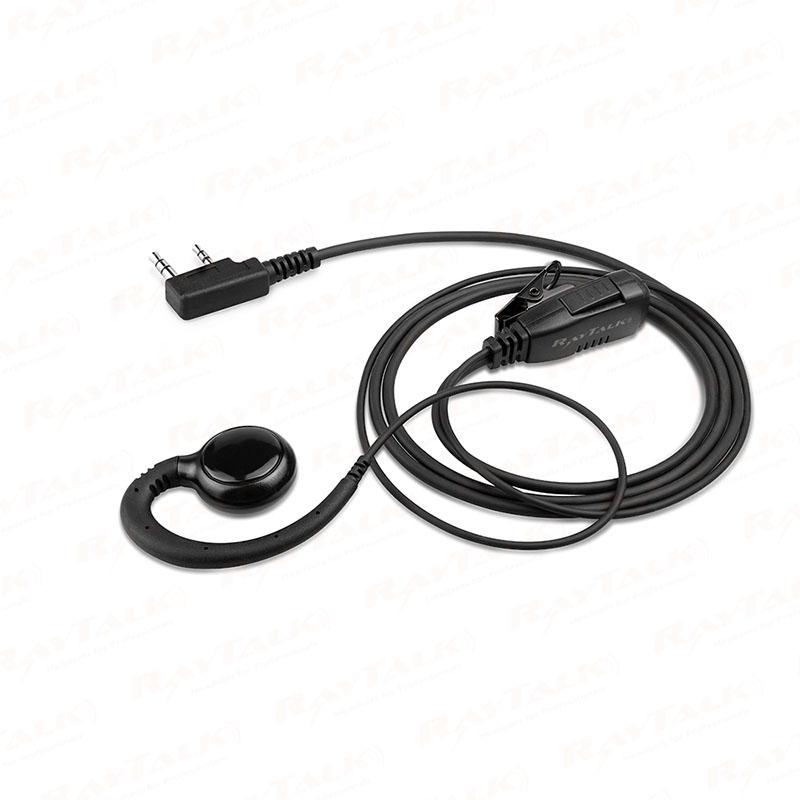

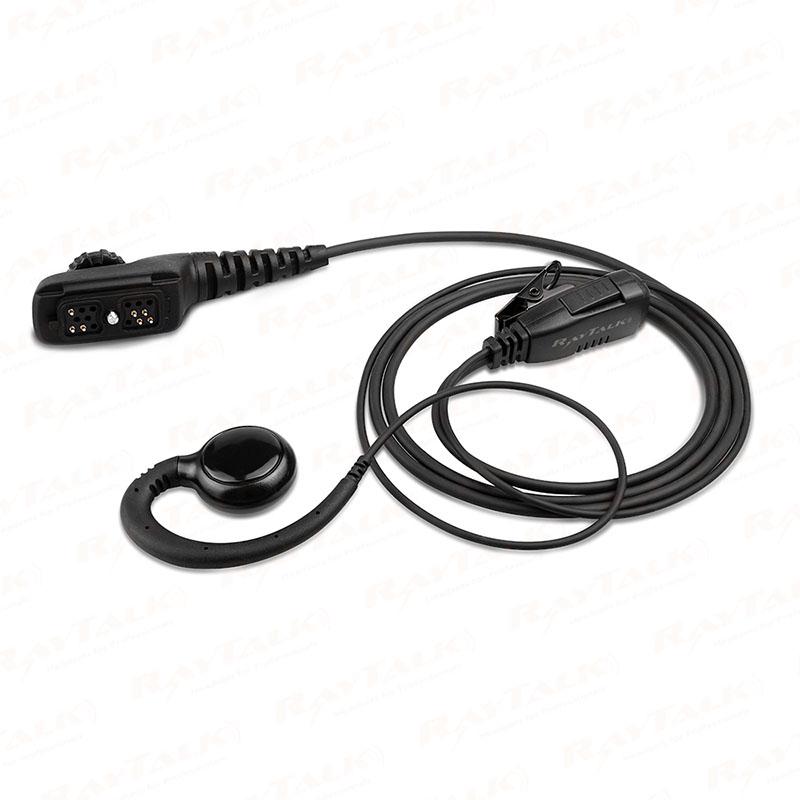

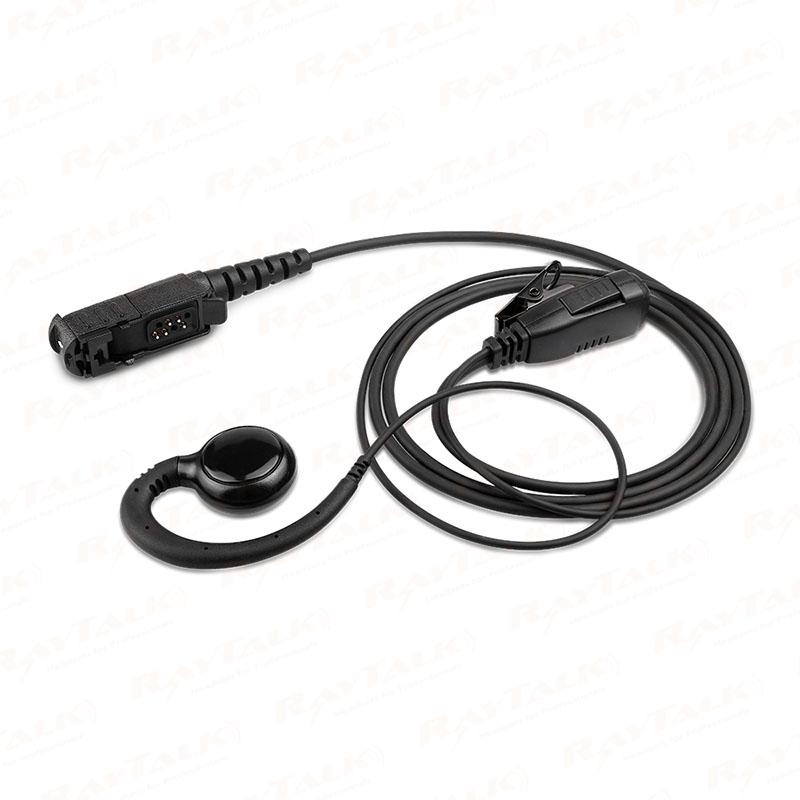

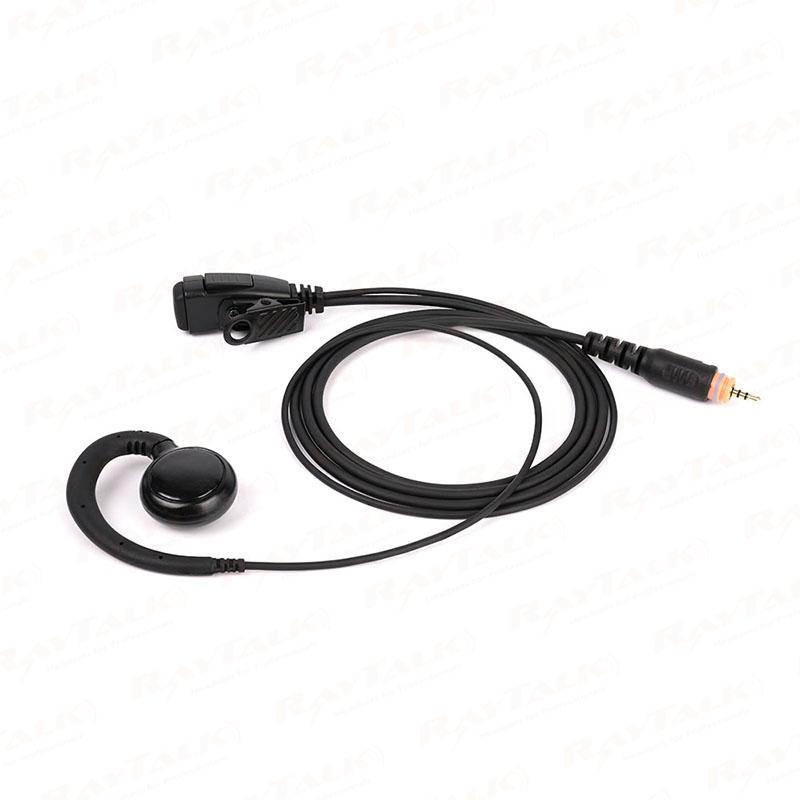

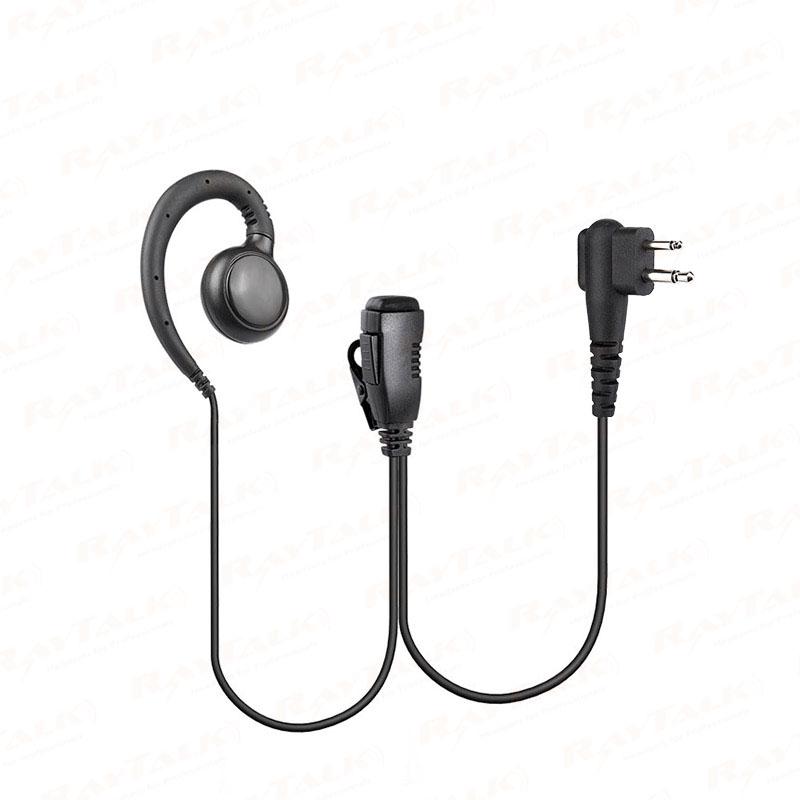

EM-3327 C-Shape ear hook earpiece security headset with PTT for radio
◆Embedded quality sound chipset will provide a loud and clear output ◆Lightweight and balanced to provide comfortable all day wearing ◆Polyurethane-jacked, Kevlar cables for extended life in the field ◆Great for Security, Hotels, Casinos, Rentals, Hospitality industries, nightclubs, etc |
|
Microphone Specification: |
|
|
Sensitivity Range |
-36± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
|
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
|
Frequency |
20-20KHz |
|
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
|
Operation Voltage Range |
2.5-10V (DC |
|
Max Sound pressure Level |
110dB S.P.L |
|
Speaker Specification: |
|
|
Impedance |
150Ω+15%@1KHZ |
|
Sensitivity |
95dB+10%/1Watt 0.5Meter |
|
Resonance freq |
(FO) 680HZ+20% |
|
Frequency respond |
F-5KHZ |
|
Rated input power |
1.0W |
|
Maximum input power |
1.5W |
![]() |

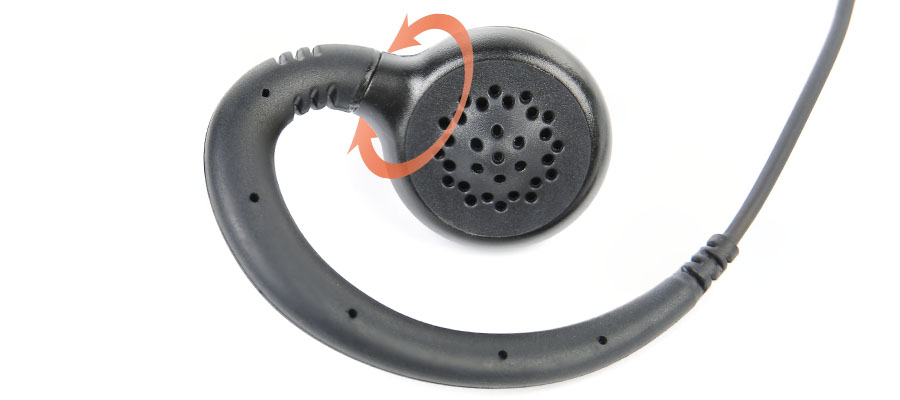

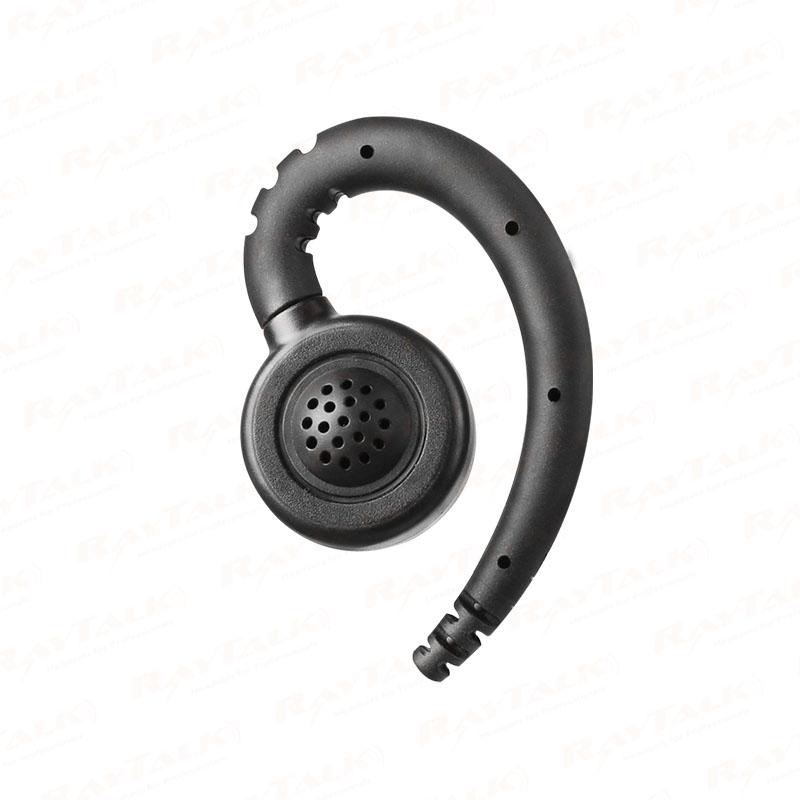

Soft Rubber C-ring adjustable earhook with clear audio speaker |
|

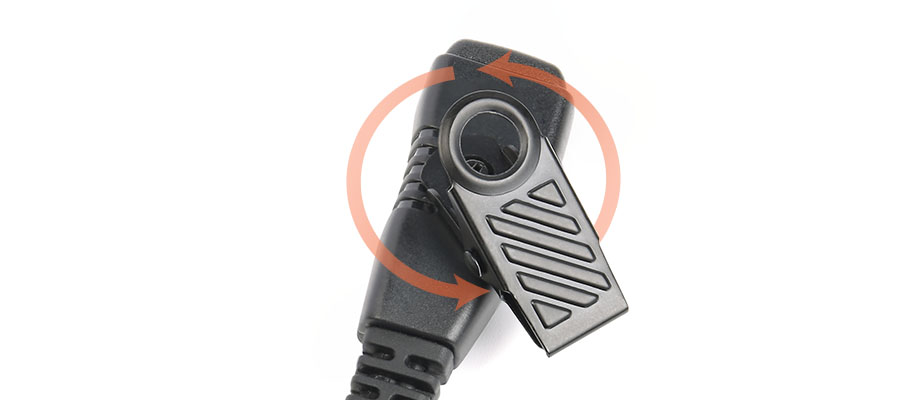

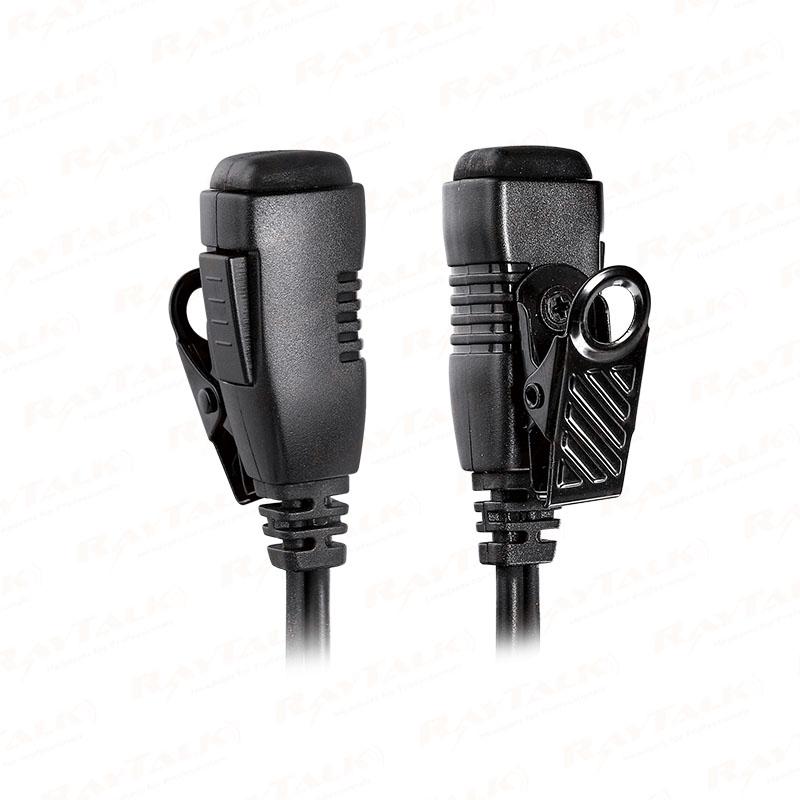

PTT #27 Palm lapel PTT with microphone & Swivel metal clip |
![]() |
![]() |
Kevlar cables for extended life in the fiedl |
