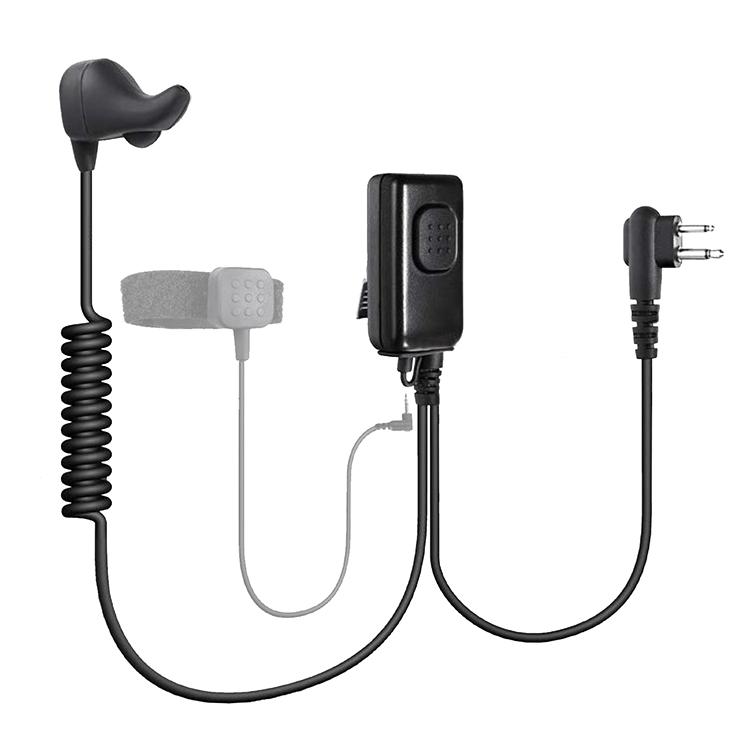

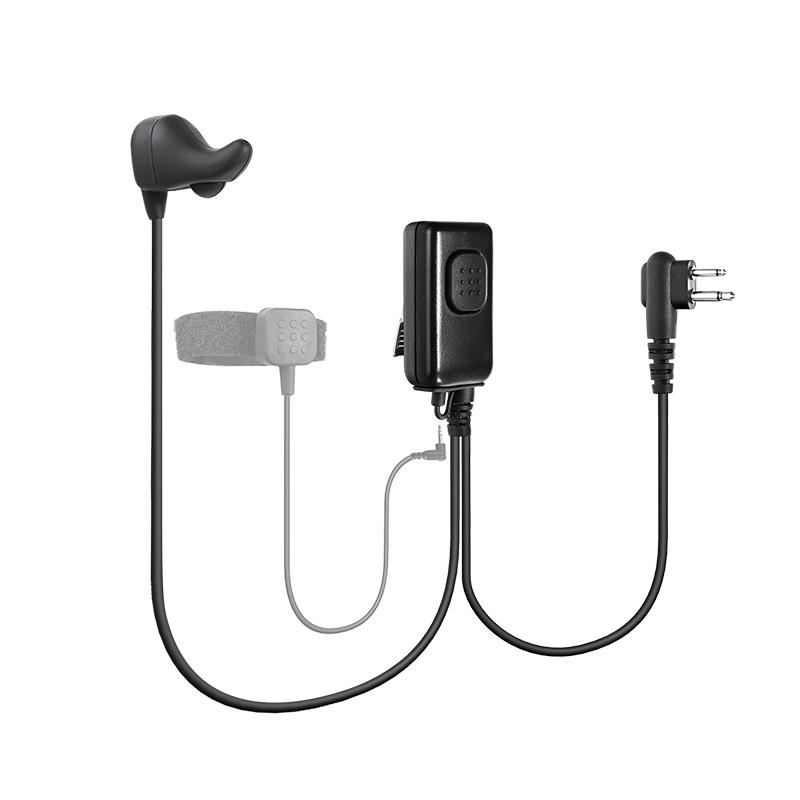

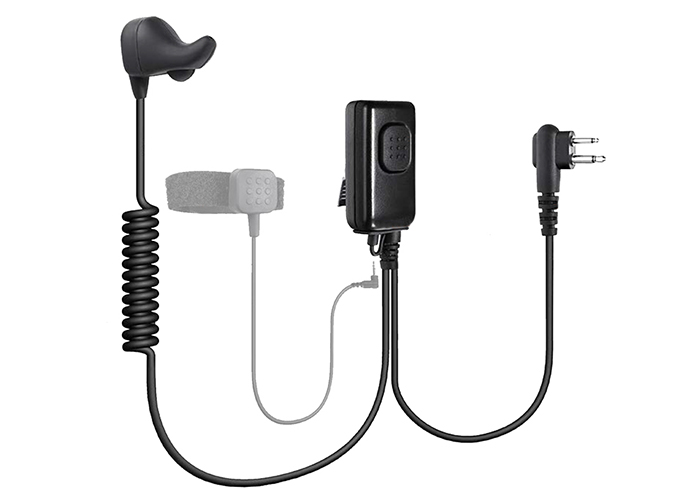

EM-5030C Ear-Bone Microphone combines a bone conduction microphone and in-ear speaker into a single earpiece that fits comfortably in your ear. The earpiece delivers your radio’s speaker output into your ear for clear and private radio reception.

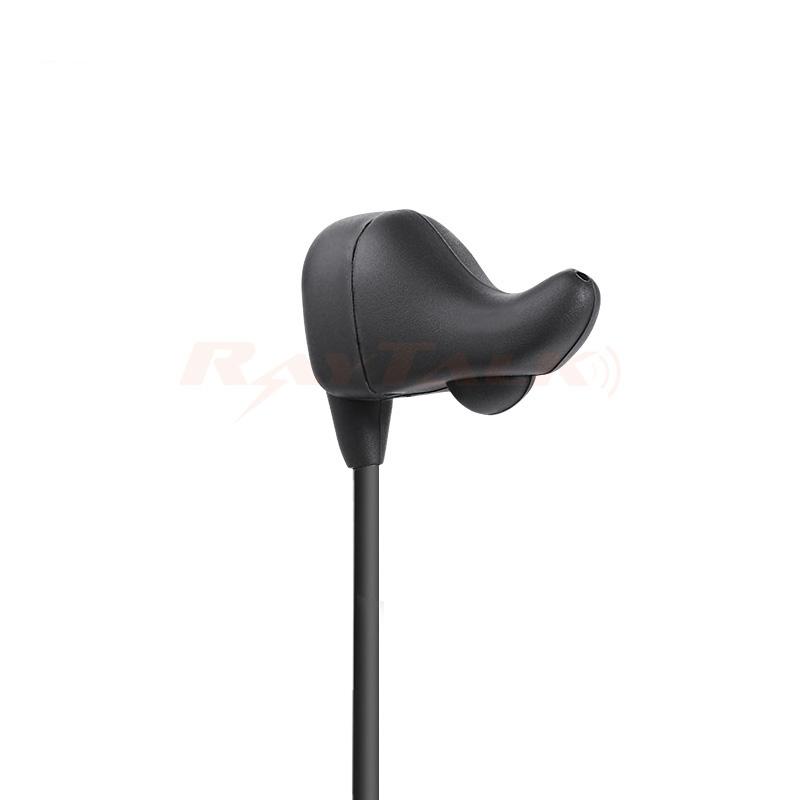

Features an elliptical earpiece with a soft cushion that rotates to make optimal contact in any size ear. EM-5030C Ear-Bone Mic is ideal for surveillance, SWAT, military and tactical use.
Item no.:
EM-5030CColor:
BlackMin order:
50
|

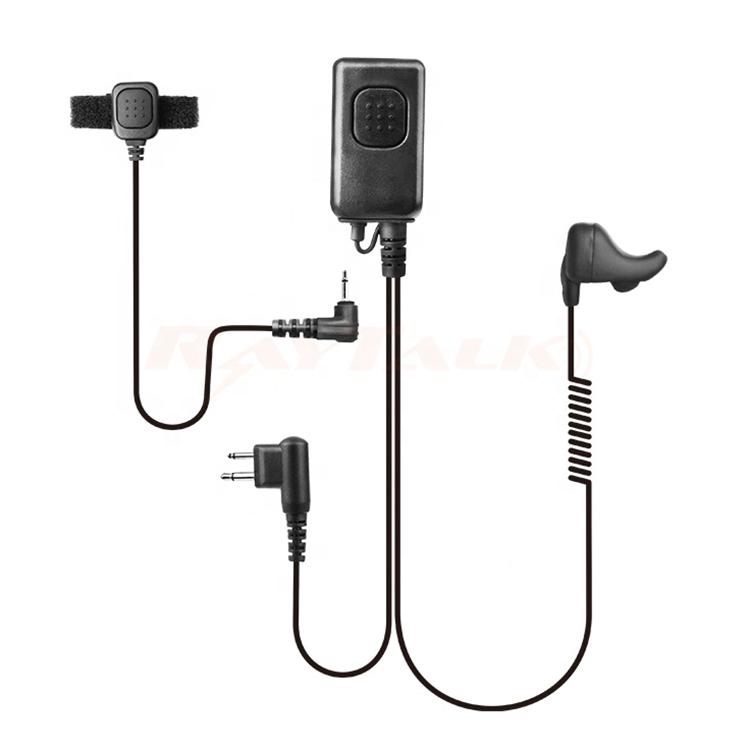

EM-5030C radio Ear bone conduction microphone earpiece with finger PTT

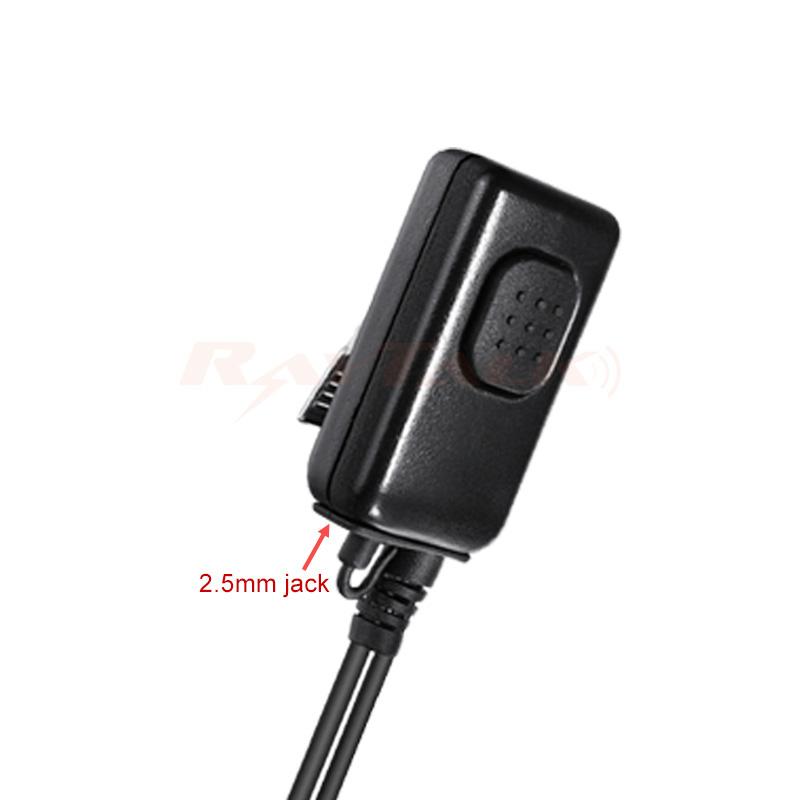

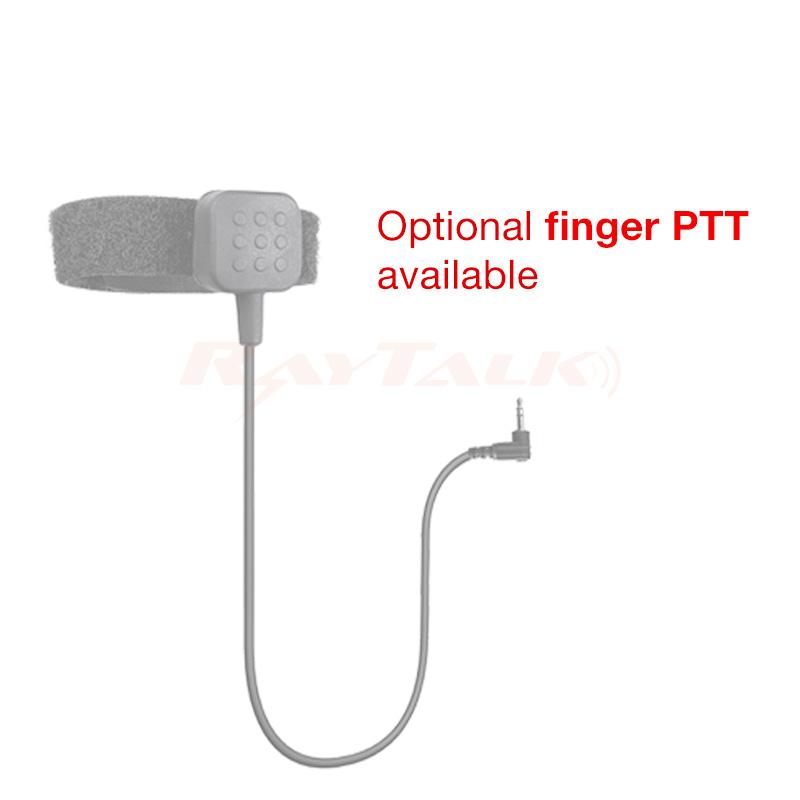

◆ Ear bone microphone with finger PTT or big lapel PTT ◆ Transmit and receive through the ear (use jaw bone to conduct sound) ◆ Perfect solution for loud environments ◆ Discreet applicate to professional personal such as SWAT, polices who are on special mission ◆ PU coiled cable with Kevlar ◆ PTT with external 2.5mm jack for remote finger PTT |
Microphone Specification: |
|
Sensitivity Range |
-35± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
30Ω+15%@1KHZ |
Sensitivity |
120dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |

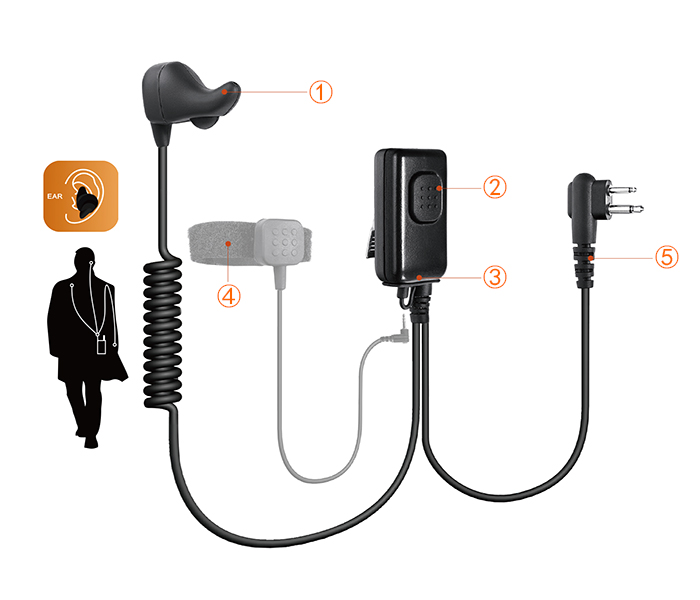

① Ear Bone Conduction ② Upgraded PTT ③ 2.5mm Jack for External Accessory ④ Option Finger PTT with Velcro Strap |
