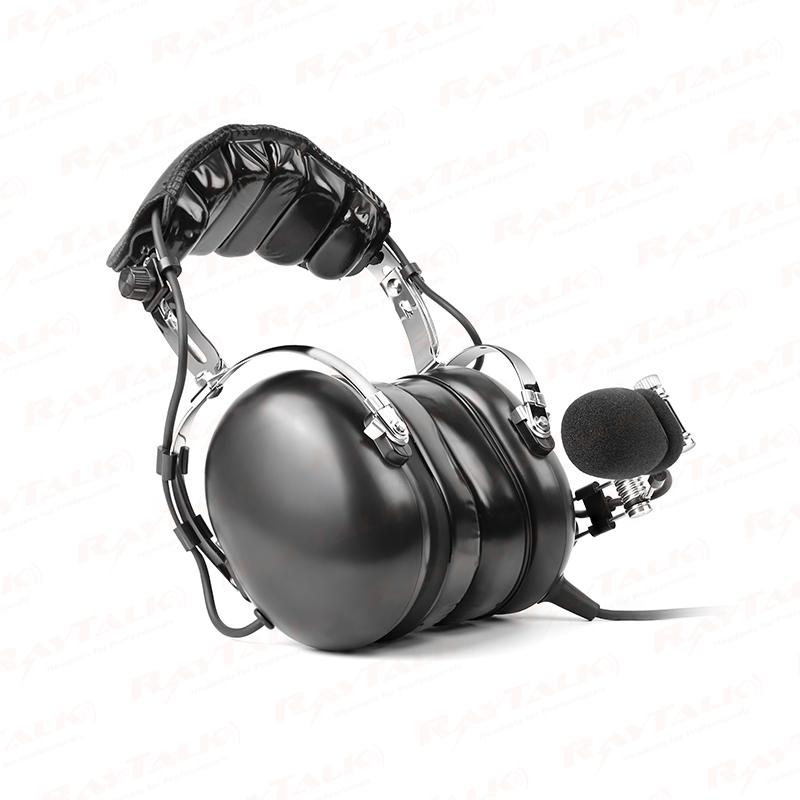

PH-100 Fixed wing aircraft headset Perfect aviation headset for all: pilots, instructors, student pilots, flight schools and more. It provides maximum comfort with ultra-soft half gel half foam ear seals, exceptional noise reduction with clear sound, high-quality materials durability built to last.Is a perfect pilot flying aviation headset.
Item no.:
PH-100Color:
Black,Blue,Yellow,Green,Gray,Pink,Red,OrangeMin order:
10
![]() |

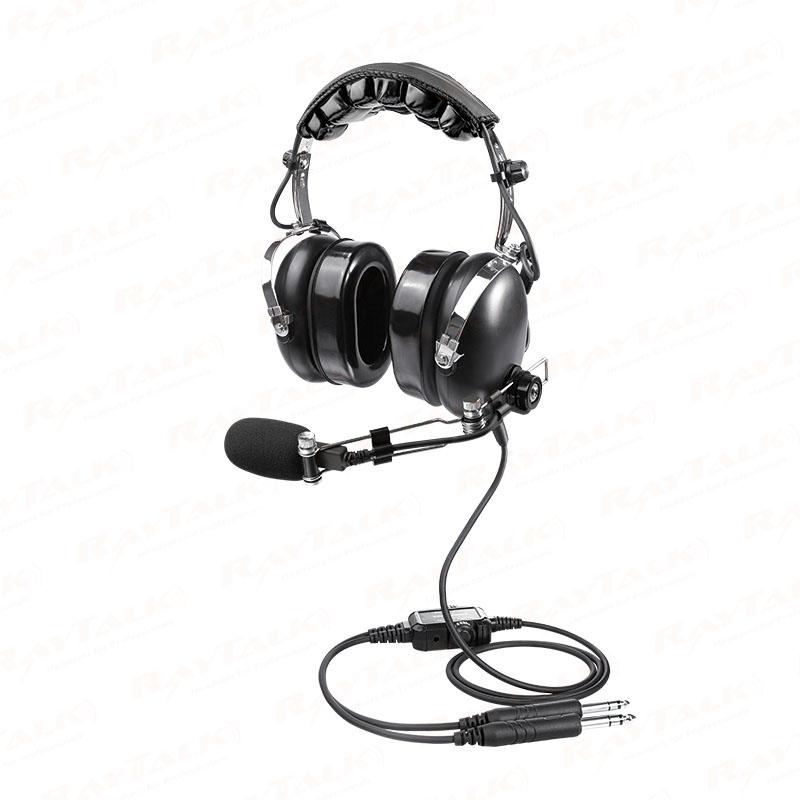

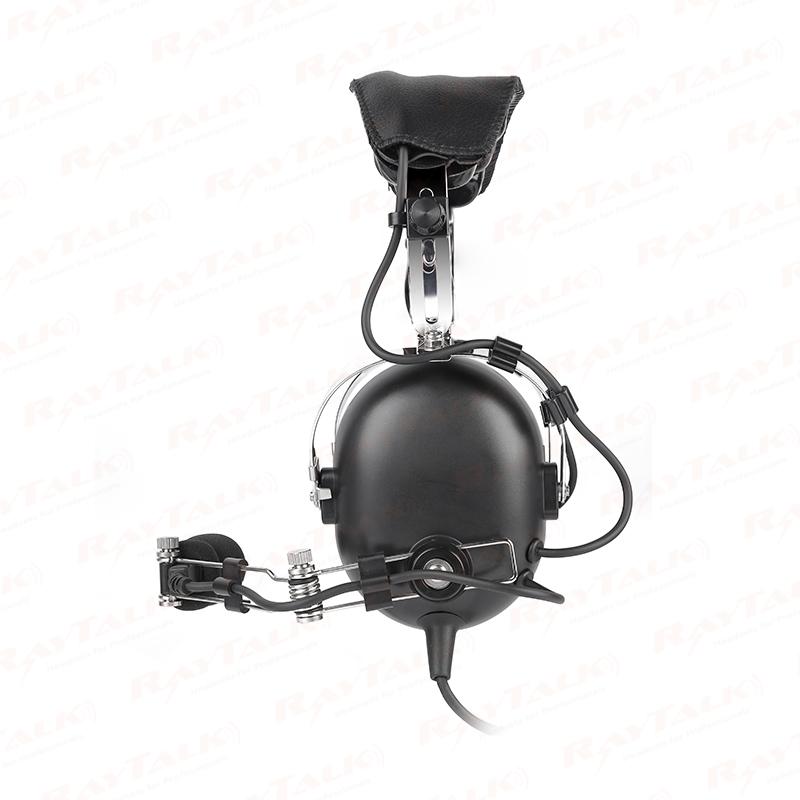

PH-100 Fixed wing ga plug PNR noise-reduction aviation headset for student pilot

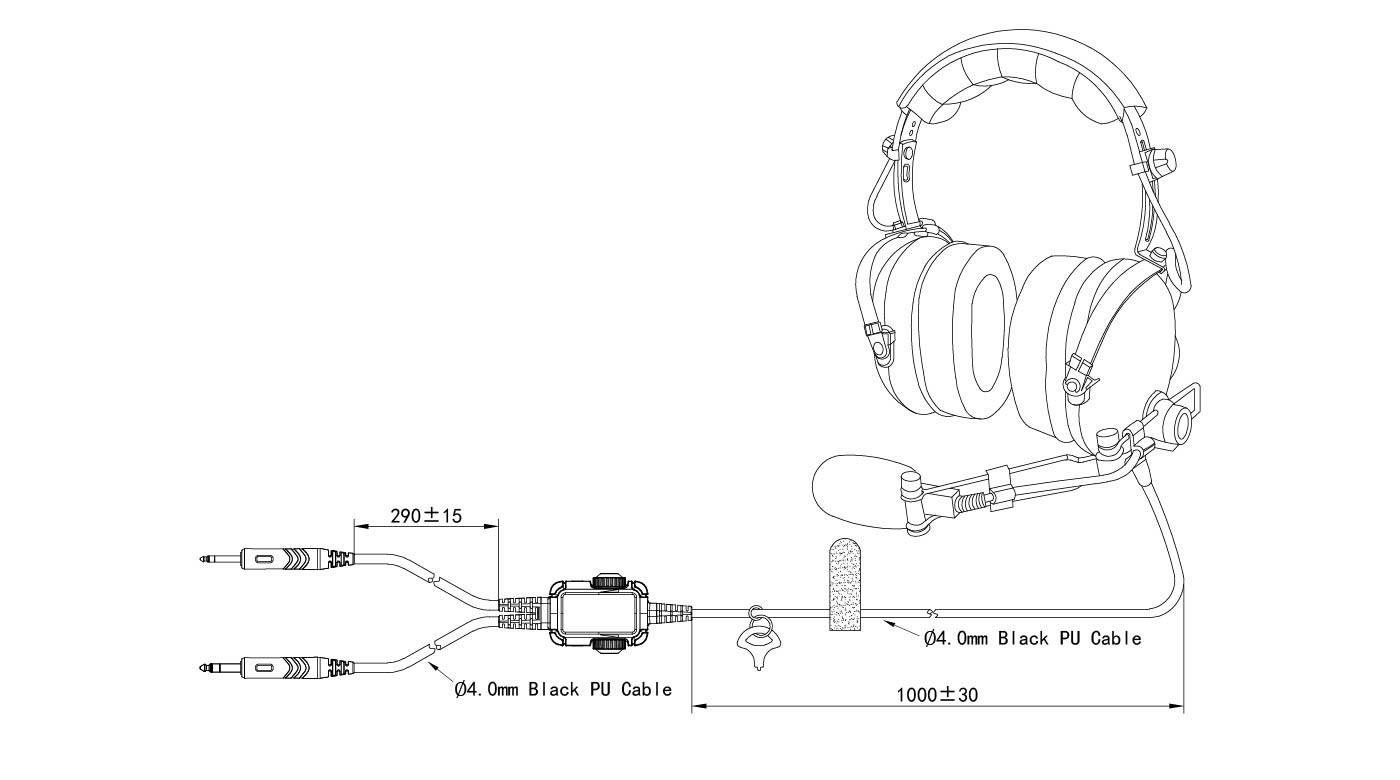

High-density half gel half foam ear cups Industry standard passive Noise Reduction Rating (NRR) of 23 dB Electret noise-canceling flex-boom microphone Clear performance audio speakers GA dual plugs for connection and corrosion resistance Low-profile Volume control knob Straight cord from headset to molded plug, 130CM Compatible MP3 player 3.5mm Audio Interface (will need 3.5mm to 3.5mm Adapter Cable that is not included) |
Microphone Specification: |
|
Sensitivity Range |
-46± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
300Ω+15%@1KHZ |
Sensitivity |
119dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |

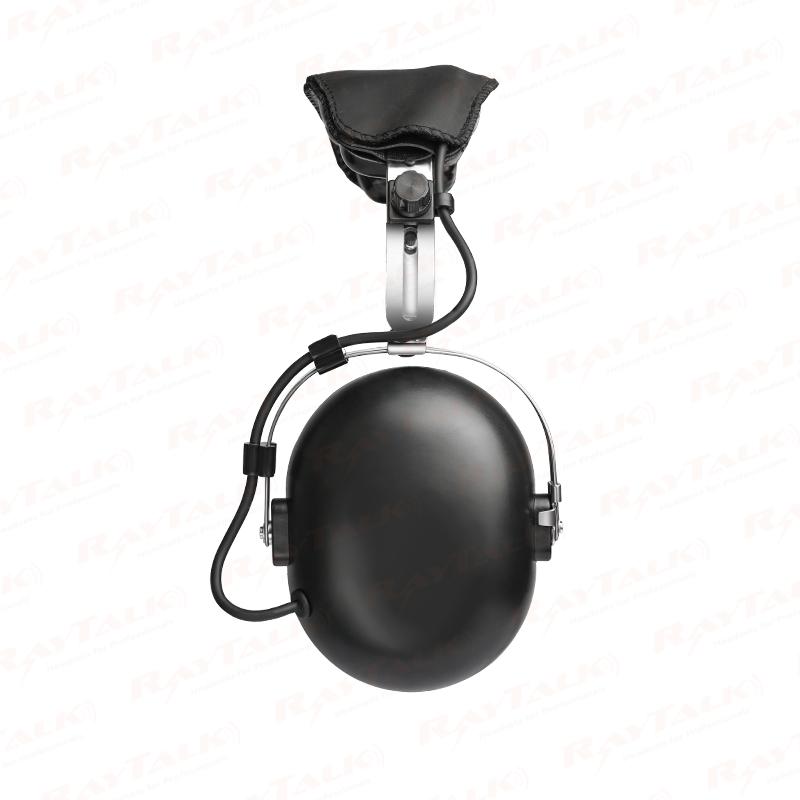

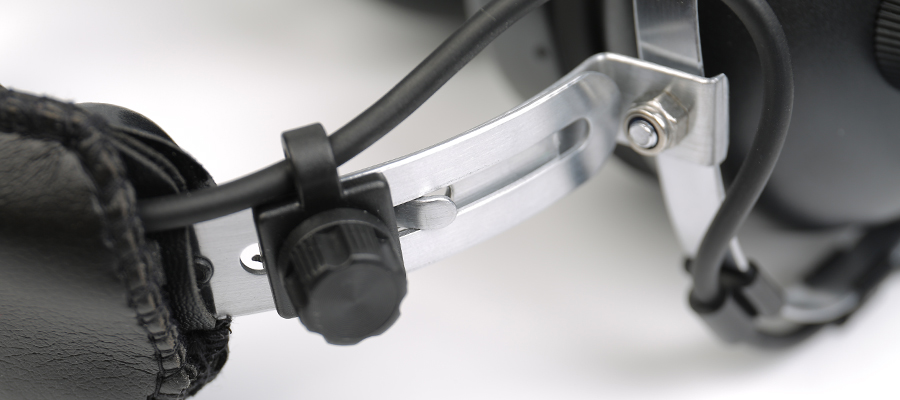

Over-the-head Stainless Steel Adjustable Band |
![]() |
![]() |

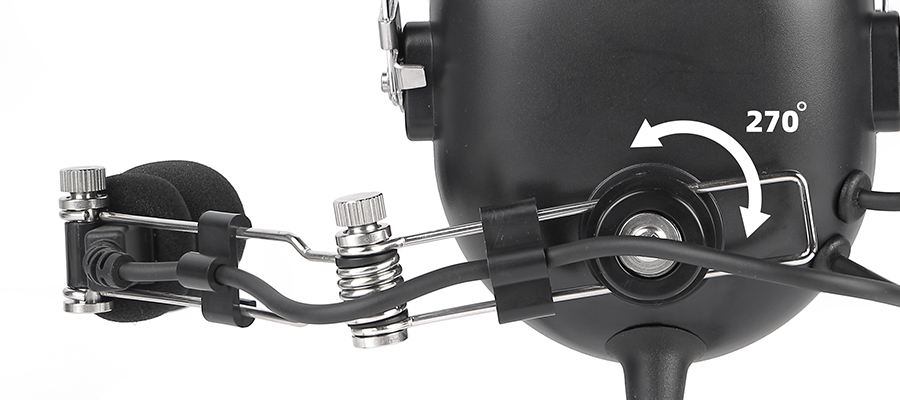

270 Degree Rotatable Adjustable Metal Boom Arm |

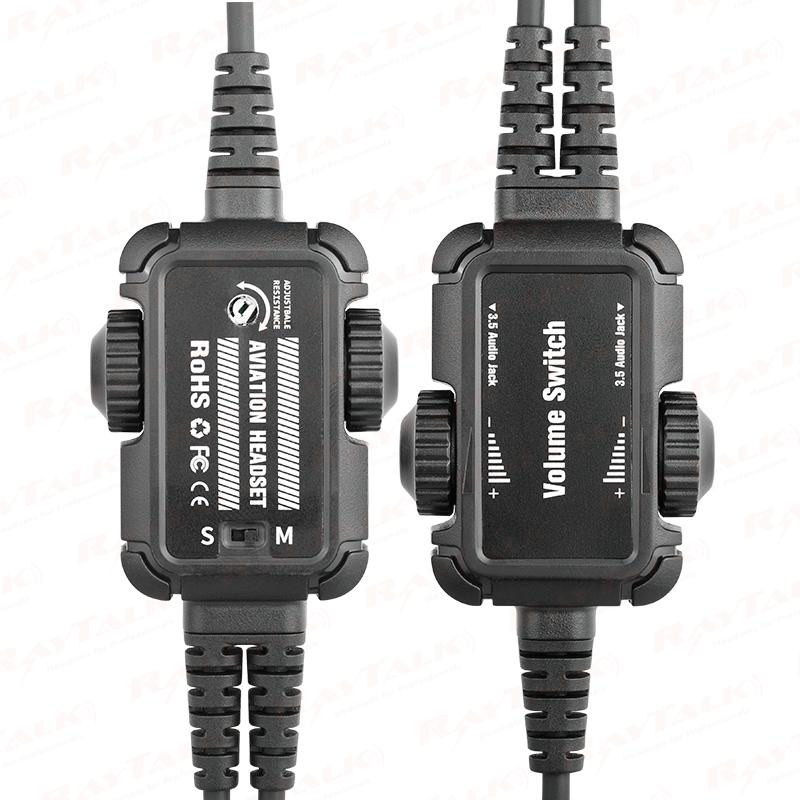

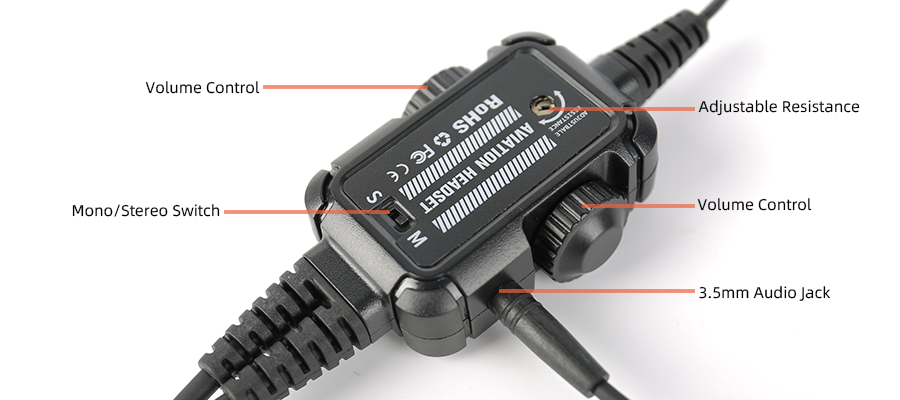

Control Module |
![]() |
![]() |

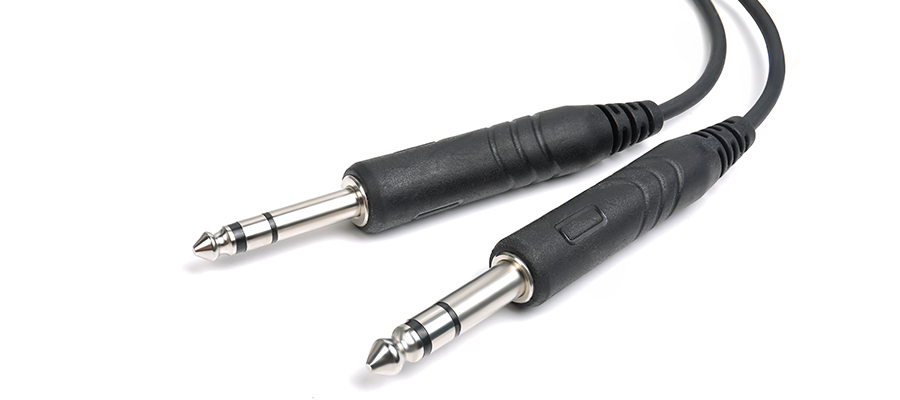

PJ-055 and PJ-068 GA Dual Plugs |

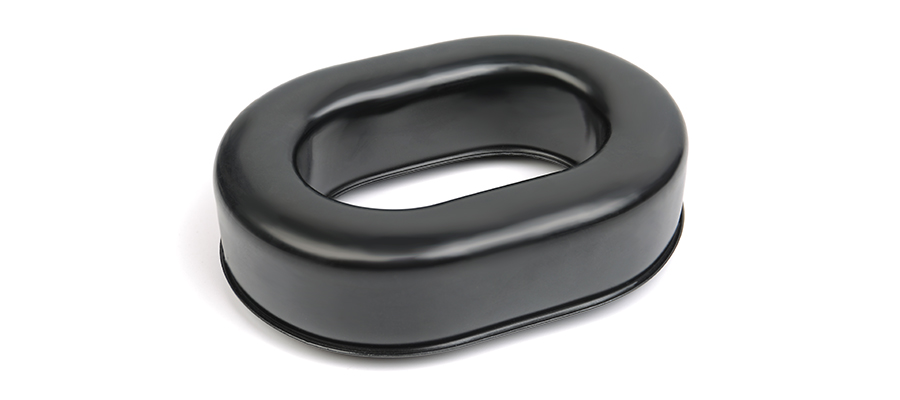

Half Gel half foam Ear Pad |
![]() |
