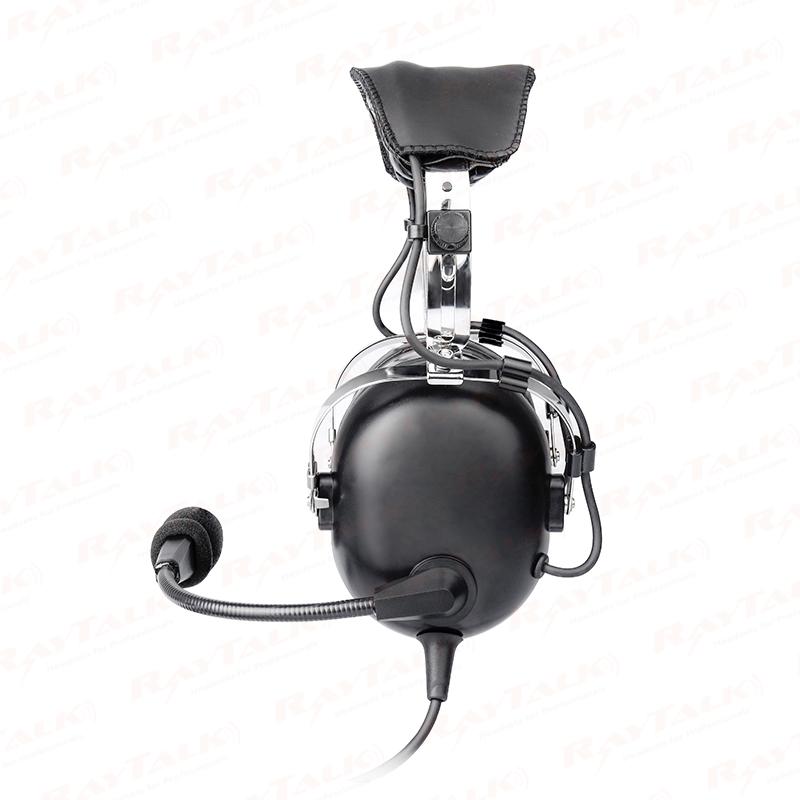

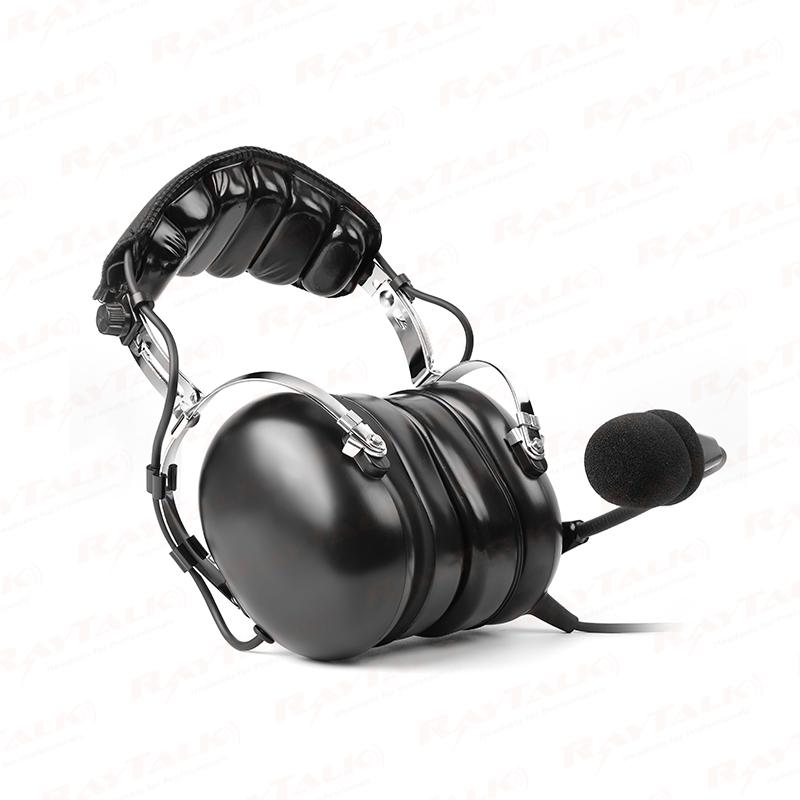

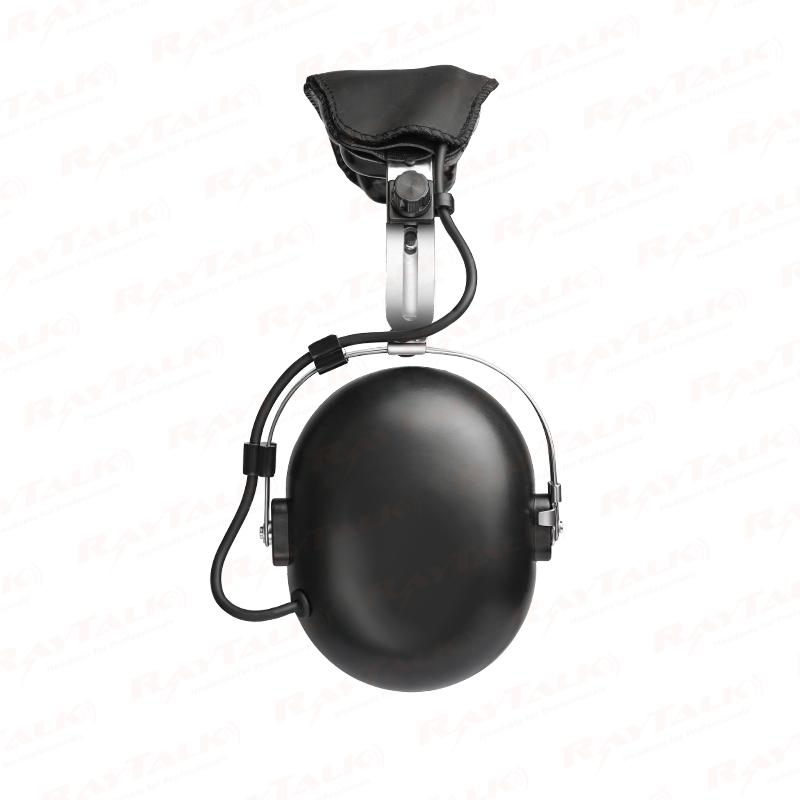

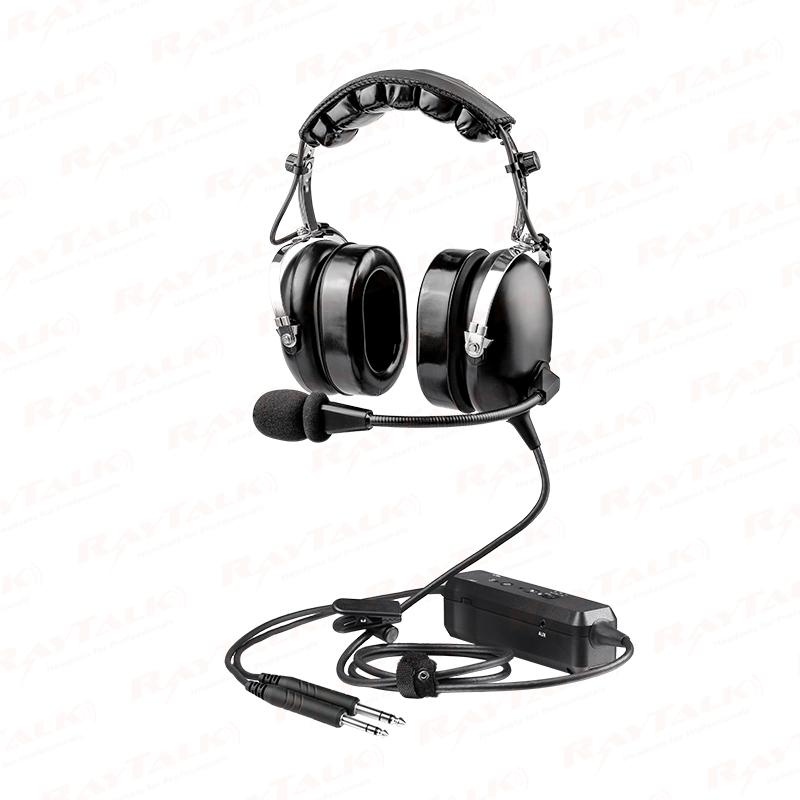

PH-100AC-BT general aircraft pilot headset active noise cancelling bluetooth aviation headset

PH-100AC-BT Bluetooth aviation headset is the result of Walkieconnect R&D team years hard working and continuous improvements.

Configuration bluetooth Control Module  then Upgrade bluetooth headset,you can enjoy great sound quality music or make a phone call via bluetooth.Noise-canceling electret Microphone-crystal Clear communication, more Comfortable.Top comfortable ear seal Engineered to comfortably protect your ears on the Long-distance flight。

  • Item no.:

    PH-100AC-BT
  • Color:

    Black
  • Min order:

    10
  • Active noise reduction:

    YES

pilot headset

PH-100AC-BT general aircraft pilot headset active noise cancelling bluetooth aviation headset


Active Noise Reduction Ratings(NRR):29dB.

Passive Noise Reduction Ratings(NRR):23dB.

Half gel half foam ear seal inside super comfortable

Plastic ear shell with Bluetooth enabled for music and phone calls.

Auxiliary 3.5mm audio input(cable included).

3-Way audio priority switch: A)Intercom priority, B)All audio sources, C)Intercom only.

3-Color power/Battery status LED.

4-Function bluetooth status LED.

Using 2 AA batteries.(Battery not include)

Premium noise cancelling electret microphone ensures crystal clear communication.

bluetooth aviation headset

Microphone Specification:

Sensitivity Range

-52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L

Speaker Specification:

Impedance

45Ω+15%@1KHZ

Sensitivity

95dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W

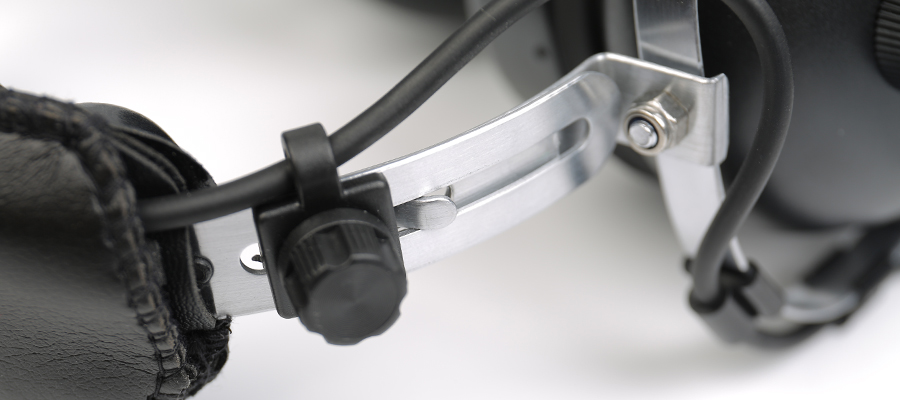

Over-the-head Stainless Steel Adjustable Band bluetooth aviation headset

active noise cancelling aviation headset

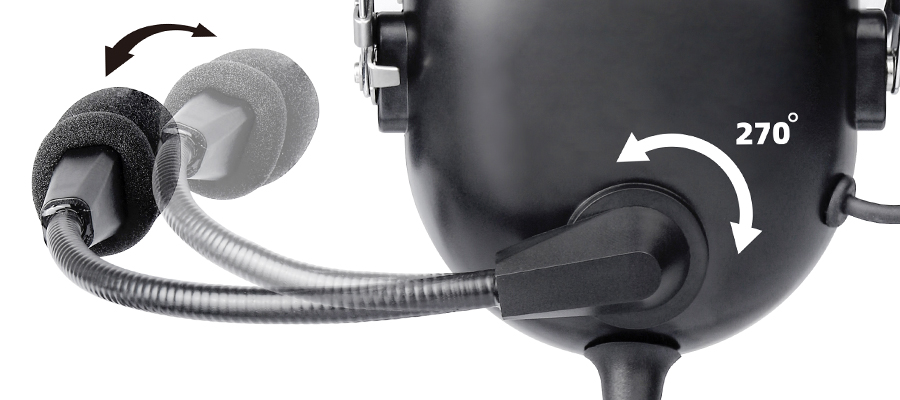

270 Degree Rotatable

Flexible Boom

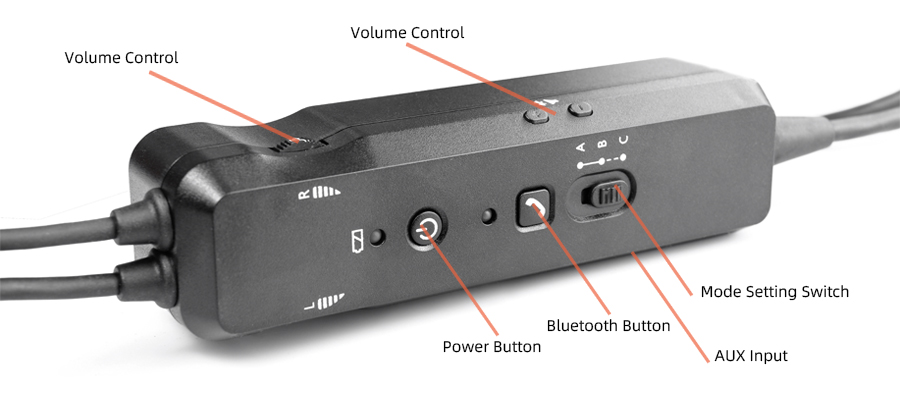

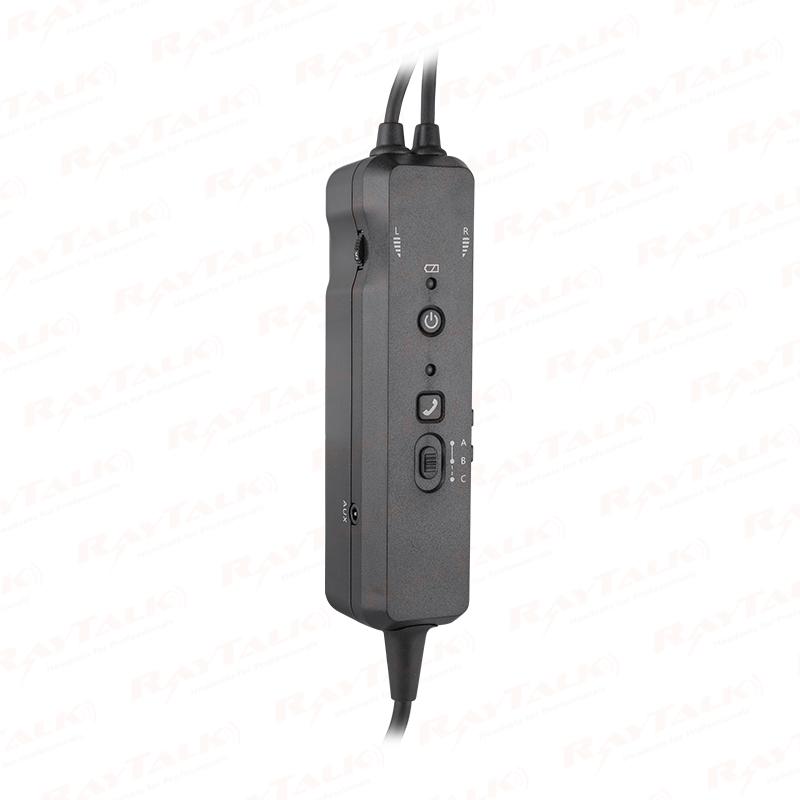

Blue-tooth Control Module aviation pilot headset

aviation pilot headset for general aircraft

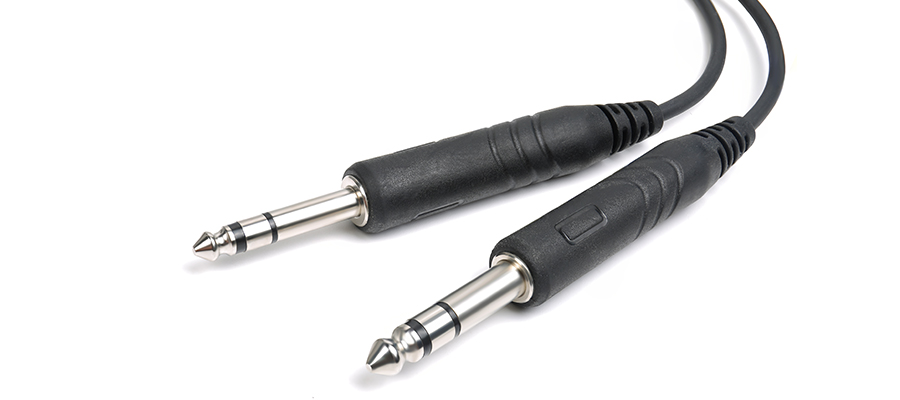

PJ-055 and PJ-068 GA Dual Plugs

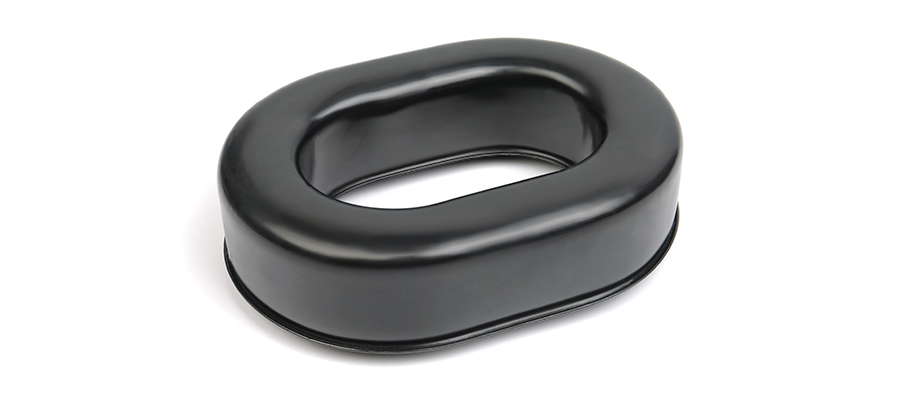

Half Gel half foam Ear Pad general aircraft aviation headset

pilot headset

bluetooth aviation headset

aviation pilot headset

active noise cancelling aviation headset
