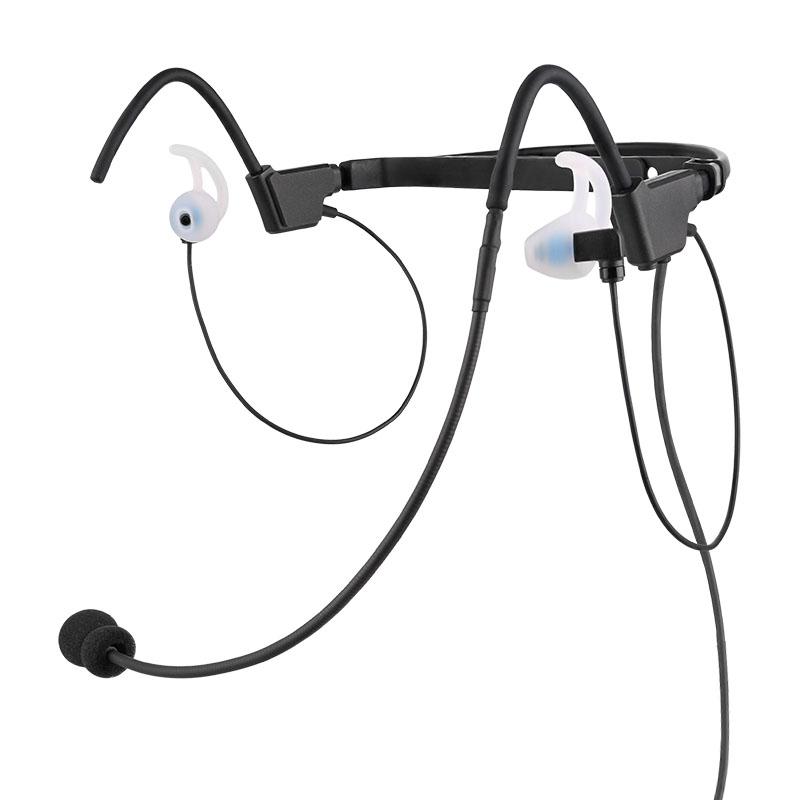

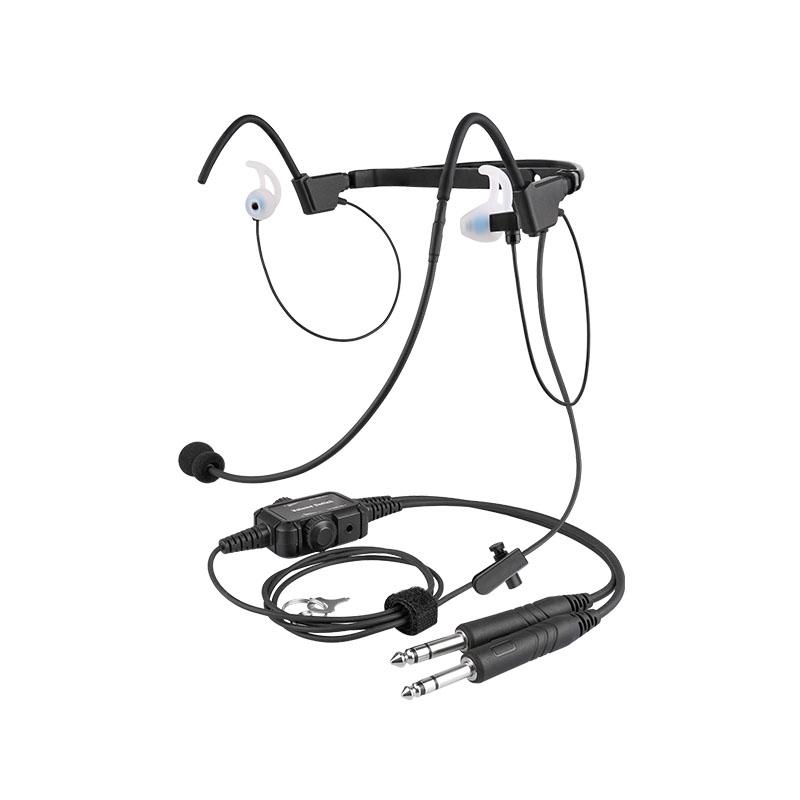

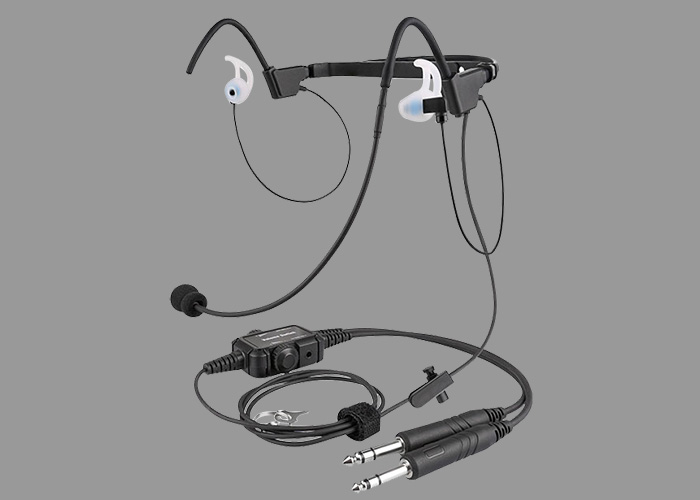

PH-500 ultra lightweight in ear aviation headset general dual plug aviation headset

The PH-500 is a high performance ultra lightweight aviation headset. Using the latest miniature audio transducer technology and a high sensitivity noise cancelling electret microphone, our new design of light weight aviation headset is available today,with amazing weight 150 grams only. This provides you a more comfortable flight experience and helps to reduce your fatigue suffering. All this means you suffer from less fatigue and can enjoy a more pleasurable user experience.

  • Item no.:

    PH-500
  • Color:

    Black
  • Min order:

    10
  • Active Noise Reduction :

    NO
in ear aviation headset

PH-500 ultra lightweight in ear aviation headset general dual plug aviation headset



High performance ultra lightweight,only 150 grams.

Using miniature audio transducer

With high sensitivity noise cancelling electret microphone

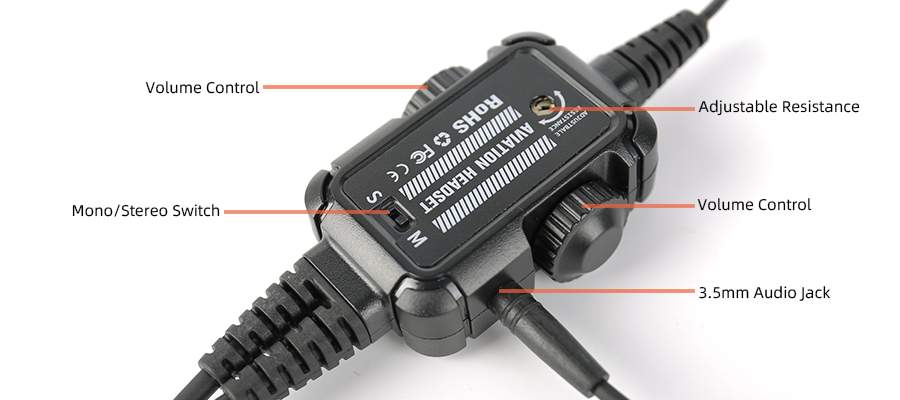

Standard with Mono/Stereo Switch,with 3.5mm Audio Jack and dual volume control knobs on control module

in ear aviation headset

Microphone Specification:

Sensitivity Range

-35± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L

Speaker Specification:

Impedance

30Ω+15%@1KHZ

Sensitivity

120dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W

aviation headset in ear



Behind-the-head

Adjustable Stainless Steel Band

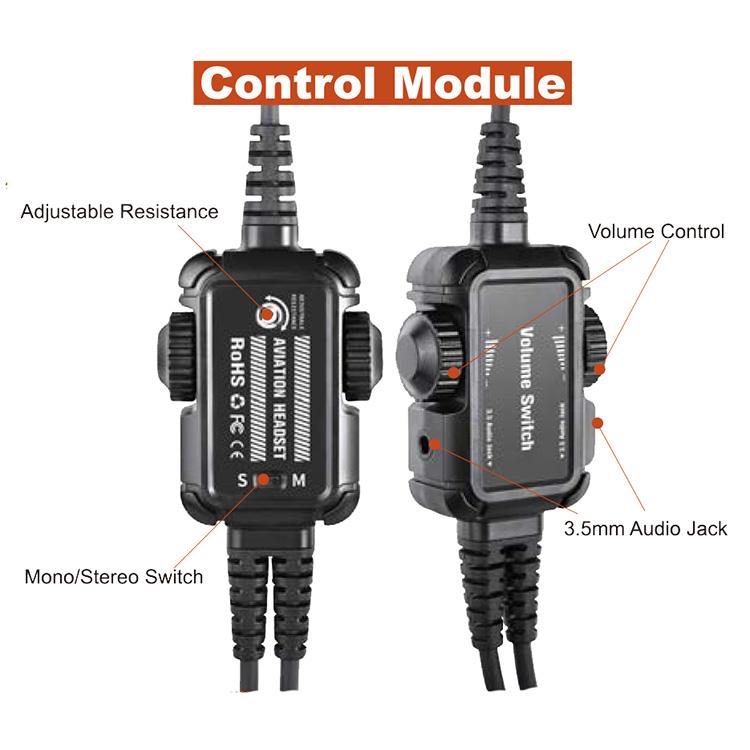

Control Module

aviation headset general


in ear lightweight aviation headset

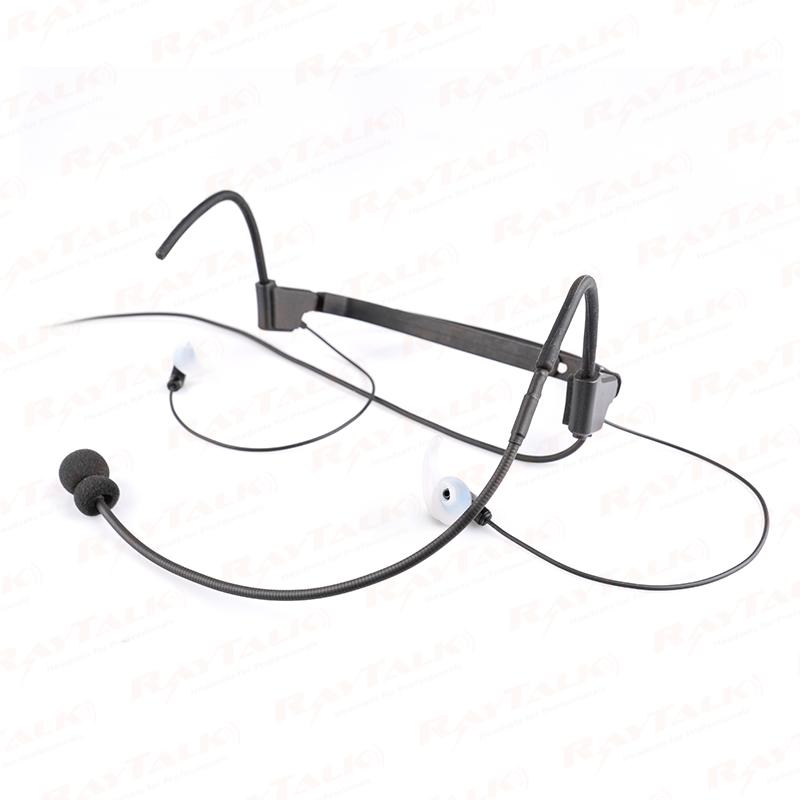

Silicone Earbuds

or

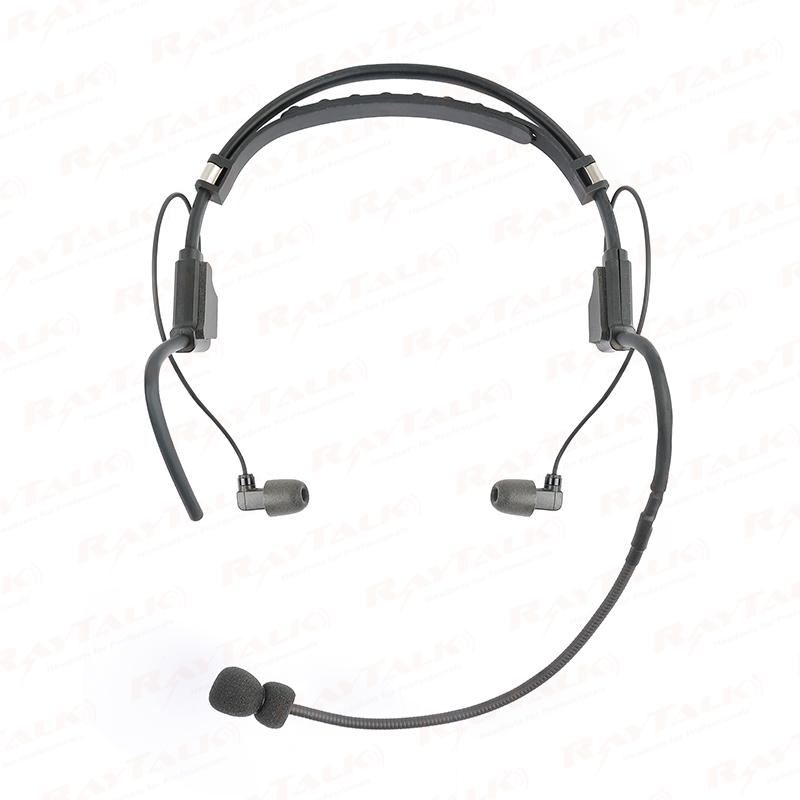

Hygienic foam Ear buds

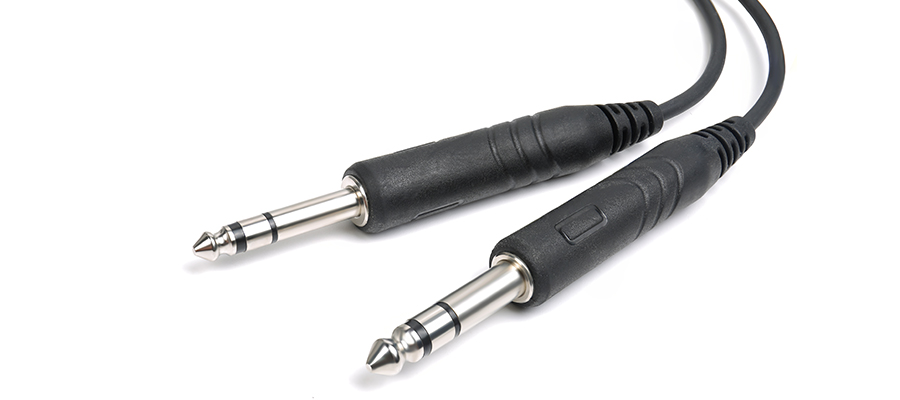

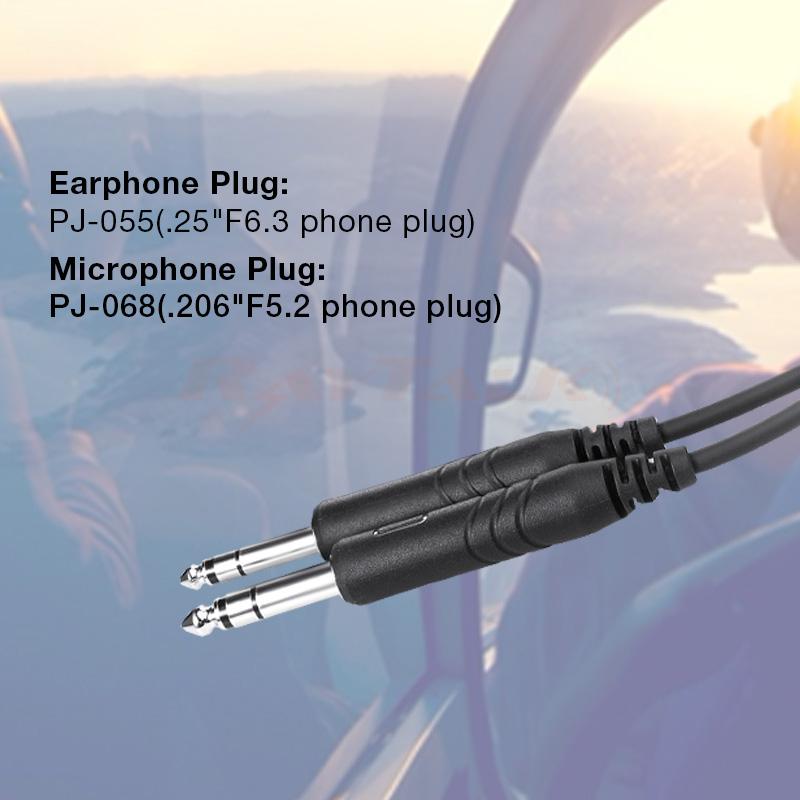

PJ-055 and PJ-068 GA dual plugs

aviation headset dual plug


in ear aviation headset

aviation headset in ear
