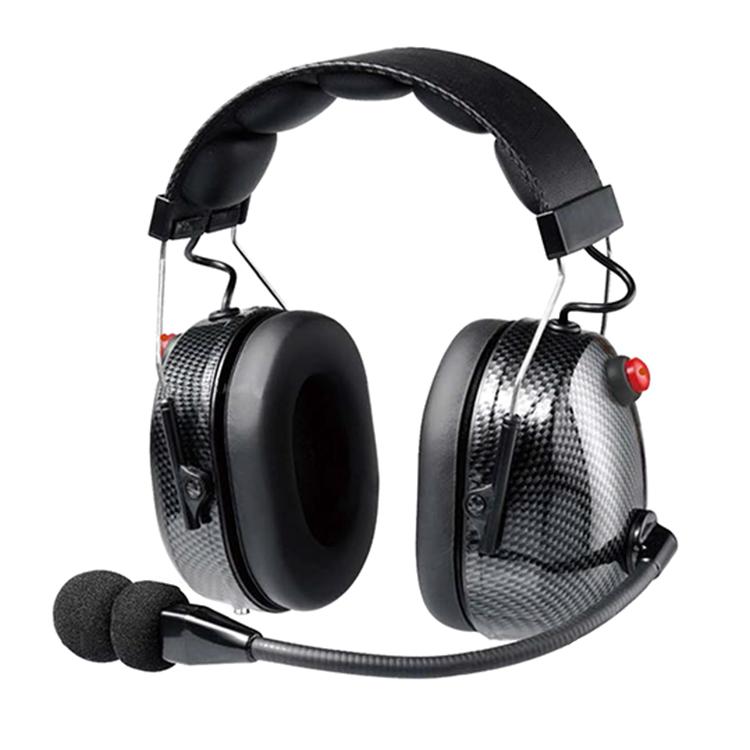

RAN-3000CF/2PTT is a Dual earmuff carbon fiber noise cancelling headset.With 2 x 5 pin XLR connector port, can connect two different radios;Spring wire flex boom noise-cancelling for perfect microphone placement.Deliver enhanced noise reduction, superior voice with noise cancellation, while providing comfort and stability.
Item no.:
RAN-3000CF/2PTTColor:
BlackMin order:
50Active Noise Reduction :
NO
![]() |
RAN-3000CF/2PTT Heavy duty Noise Cancelling Headset with Mic and 2 PTT Button
◆ Dual earmuff carbon fiber noise cancelling headset ◆ Dual muff earphones-seal out ambient sound so you can hear incoming transmissions ◆ Printed carbon fiber ear shells,volume control available ◆ Spring wire flex boom noise-cancelling for perfect microphone placement ◆ With multiple PTTs which connect 2 radios at same time ◆ Auxiliary 3.5mm audio input ◆ Noise Reduction Rating (NRR): 24dB ◆ With 2 x 5 pin XLR connector port, can connect two different radios |
Microphone Specification: |
|
Sensitivity Range |
-47± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
32Ω+15%@1KHZ |
Sensitivity |
94dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
Printed Carbon Fiber |
![]() |
![]() |

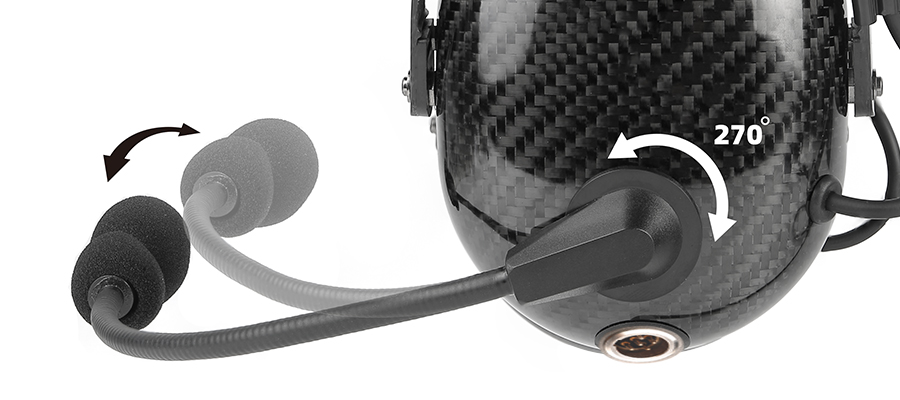

Flexible Boom Noise-cancelling Electret Mic |

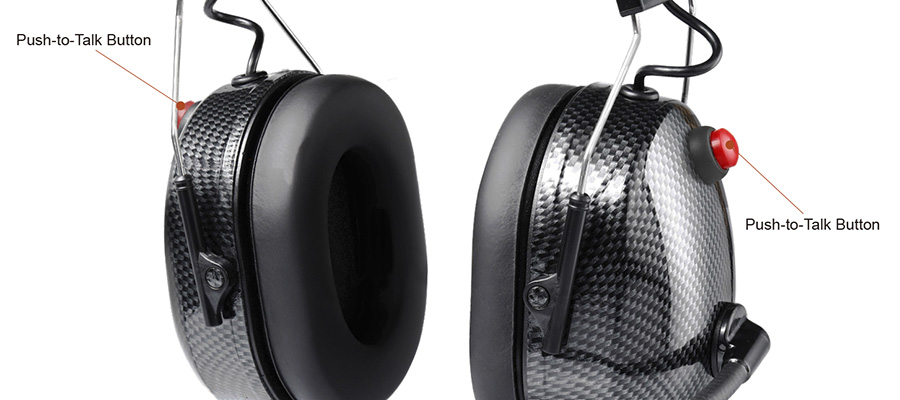

2 Push-to-Talk Button |
![]() |
![]() |

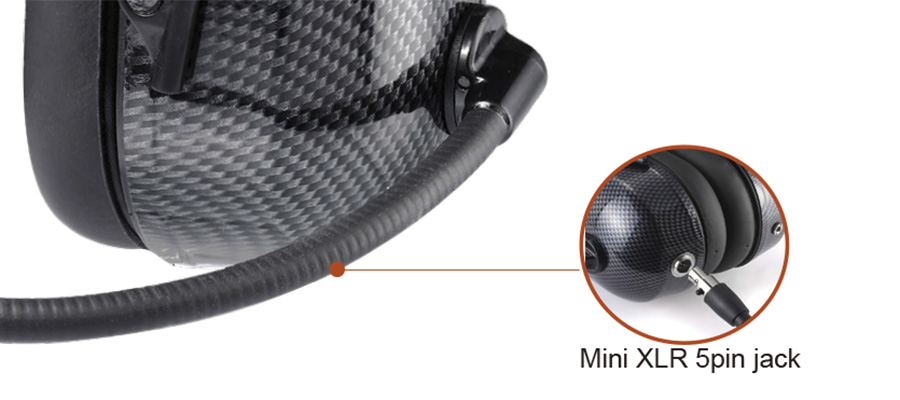

Mini XLR 5 pin jack |
Comfortable Gel Ear Pads |
![]() |
