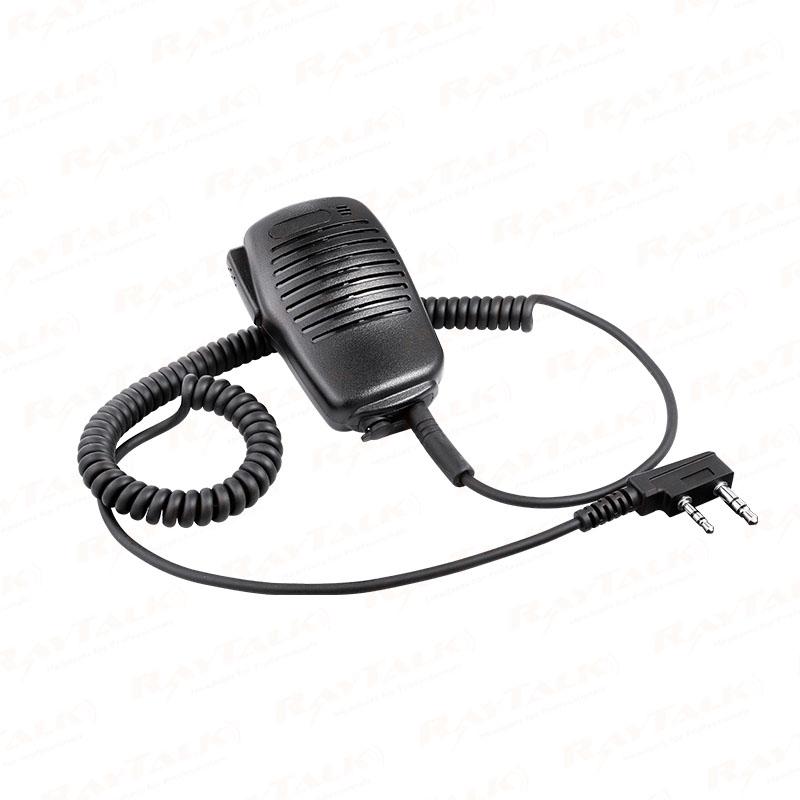

RSM-100A push to talk ptt lapel shoulder microphone walkie talkie remote speaker microphone for two way radio;with a 360° swivel clothing clip. Ideal for light-duty applications such as retail stores, commercial businesses, hotels and resorts.
Item no.:
RSM-100AColor:
BlackMin order:
100
![]() |

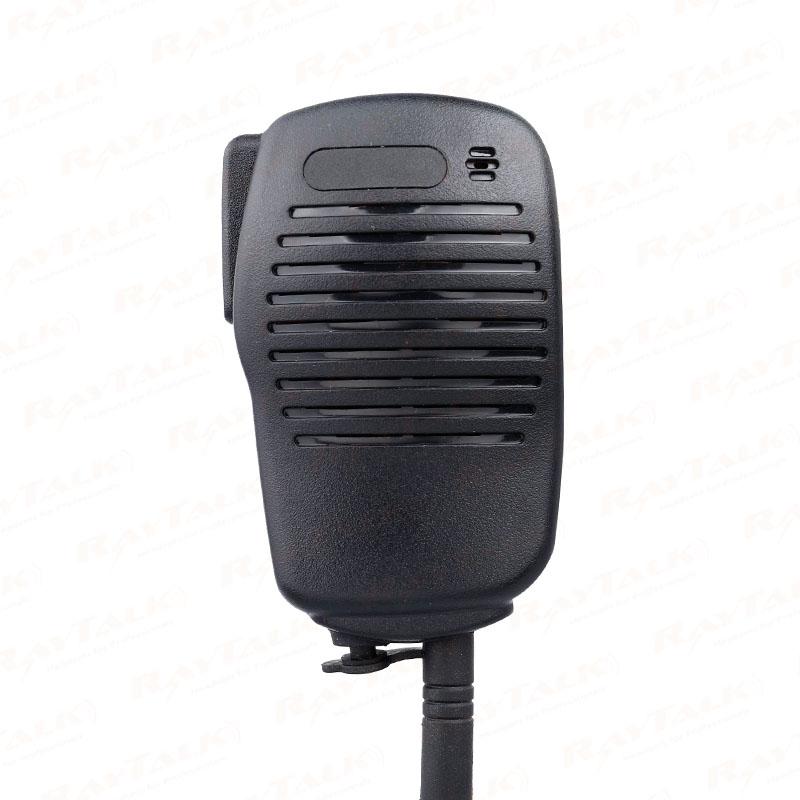

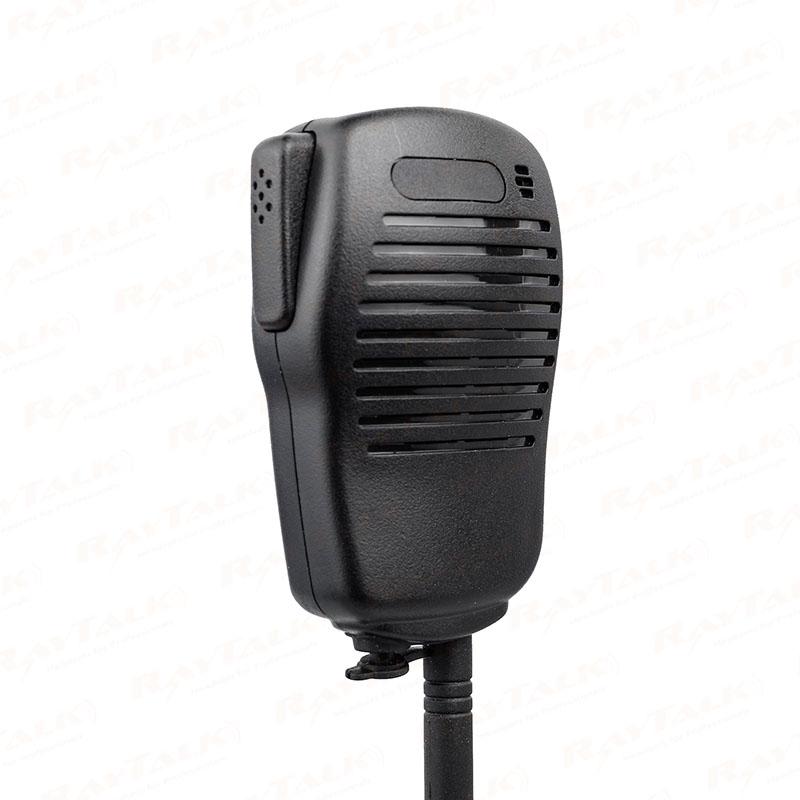

RSM-100A PTT Speaker Mics for Two Way Radio
RSM-100A push to talk ptt lapel shoulder microphone walkie talkie remote speaker microphone for two way radio
Features: Light weight compacts shoulder speaker microphone Great performance of audio sound transmission and reception Strong strain relief for maximum durability Push-to-talk button for sending radio calls High constructed poly carbonate housing |
Microphone Specification: |
|
Sensitivity Range |
-45± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
8 Ω+15%@1KHZ |
Sensitivity |
89dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |
Built in 3.5mm audio port for additional privacy and security
|

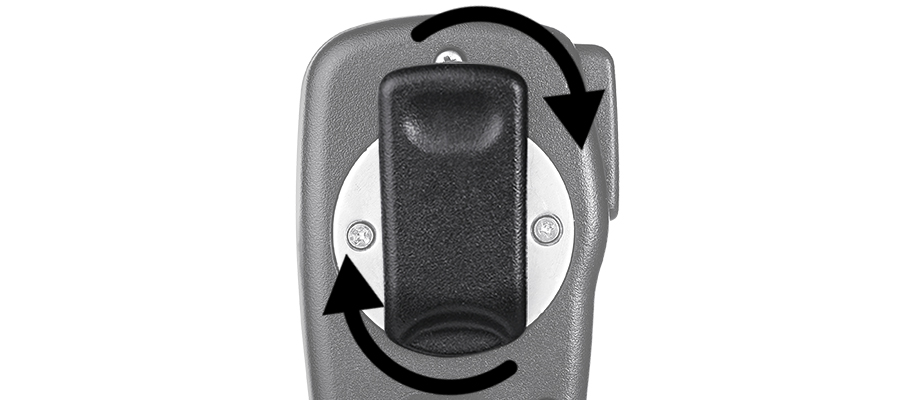

Spring loaded, metal reinforced clothing clip 360 degree rotation
|
![]() |
![]() |

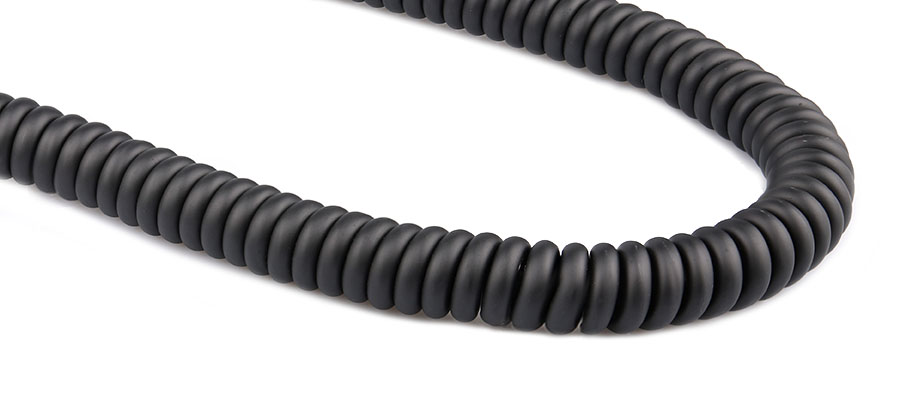

Environmental Polyurethane coil cable reinforced with Kevlar
|
