EM-320140 is a 3-wire adjustable rubber D-ring earpiece for two way radios. The adjustable rubber ear loop works on the right or left ear. It has a high quality brand mic. Profession grade - used by hundreds of law enforcement officers and security users worldwide. It's the ultimate communication solution for the professional user.
Item no.:
EM-320140Color:
BlackMin order:
100
|

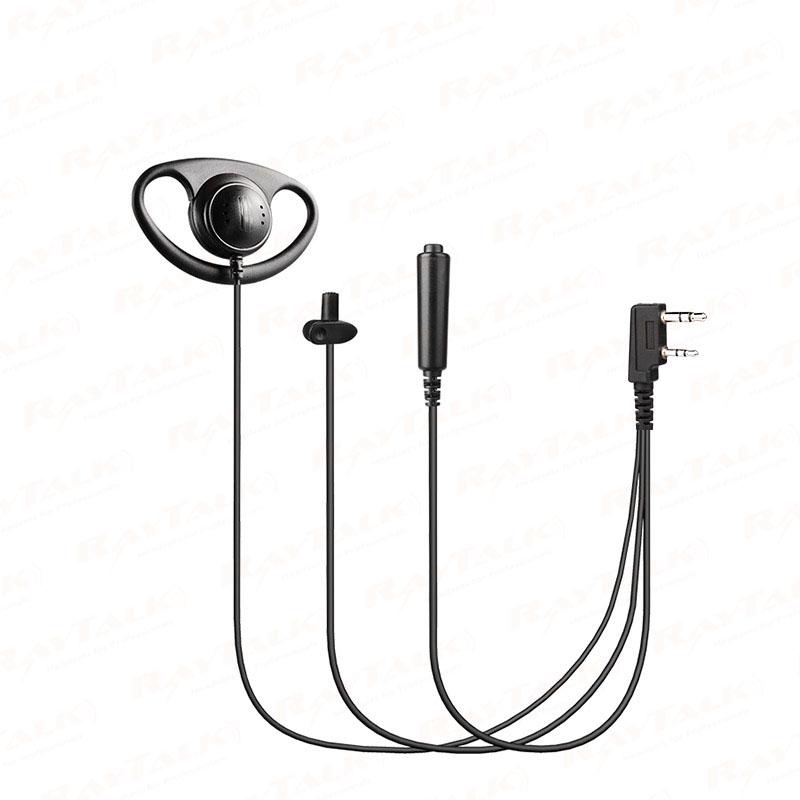

EM-320140 Two way radio 3-Wire Adjustable D-Ring Earpiece with Barrel PTT and Micro lapel Mic
◆Adjustable rubber ear loop,Works on right or left ear ◆Kevlar reinforced cable for greater durability ◆Silent barrel Push-to-Talk (PTT) with clip ◆Designed for high level of discreet communications and nothing but the best will do. |
Microphone Specification: |
|
Sensitivity Range |
-40± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
32Ω+15%@1KHZ |
Sensitivity |
84dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |

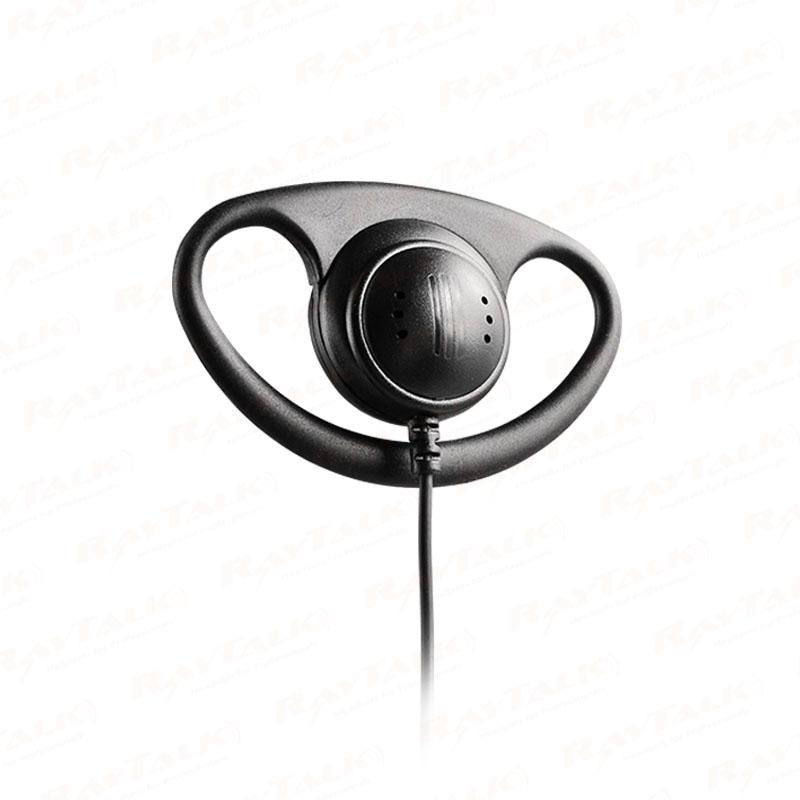

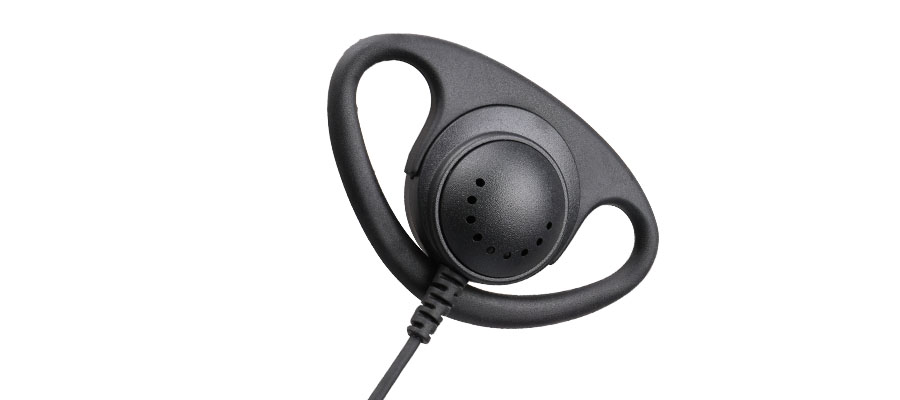

E-32 D shape ear hook earpiece |

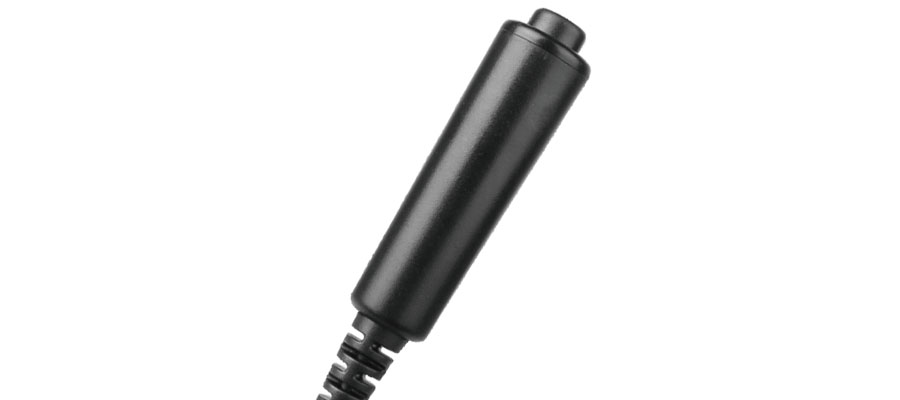

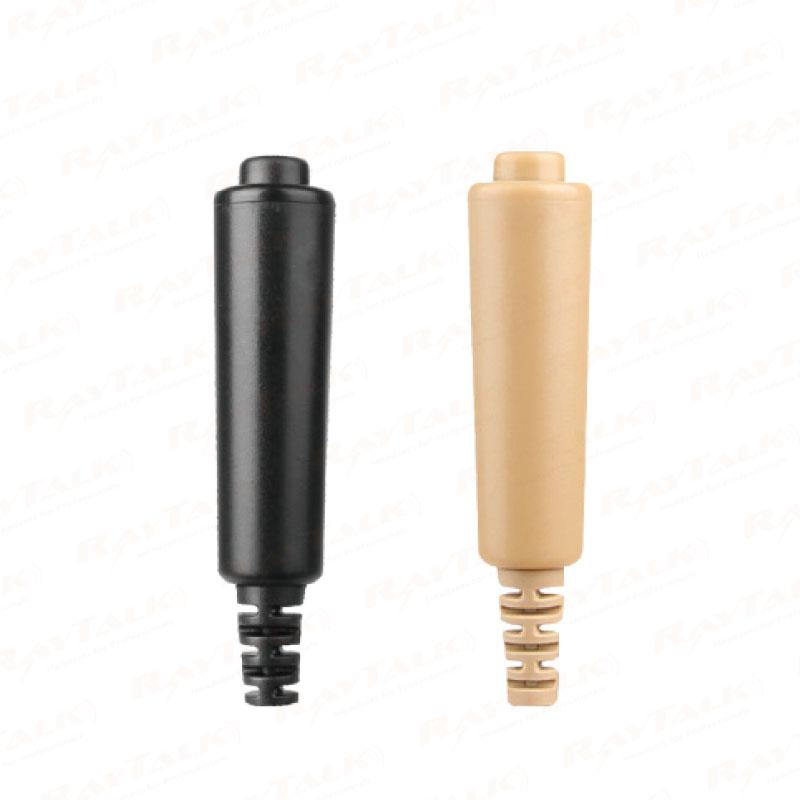

Barrel PTT |
![]() |
![]() |
Kevlar cables for extended life in the fiedl |
