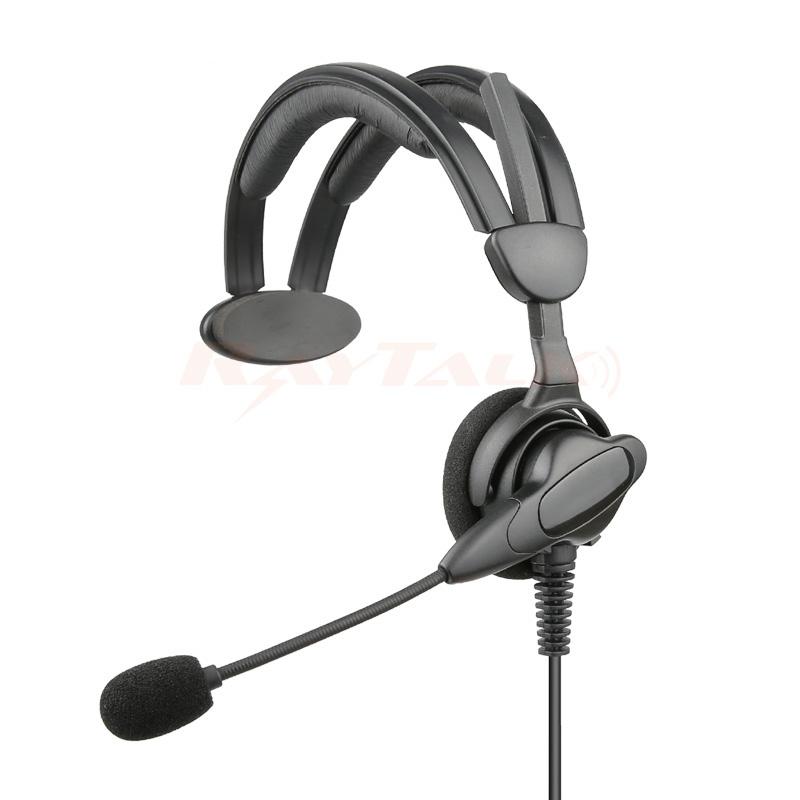

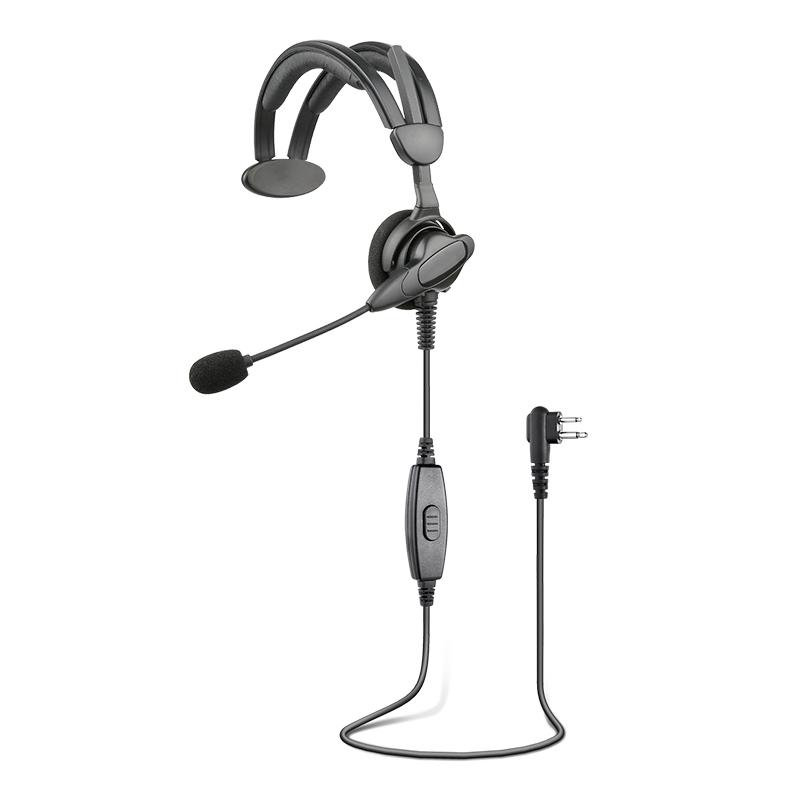

RHS-0536 is a Medium duty Over-the-head Single Ear Headset with Noise cancelling Mic and PTT for two way radios.Features a comfortable over the head design. The boom mic is flexible, and the headset also has a PTT switch and High output Speaker.Designed for use in normal noise environments.You can customized LOGO available.
Item no.:
RHS-0536Color:
BlackGoods stock:
500Min order:
50|
|
RHS-0536 Radio Medium duty Over-the-head Single Ear Headset with Noise cancelling Mic and PTT
◆ Perfect noise reduction function ◆ Comfortable wearing experience with very good voice transmission/receiring ◆ One-sided imitation leather earpiece ◆ Adjustable headset microphone ◆ Flexible signal transfer |
|
Microphone Specification: |
|
|
Sensitivity Range |
-54± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
|
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
|
Frequency |
20-20KHz |
|
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
|
Operation Voltage Range |
2.5-10V (DC |
|
Max Sound pressure Level |
110dB S.P.L |
|
Speaker Specification: |
|
|
Impedance |
16Ω+15%@1KHZ |
|
Sensitivity |
96dB+10%/1Watt 0.5Meter |
|
Resonance freq |
(FO) 680HZ+20% |
|
Frequency respond |
F-5KHZ |
|
Rated input power |
1.0W |
|
Maximum input power |
1.5W |
![]() |

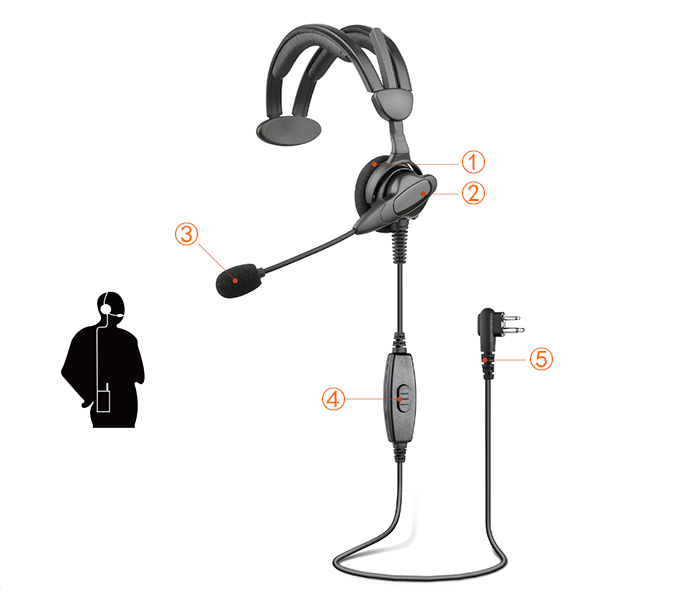

① High Output Speaker ② Customized LOGO acailable ③ Flexible Boom Microphone W/ Replaceable Windscreen ④ PTT button |
