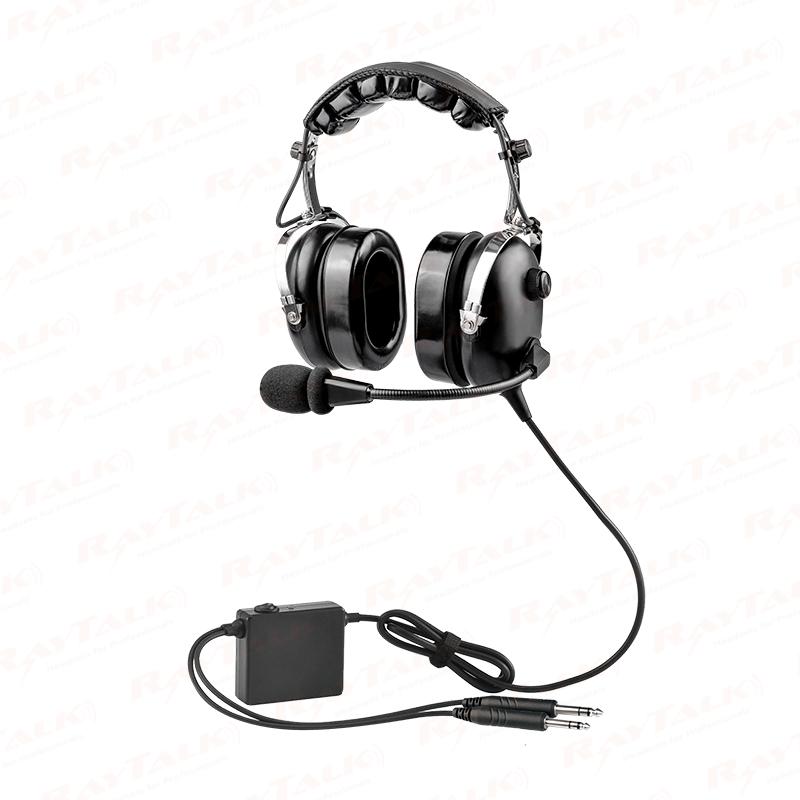

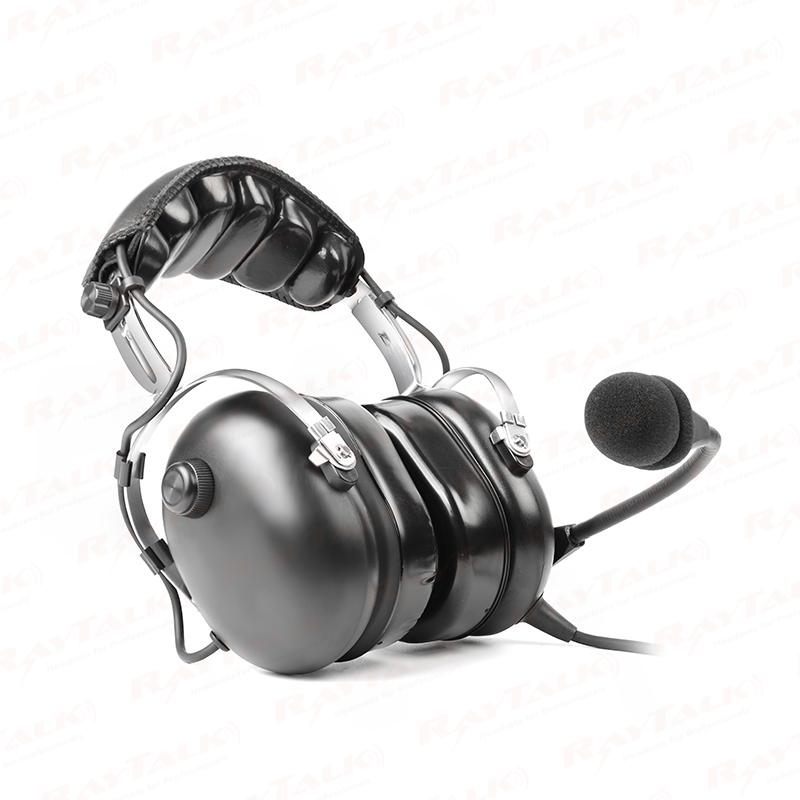

PH-100AC ANR active noise reduction aviation headsets for pilot

PH-100AC ANR aviation headset with Active Noise Reduction, Clear Hear performance audio speakers, dual volume control stereo, and easy access AA battery box with mono switch.

Comfortable half Gel half foam ear seals;Adjustable spring steel headband;Clear Hear ANR audio technology blocking out the background noise;All new designed noise cancelling microphone and wind block foam mic muff.Pilots and flight instructors will enjoy the PH-100AC ANR aviation headset Brought all day comfort.


  • Item no.:

    PH-100AC
  • Color:

    Black,Blue,Yellow,Green,Gray,Pink,Red
  • Min order:

    10
  • Active noise reduction:

    YES

PH-100AC ANR active noise reduction aviation headsets for pilot

Active Noise Reduction Ratings(NRR):29dB.

Passive Noise Reduction Ratings(NRR):23dB.

Small AA battery box with belt clip.(Battery not include).

Standard with S/M Switch,with dual volume control knobs on ear cups.

Comfortable half gel half foam ear pad.

Great audio speaker performance with clear sound.

Noise-canceling electret Microphone, dynamic microphone can be replaced.

Fully adjustable spring steel headband.

3.5mm audio jack for music optional.

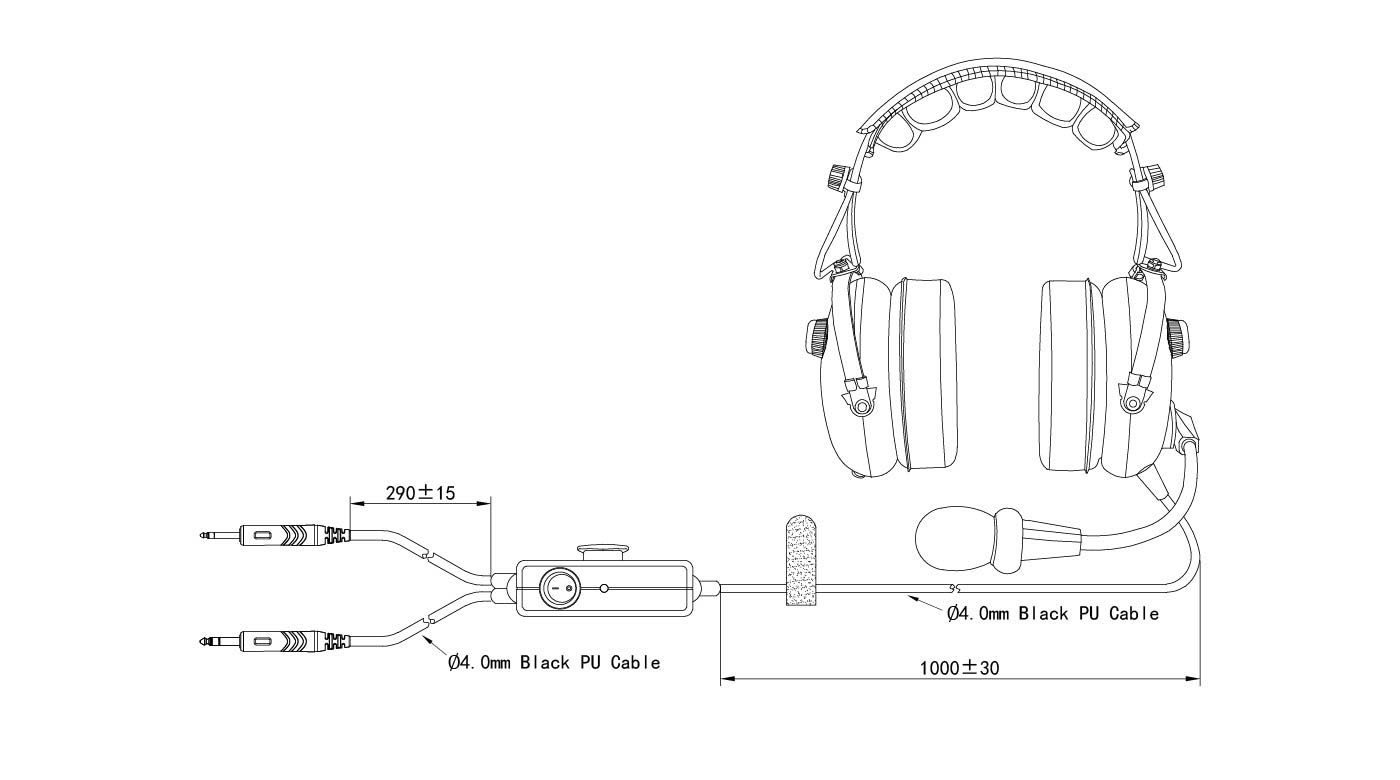

Standard fixed wing plugs - PJ-055 (.25”) earphone plug / PJ-068 (.206”) microphone plug

1year factory warranty

anr headset

Microphone Specification:

Sensitivity Range

-52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L

Speaker Specification:

Impedance

45Ω+15%@1KHZ

Sensitivity

95dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W

aviation anr headset

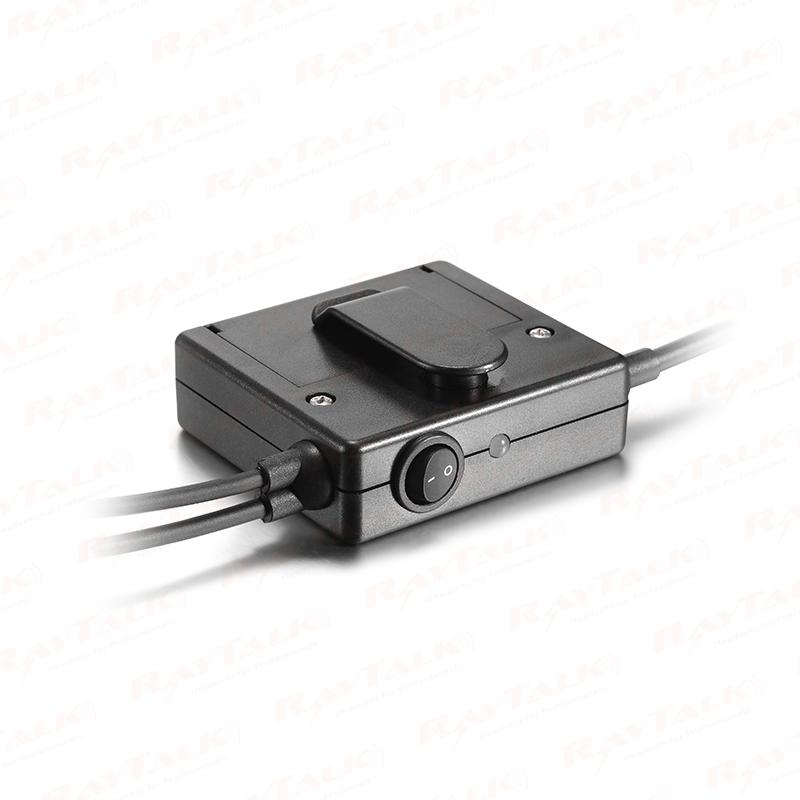

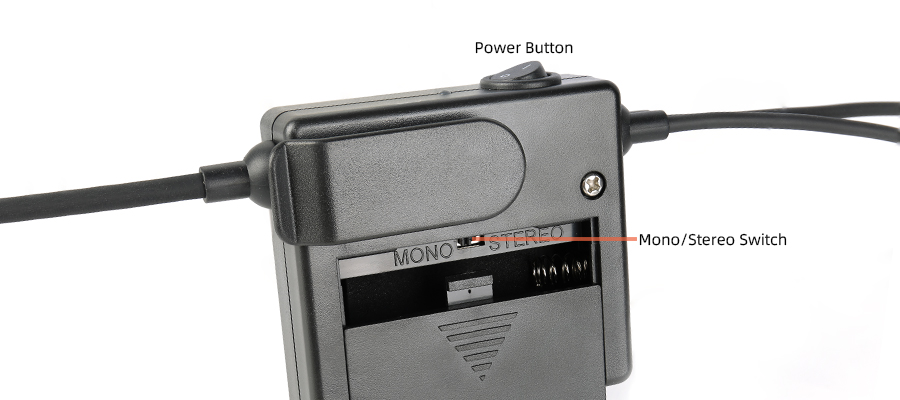

Battery Box With S/M Switch

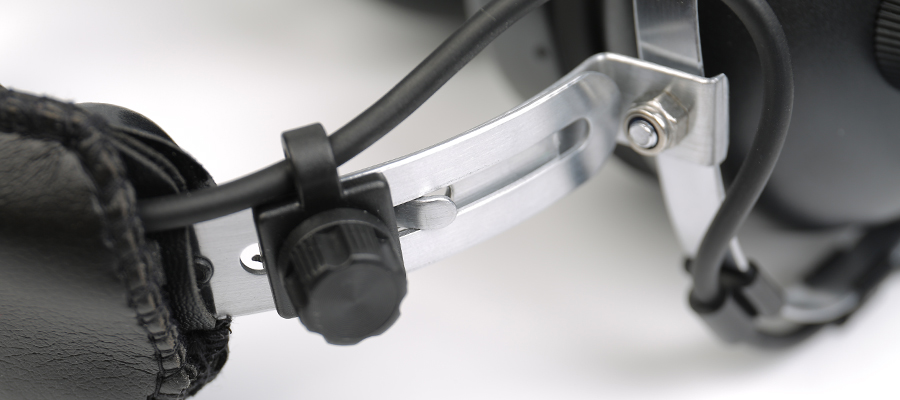

Over-the- head Stainless Steel Adjustable Band anr headset for pilot

pilot anr headset

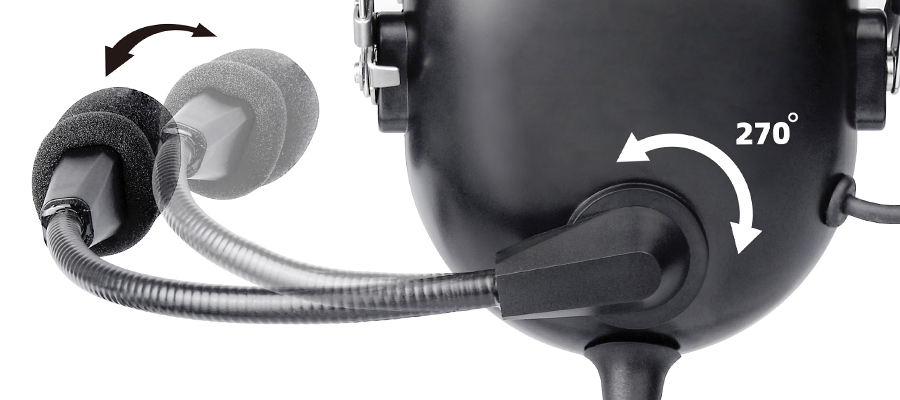

270 Degree Rotatable Flexible Boom

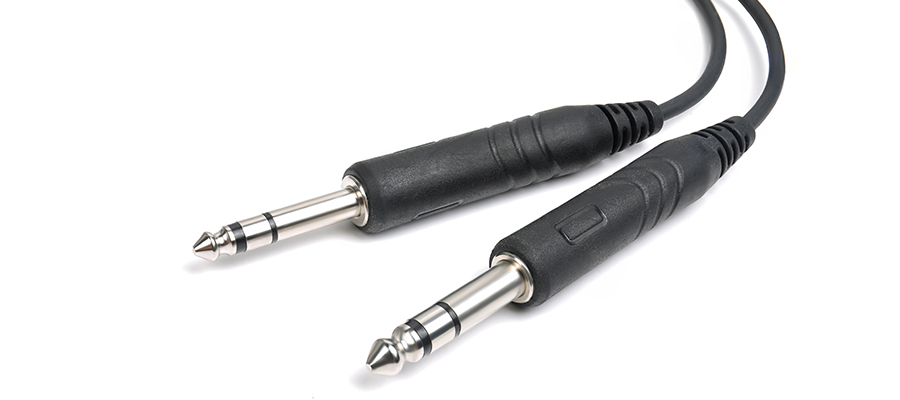

PJ-055 and PG-068 GA use dual plugs active noise reduction aviation headsets

pilot aviation headset

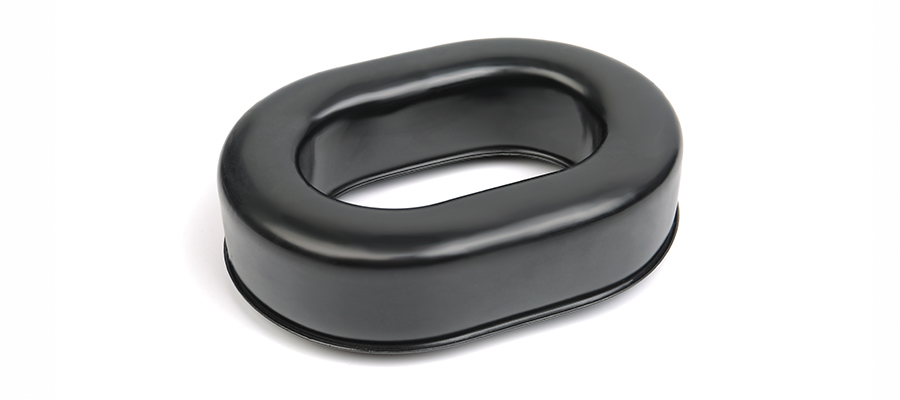

Comfortable

half gel half foam ear pad


anr headset

aviation anr headset

pilot anr headset

pilot aviation headset
