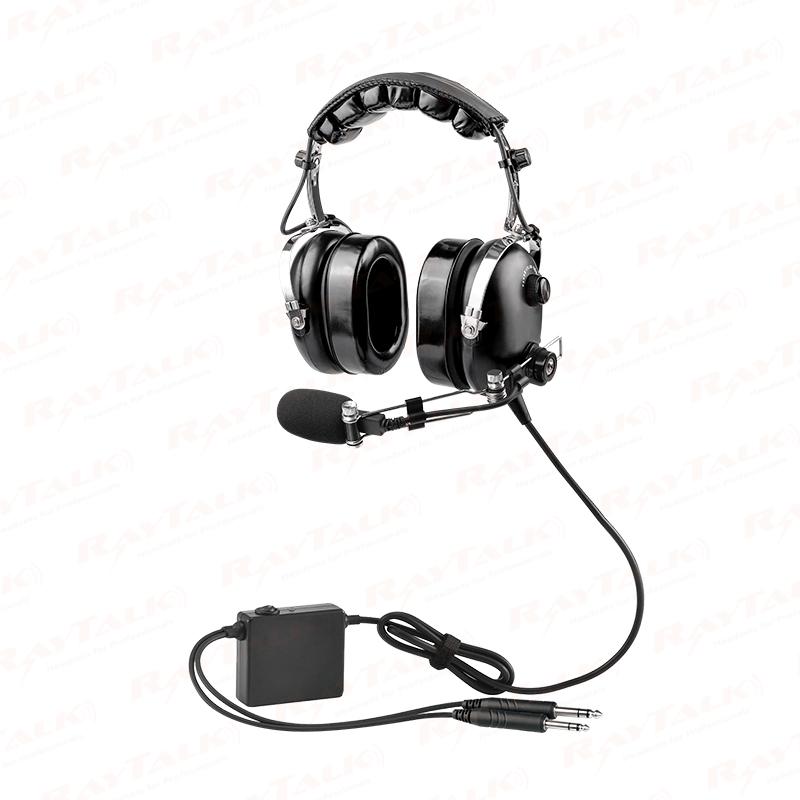

PH-100C pilot general ANR headsets noise reduction aviation headset

PH-100C ANR headset is a remarkable aviation headset.Have Hearing protection and crystal clear communications and unsurpassed comfort.


A single 9V battery enhances the headset's passive Noise Reduction Rating (NRR) of 23 dB by an addition low-frequency electronic noise attenuation. The battery delivers up to 25 hours of reliable ANR noise suppression, and the unit boasts a user-selectable Auto Shut-off feature to prevent against inadvertent battery usage.


With a super soft foam headpad and its trademark undercut half gel half foam ear seals for unequaled all-day comfort. The unit's electret noise-canceling mic delivers crisp, clear transmissions without background noise, and the stereo phones are ideal for in-flight audio entertainment.

  • Item no.:

    PH-100C
  • Color:

    Black,Blue,Yellow,Green,Gray,Pink,Red
  • Min order:

    10
  • Active noise reduction:

    YES

anr aviation headset

PH-100C pilot general ANR headsets noise reduction aviation headset


Fully adjustable spring steel headband,Adjustable Metal Boom with 360 Degree Rotational

GA Dual plugs.PJ-055(.25"F6.3 earphone plug) and PJ-068(.206"F5.2 Microphone plug).

Active Noise Reduction Ratings(NRR):29dB.

Passive Noise Reduction Ratings(NRR):23dB.

Small AA battery box with belt clip.(Battery not include)

Standard with S/M Switch,with dual volume control knobs on ear cups

Noise-canceling electret Microphone, dynamic microphone can be replaced.

3.5mm audio jack for music optional.

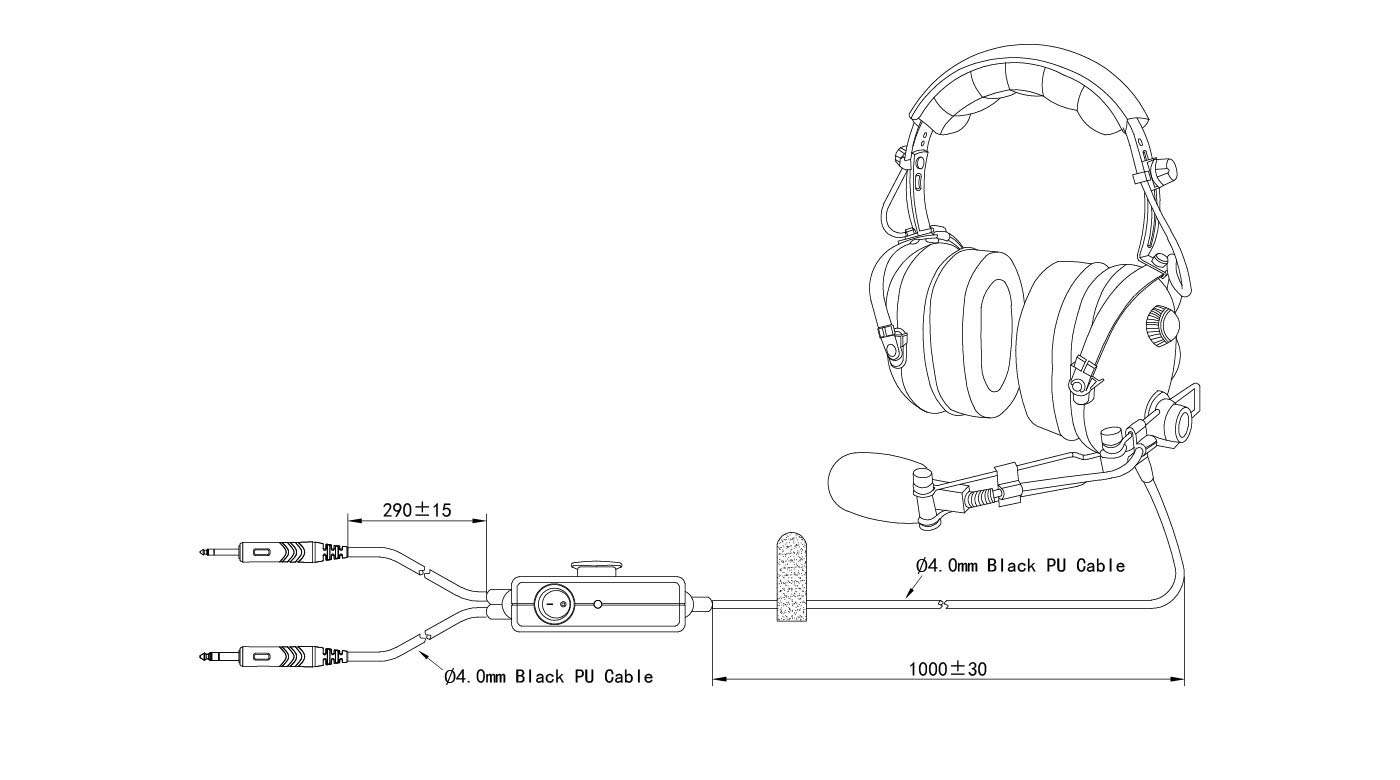

Straight cord from headset to molded plug, 150CM.

Colors:Black, Blue, Yellow, Green, Gray, Pink, Red.

anr aviation headset

Microphone Specification:

Sensitivity Range

-52± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz

Impedance Max

2.2K2 1kHz (RL=2.2KΩ)

Frequency

20-20KHz

Current Consumption Max

VS=2.0V RL=2.2KΩ MAX: 500 μA

Operation Voltage Range

2.5-10V (DC

Max Sound pressure Level

110dB S.P.L

Speaker Specification:

Impedance

45Ω+15%@1KHZ

Sensitivity

95dB+10%/1Watt 0.5Meter

Resonance freq

(FO) 680HZ+20%

Frequency respond

F-5KHZ

Rated input power

1.0W

Maximum input power

1.5W

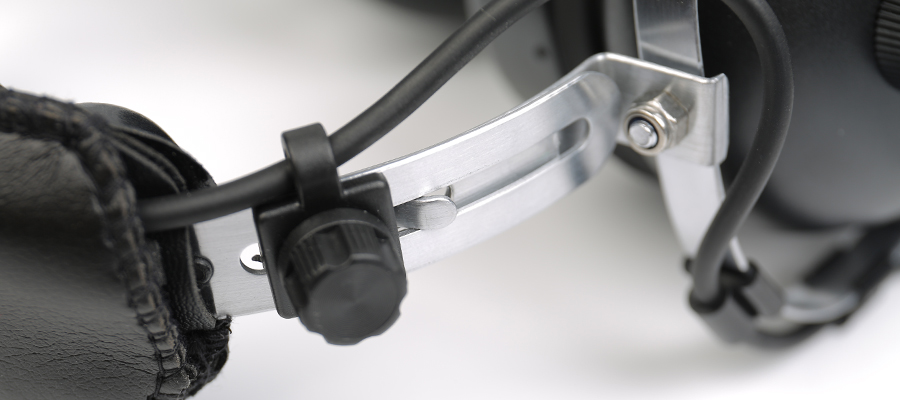

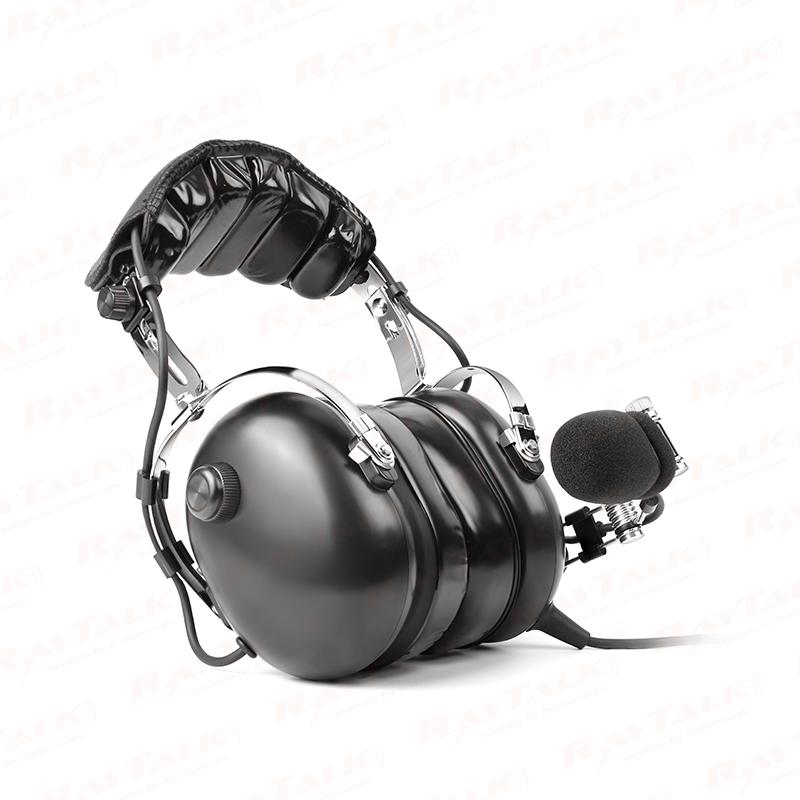

Over-the-head Stainless Steel Adjustable Band noise reduction aviation headset

aviation headset pilot

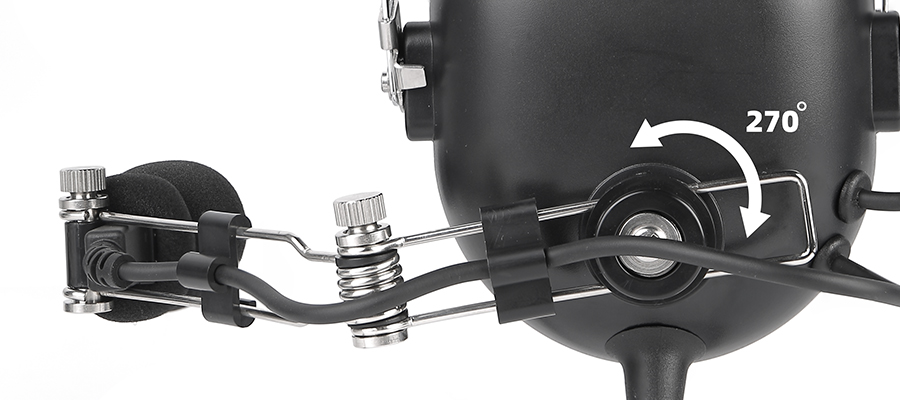

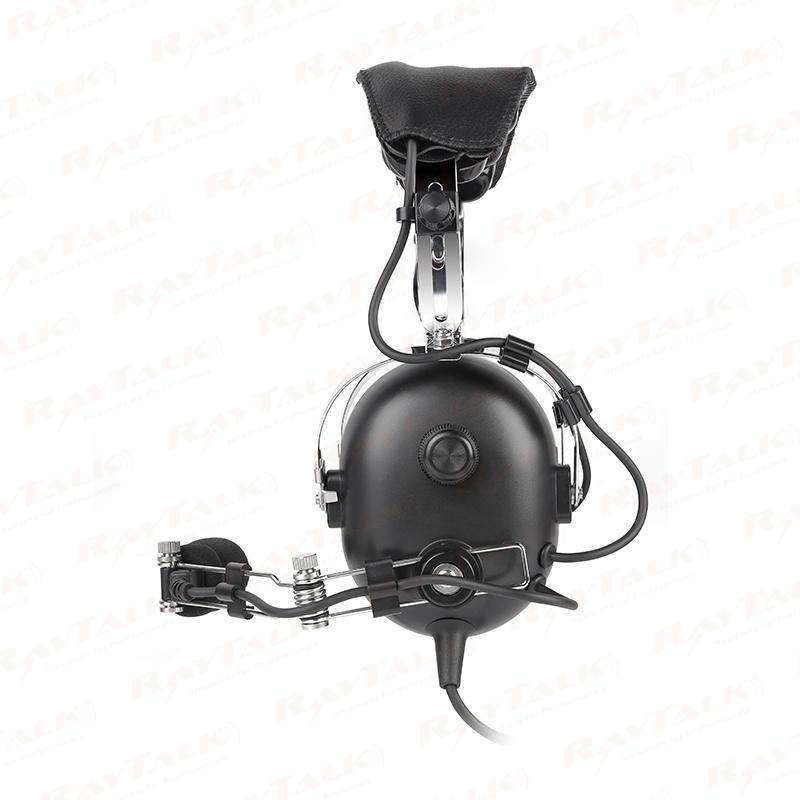

270 Degree Rotatable

Metal Boom Arm

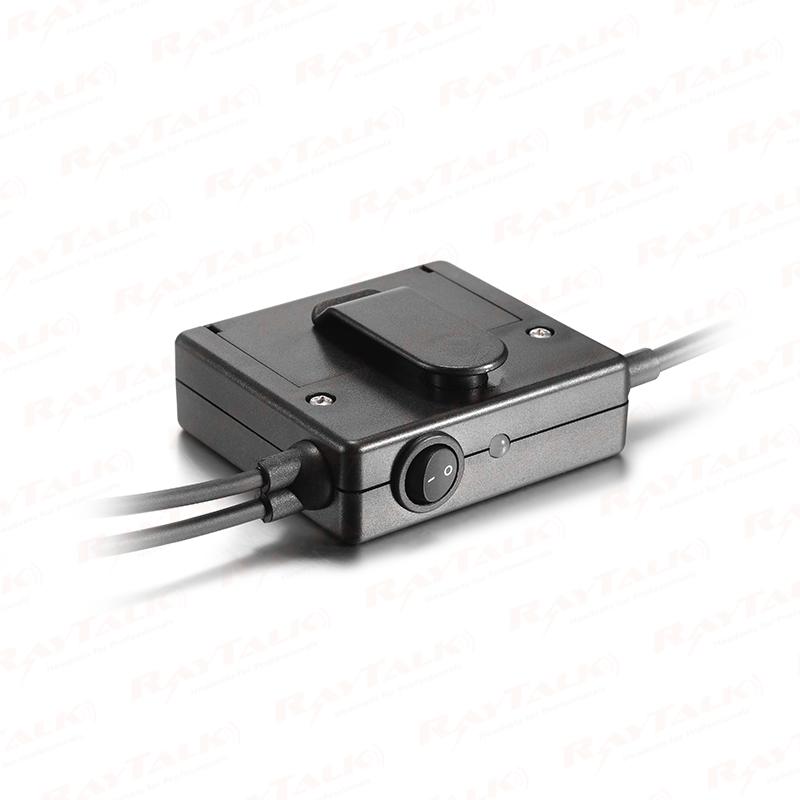

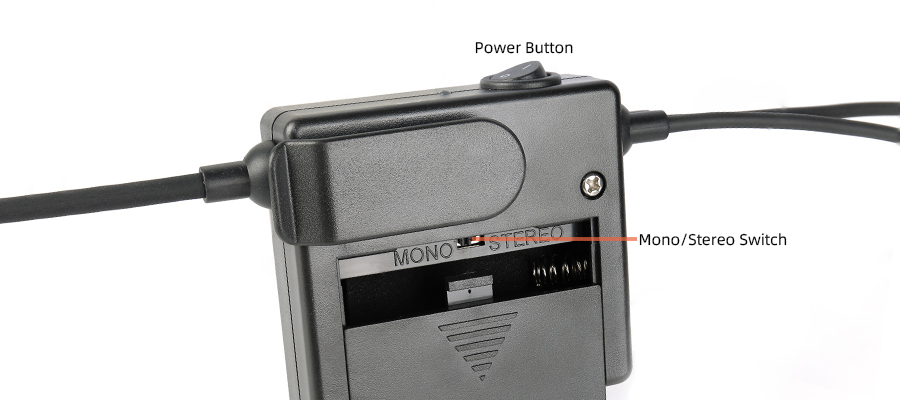

Battery box with S/M Switch

(Not include batteries)

general aviation pilot headset

aviation headset anr pilot

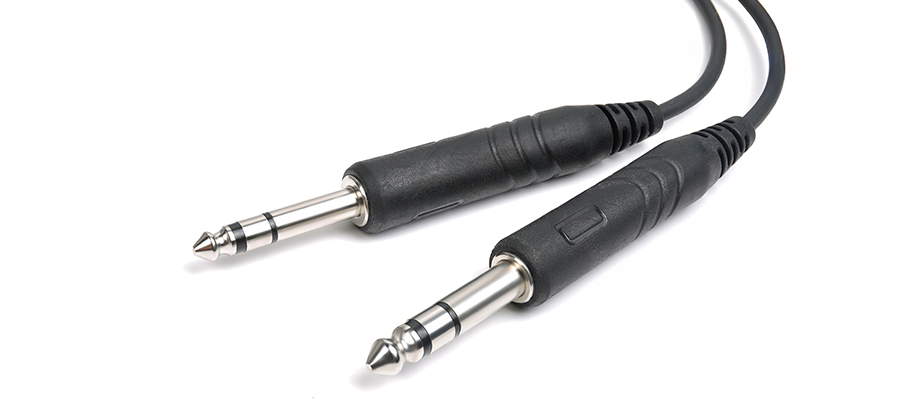

PJ-055 and PJ-068 GA Dual Plugs

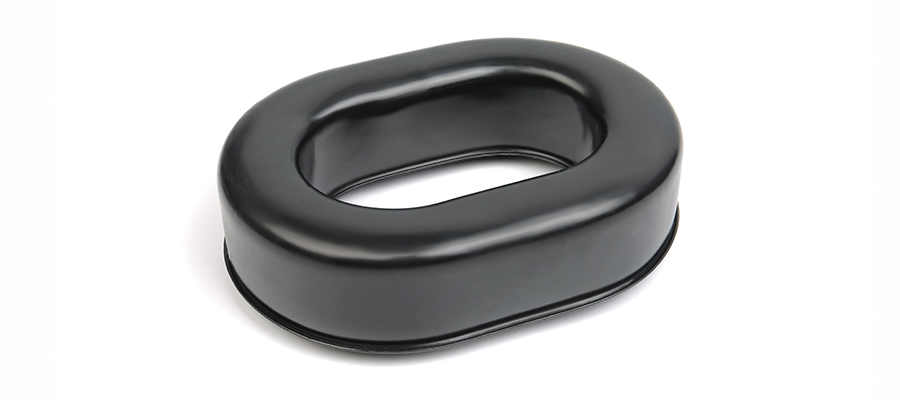

Half Gel half foam Ear Pad anr pilot headset

anr aviation headset

noise reduction aviation headset

aviation headset pilot

general aviation pilot headset
