EM-2027AN Ear Hook - Braided Fiber Cloth - 1 Wire: A straight through in-line with PTT microphone/mircophone with added shielding.
provides a solution to the discomfort associated with wearing any earpiece over a long period of time by allowing the user to wear the Ear Hook on either ear. Our high quality microphone ensures crystal clear communications.
Portable radio users rely on dependable, easy to use, and cost effective solutions for their audio accessories. We offer a variety of options to meet your individual needs
Item no.:
EM-2027ANColor:
BlackMin order:
100
![]() |

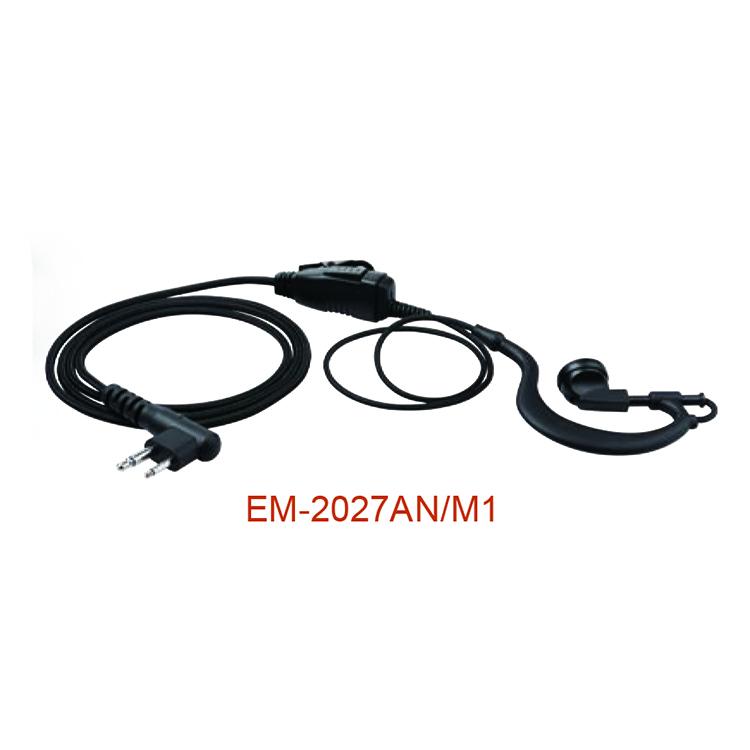

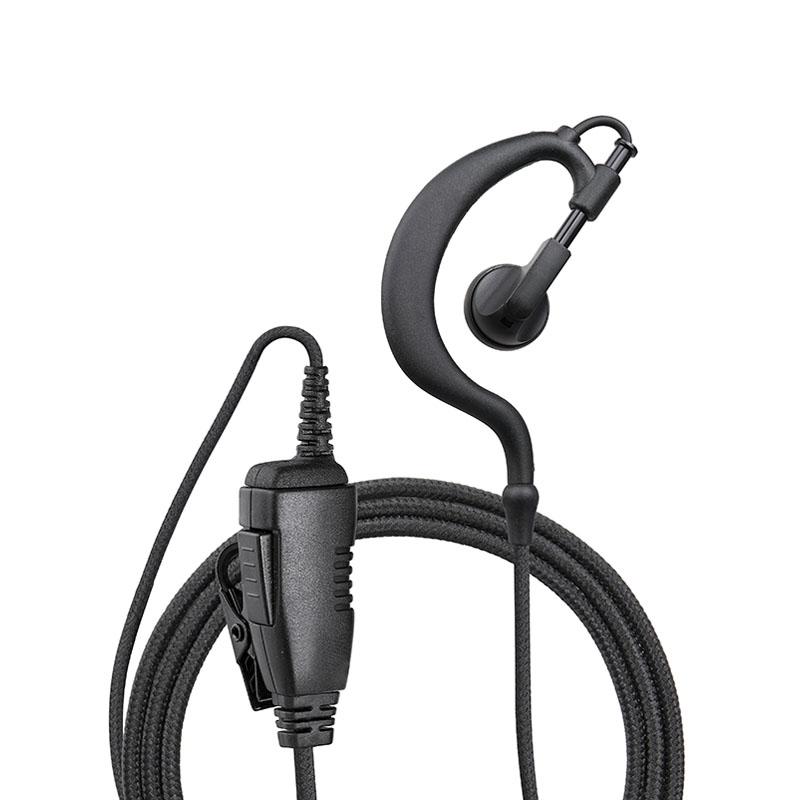

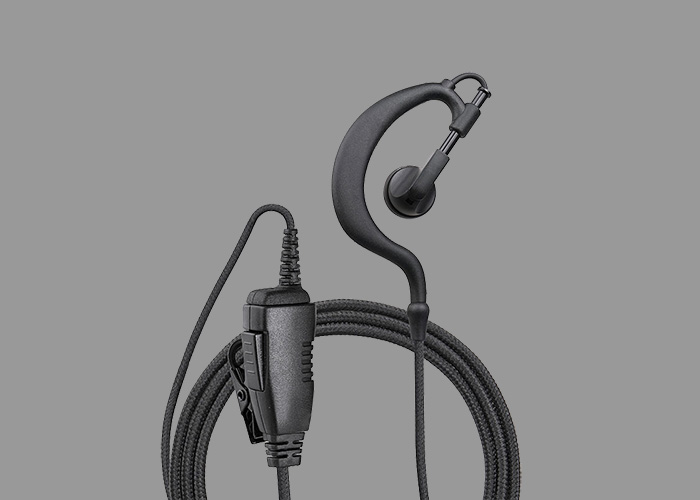

EM-2027AN 1 Wire Ear Hook earpiece w/ Braided Fiber Cloth inline PTT/Mic

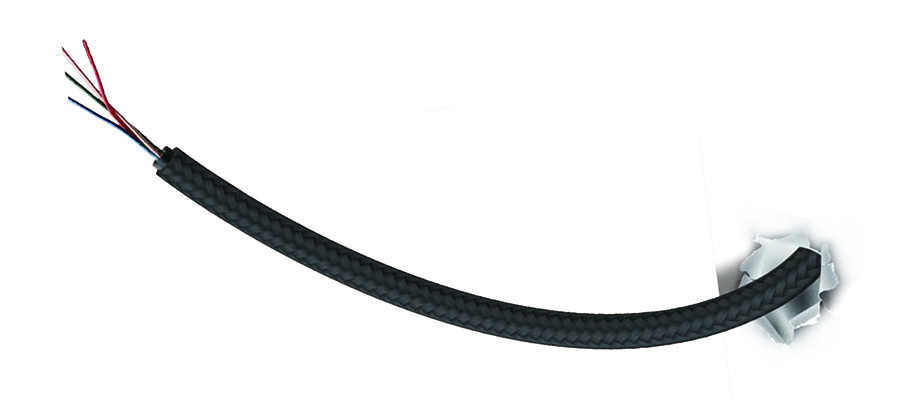

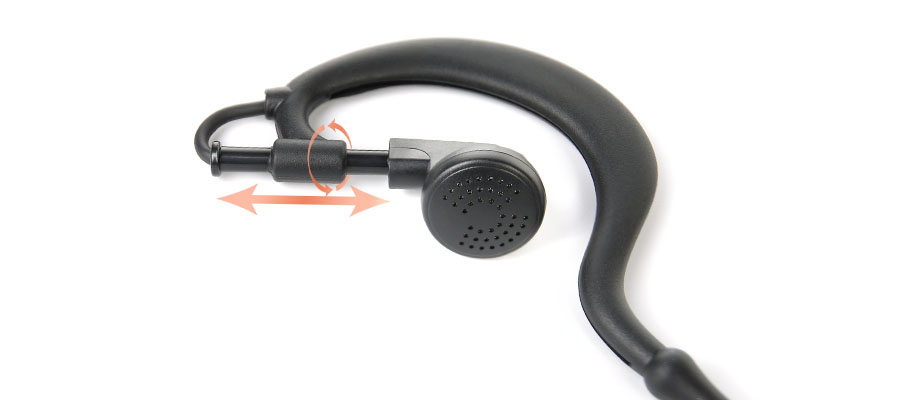

◆ Braided nylon design minimizes tangling and prevents kinking with enhanced comfort ◆ Improves cable durability with less cracking and tearing ◆ Protects wiring from force and friction ◆ Ear Bud rotates 360 degrees for improved fit ◆ Ear Bud adjusts vertically for improved fit ◆ Molded stress relief at connector |
Microphone Specification: |
|
Sensitivity Range |
-36± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
32Ω+15%@1KHZ |
Sensitivity |
110dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |
E-20 G shape adjustable
ear hook earpiece |

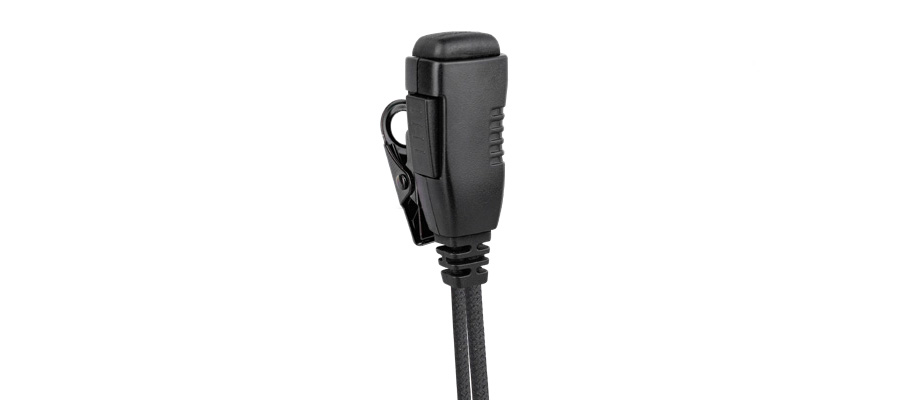

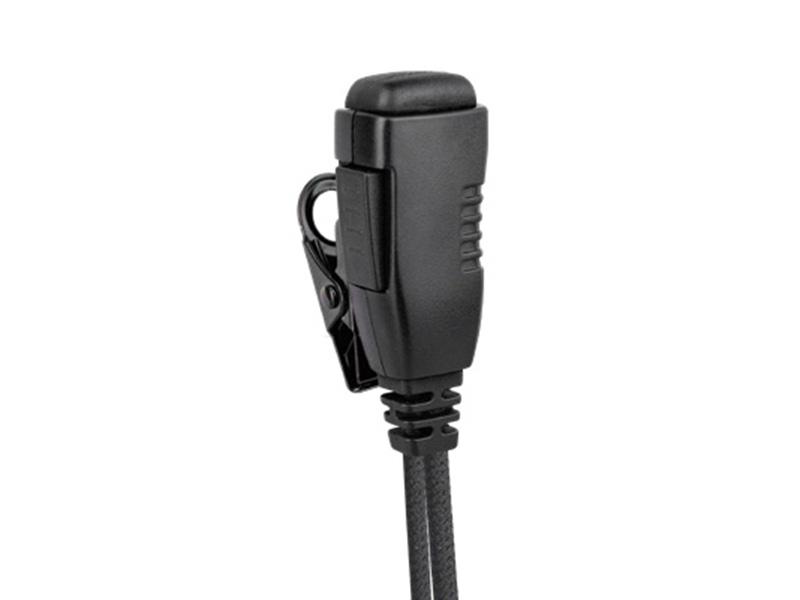

PTT #27 Palm lapel PTT with microphone & metal clip |
![]() |
![]() |

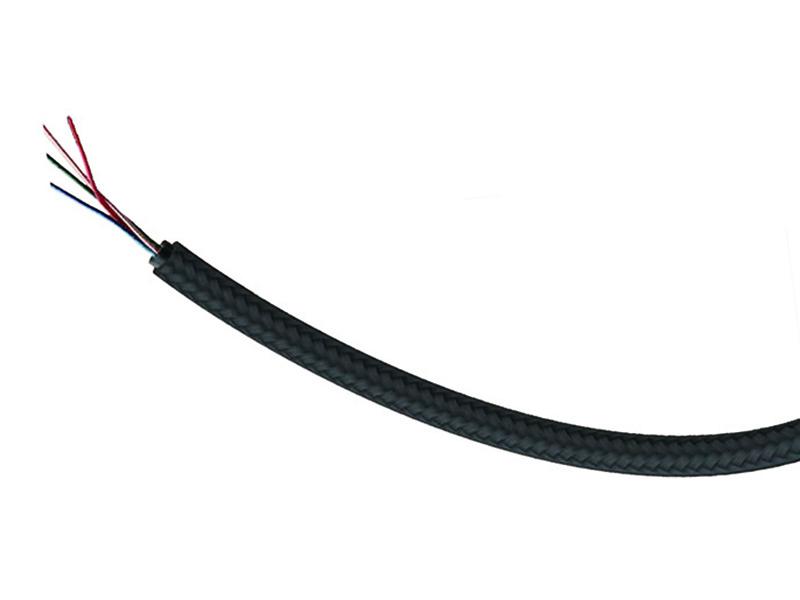

Braided nylon design prevents tangling kinking |
