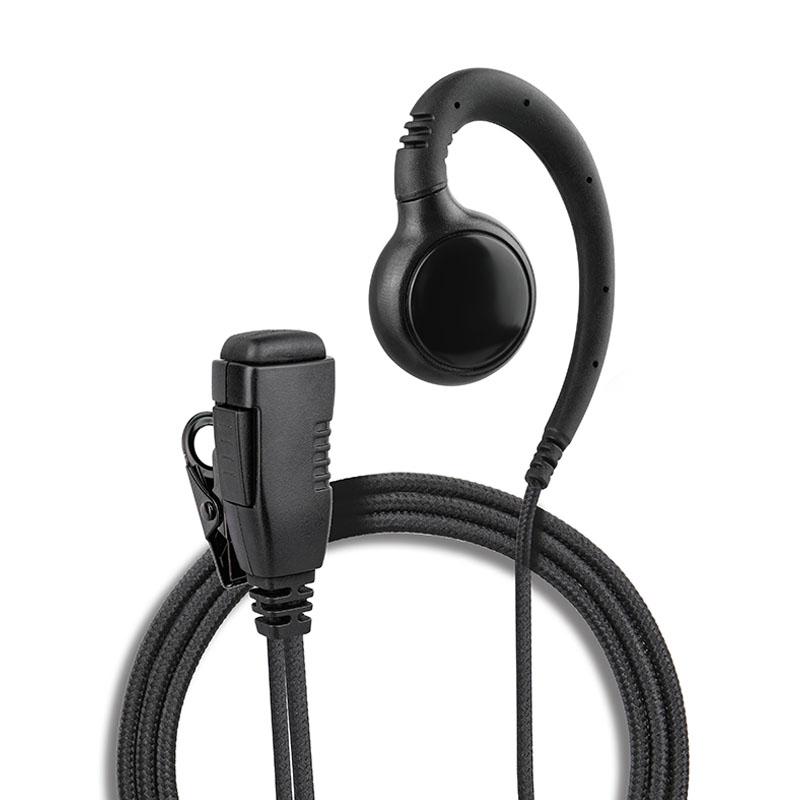

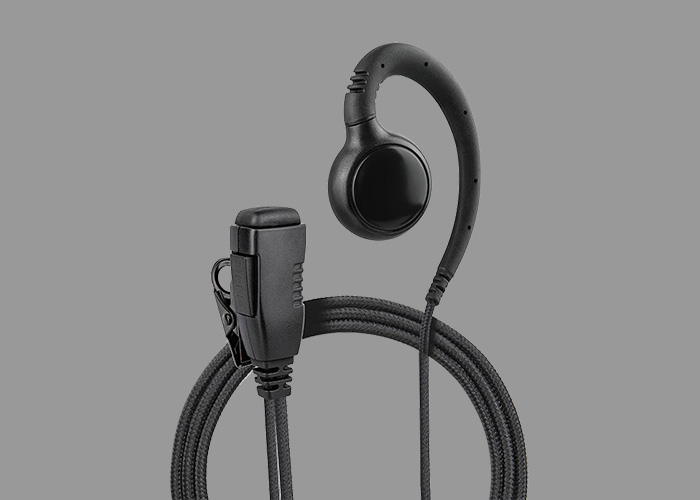

EM-3327N Braided Fiber Cloth C shape Swivel earpiece in-line PTT with RF-shielded microphone.provides a solution to the discomfort associated with wearing any earpiece over a long period of time by allowing the user to wear the C-shape Swivel earpeice on either ear.
Our high quality microphone ensures crystal clear communications.
Item no.:
EM-3327NColor:
BlackMin order:
100
![]() |
EM-3327N Braided Fiber Cloth 1 Wire Swivel earpiece with inline PTT/Mic for radio
◆ Increased Strength and Durability ◆ Tangle-free and Enhanced Comfort ◆ Hear-through earpiece offers increased hygiene for multi- users ◆ Specialized cable for flexibility in various temperature environments ◆ Molded stress relief at connector ◆ Connectors available for most radio models |
Microphone Specification: |
|
Sensitivity Range |
-36± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
150Ω+15%@1KHZ |
Sensitivity |
95dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |

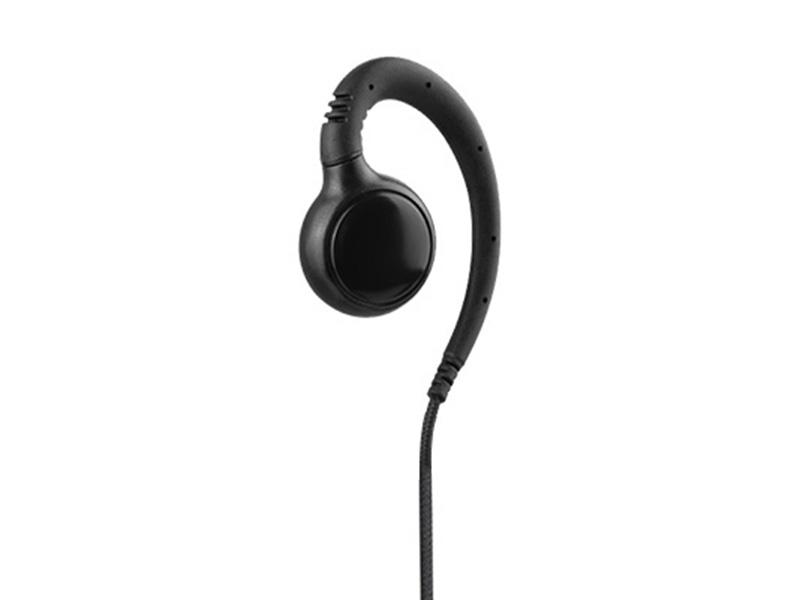

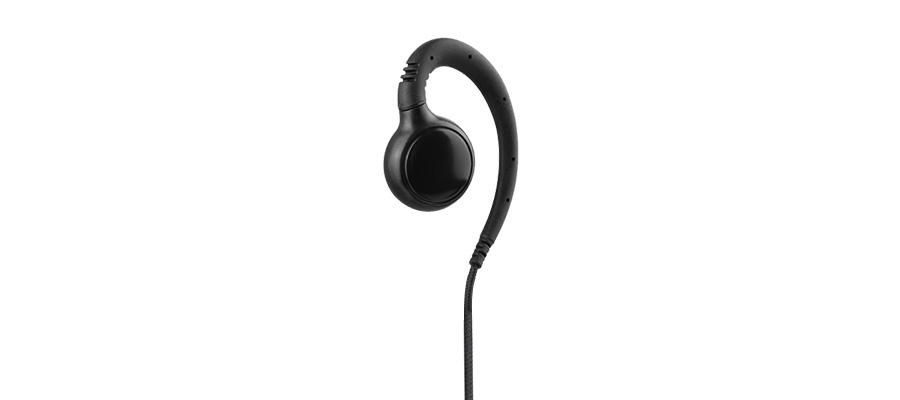

E-33 C shape adjustable
ear hook earpiece |

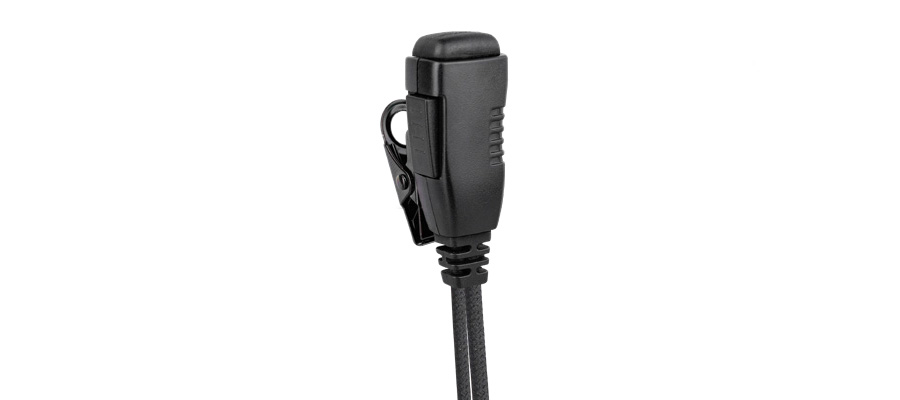

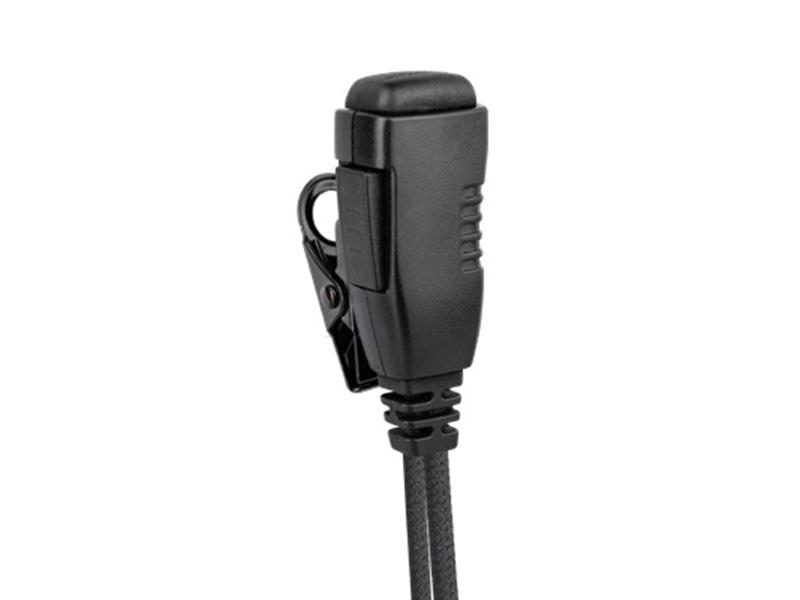

PTT #27 Palm lapel PTT with microphone & metal clip |
![]() |
![]() |
Braided nylon design prevents tangling kinking |
