EM-4342VN Braided Fiber Cloth Acoustic Tube earpiece and noise cancelling microphone and PTT/VOX. Provide superior quality audio sound. Lightweight components and flexible high grade cable will deliver durability for the most demanding situations. Our Acoustic Tube Kits provide the ultimate in flexibility and discreet communication.
Item no.:
EM-4342VNColor:
BlackMin order:
100
![]() |

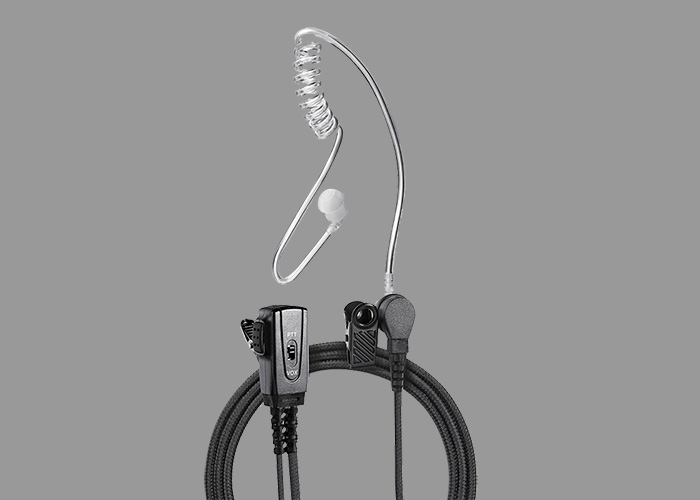

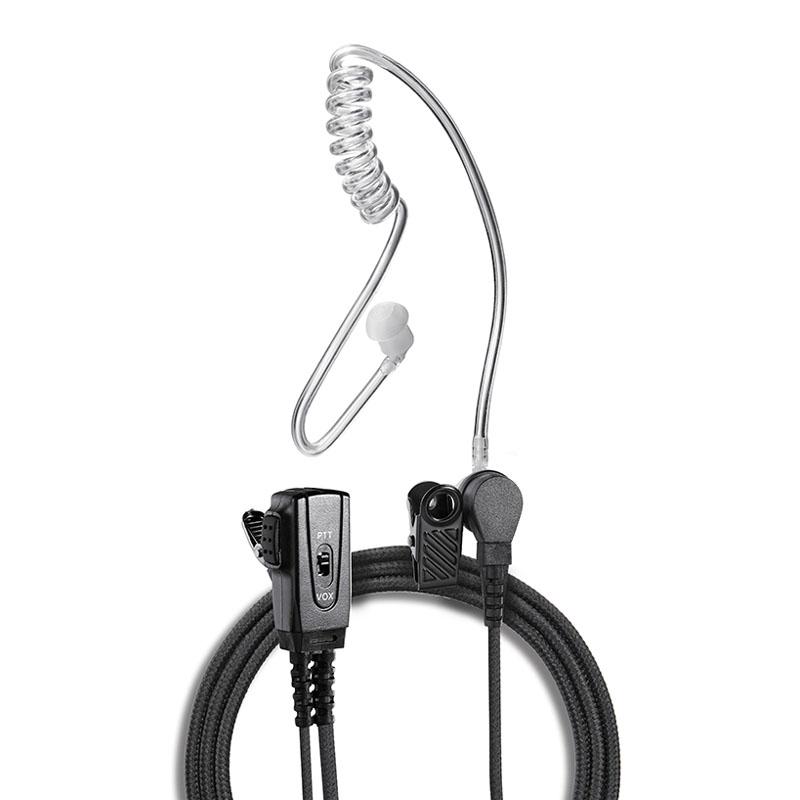

EM-4342VN Braided Fiber Cloth 1 Wire Acoustic Tube earpiece with inline PTT/VOX and Mic
◆ Increased strength and durability ◆ Quick disconnect clip – secures the earpiece and provides additional cable strain relief ◆ Twist off acoustic tubes – hygienic quick and easy swap between multiple users sharing equipment ◆ Cloth Comfortable - Lays Tangle-Free ◆ Noise Cancelling Microphone ◆ PTT/VOX Switch |
Microphone Specification: |
|
Sensitivity Range |
-42± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
32Ω+15%@1KHZ |
Sensitivity |
115dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |

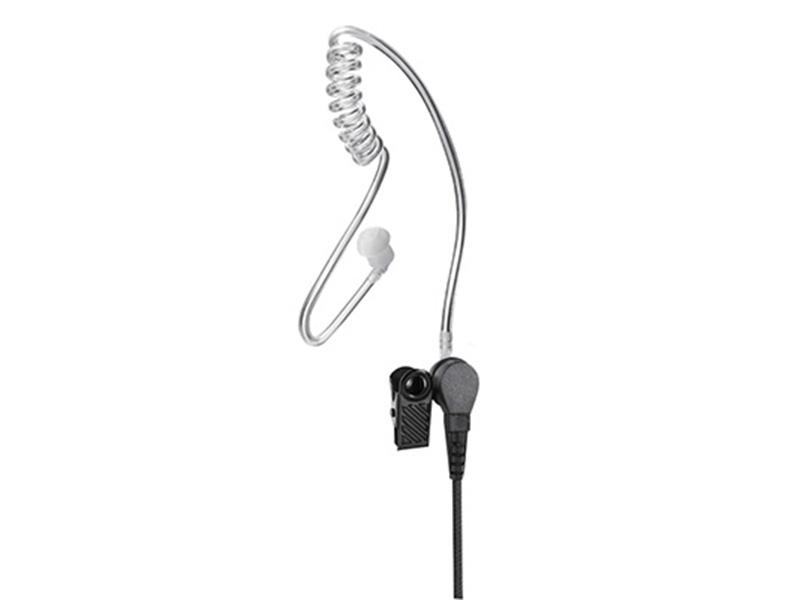

E-43 Acoustic tube earpiece with metal clip
|

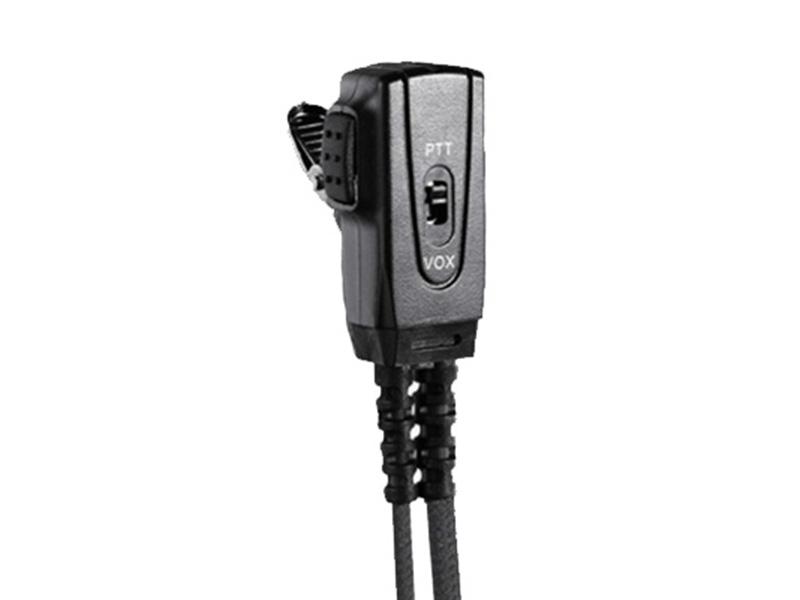

PTT #42 Small lapel PTT with microphone & metal clip VOX optional |
![]() |
![]() |
Braided nylon design prevents tangling kinking |
