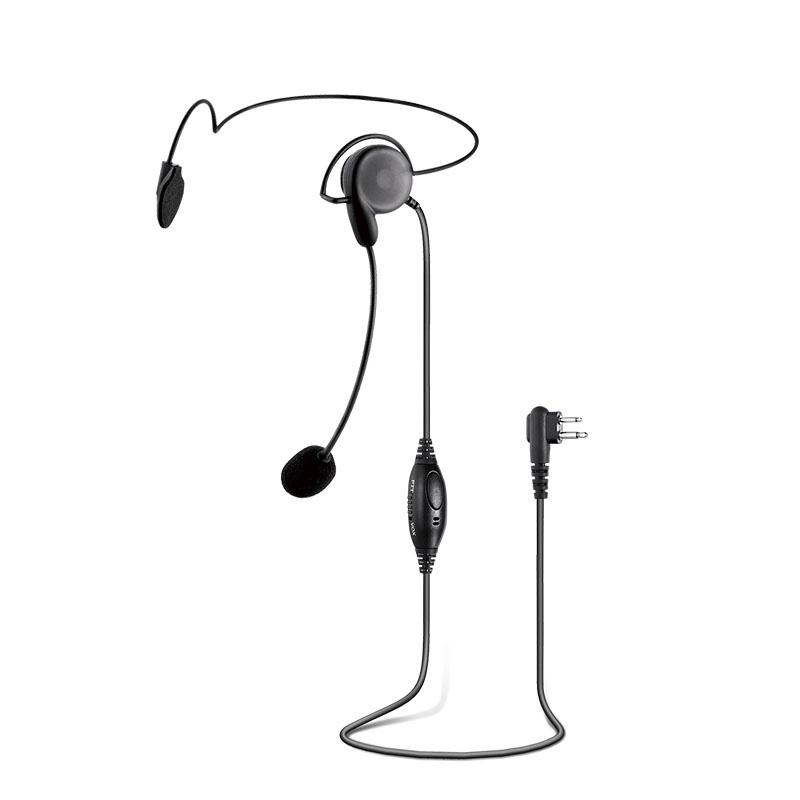

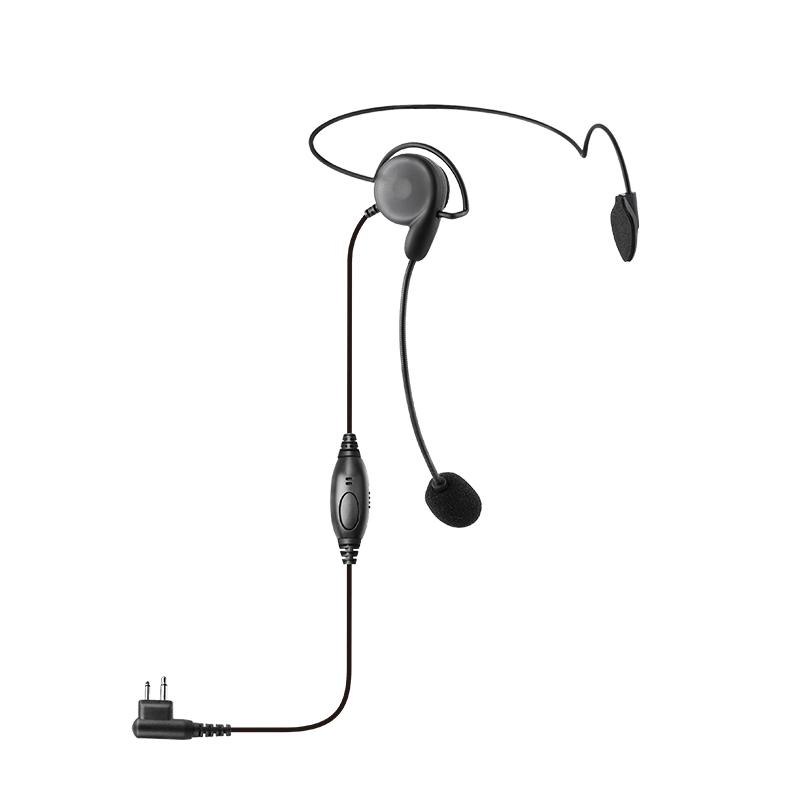

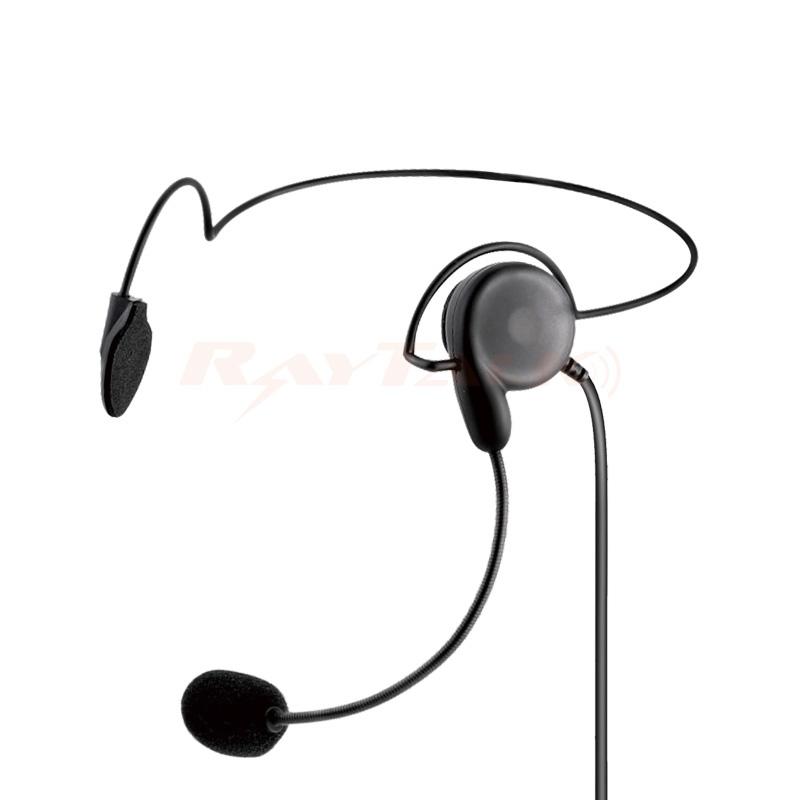

RHS-0128 is a behind-the-head headset with a flexible boom microphone and in line push-to-talk (PTT) with hands-free VOX for two way radios.provides high-clarity, hands-free, discreet two-way communication, while maintaining the comfort necessary for extended wear in moderate noise environments.
Item no.:
RHS-0128Color:
BlackMin order:
50|
RHS-0128 Lightweight Behind-the-head Headset with Boom Mic and PTT/VOX for walkie talkie
◆ Built to be worn with a helmet or hardhat ◆ High quality speech tuned microphone ◆ Comfortable adjustable metal behind the head band ◆ In-line PTT,VOX switch optional ◆ PU cable for flexibility in various temperatures ◆ Molded strain relief at connector |
![]() |
|
Microphone Specification: |
|
|
Sensitivity Range |
-40± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
|
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
|
Frequency |
20-20KHz |
|
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
|
Operation Voltage Range |
2.5-10V (DC |
|
Max Sound pressure Level |
110dB S.P.L |
|
Speaker Specification: |
|
|
Impedance |
32Ω+15%@1KHZ |
|
Sensitivity |
110dB+10%/1Watt 0.5Meter |
|
Resonance freq |
(FO) 680HZ+20% |
|
Frequency respond |
F-5KHZ |
|
Rated input power |
1.0W |
|
Maximum input power |
1.5W |
![]() |

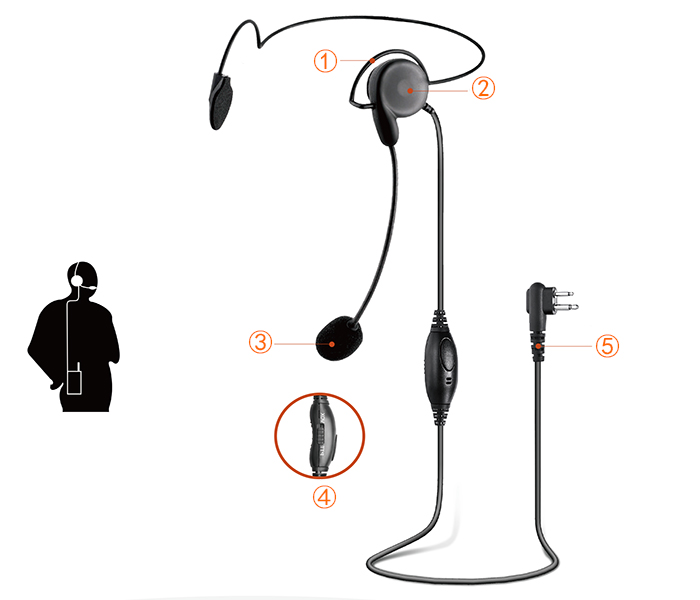

① Ultra-lightweight Frame
② High Output Speaker

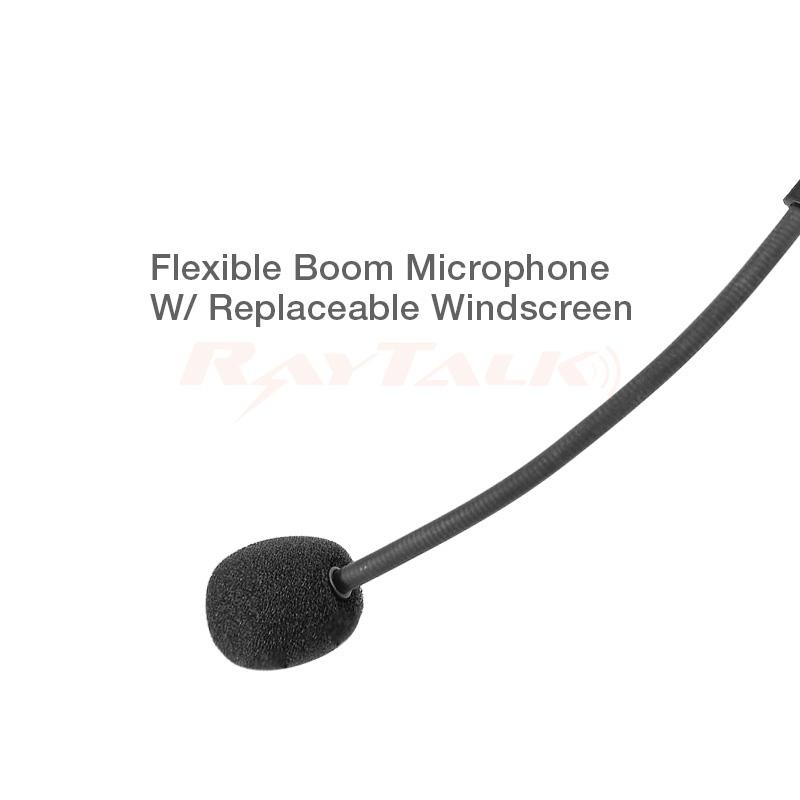

③ Flexible boom Microphone W/ Replaceable Windscreen

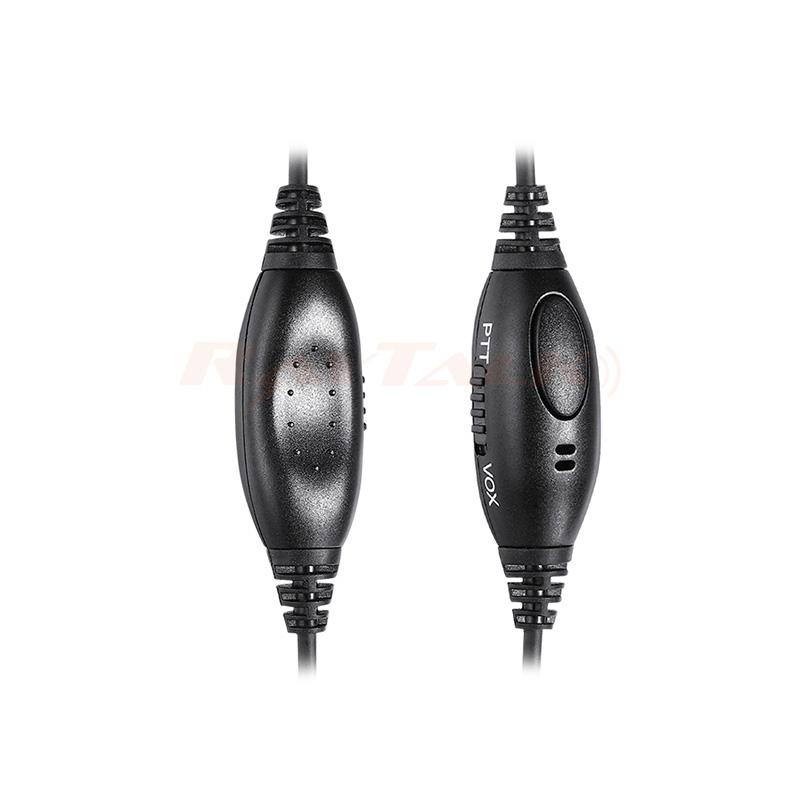

④ VOX/PTT switch available
|
