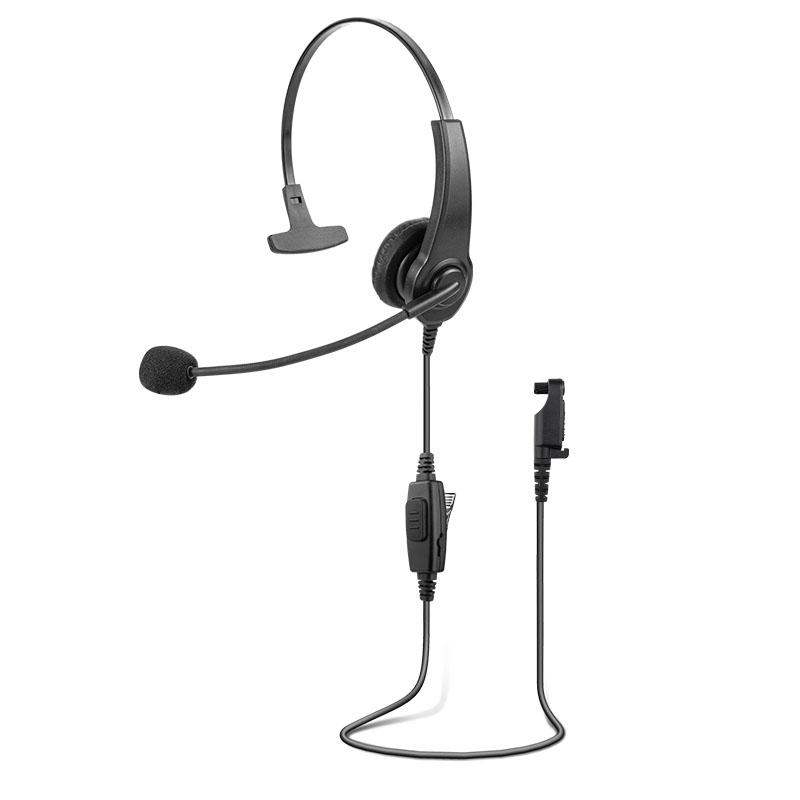

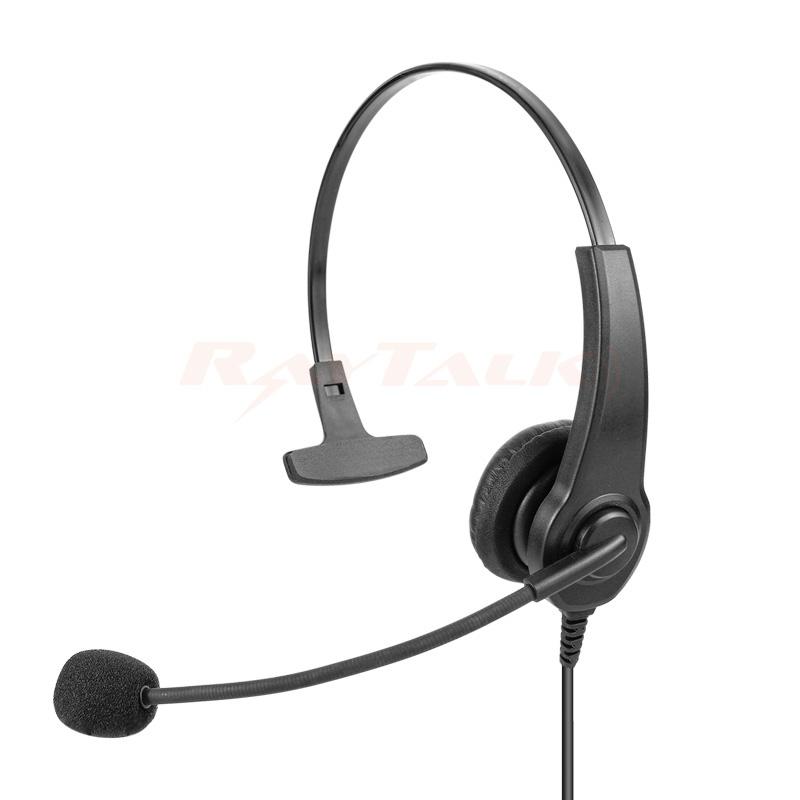

RHS-0219A is a Lightweight Single Muff Style Headset with Inline PTT for two way radios. It has adjustable boom mic with foam wind sock. provides a comfortable way to communicate with your two way radio.
The headset provides High output Speaker and a boom microphone extends from the headset and will swivel up or down.
Item no.:
RHS-0219AColor:
BlackMin order:
50
|
RHS-0219A OEM Lightweight Single Muff Style Headset with boom MIC and Inline PTT

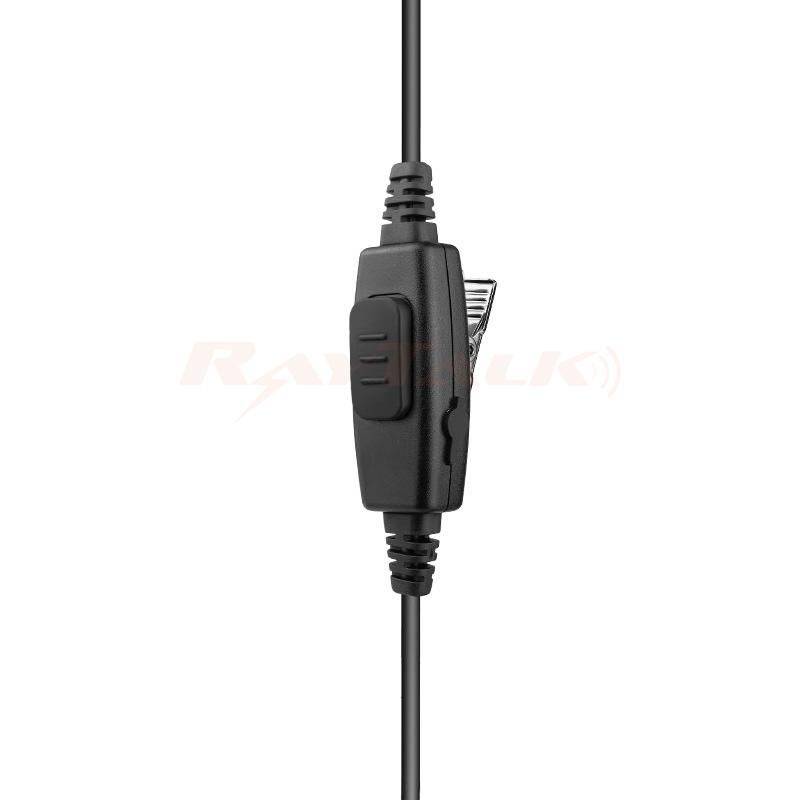

◆ Uni-directional microphone ◆ High quality speech tuned microphone ◆ Comfortable adjustable metal over the head band ◆ Large In-line PTT or big lapel PTT ◆ Industry leading 30lb pull strength at both ends of PTT ◆ PU cable for flexibility in various temperatures |
Microphone Specification: |
|
Sensitivity Range |
-54± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
100Ω+15%@1KHZ |
Sensitivity |
114dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |

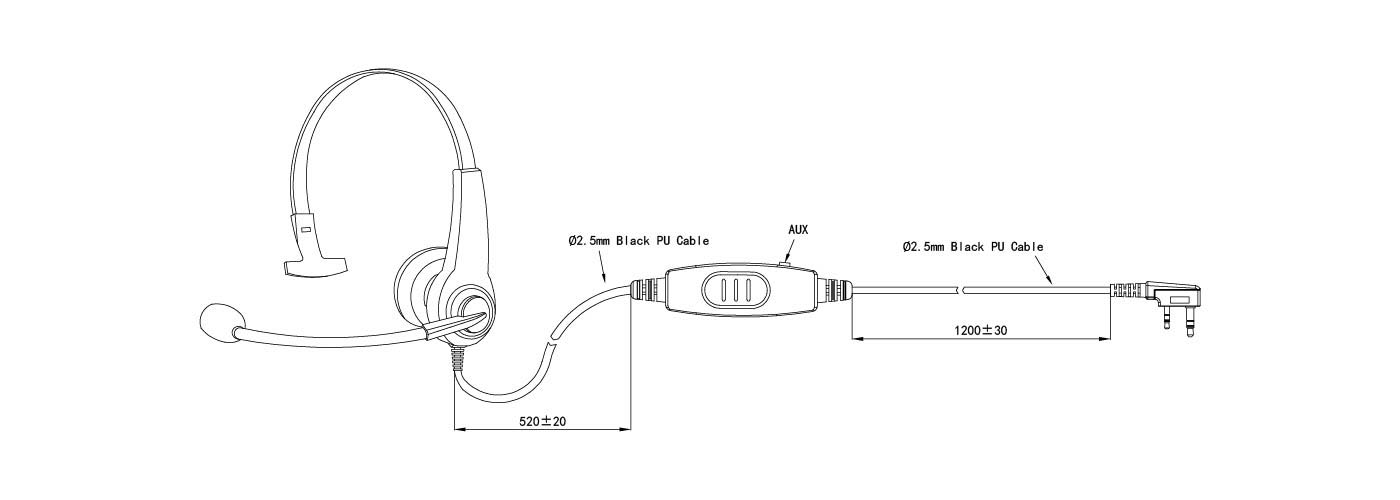

① Ultra-lightweight Frame ② High Output Speaker ③ Customized LOGO ④ Rotatable ⑤ Flexible Boom Microphone W/ Replaceable Windscreen ⑥ PTT button ⑦ 3.5mm Audio Jack |
