RHS-0219AD is a Lightweight Dual Muff Over-the-head Headset with Flexible Boom Mic & Inline PTT. allows the user to operate the radio for hands free operation. Hear the incoming audio through the ear piece. boom microphone. The operator also has the ability to turn to the radio using the Push-to-Talk (PTT).
Item no.:
RHS-0219ADColor:
BlackMin order:
50
|

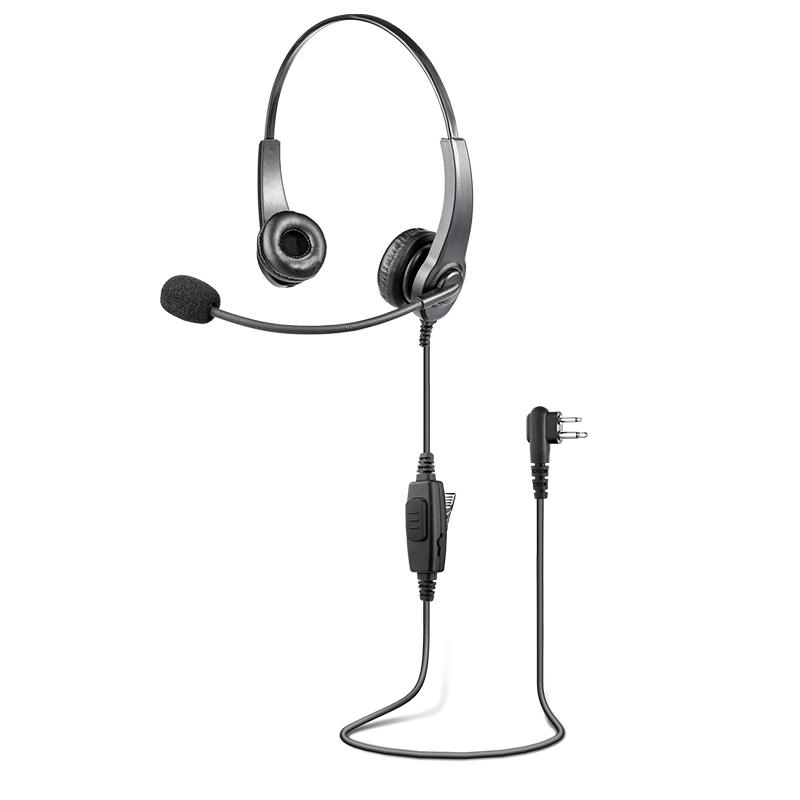

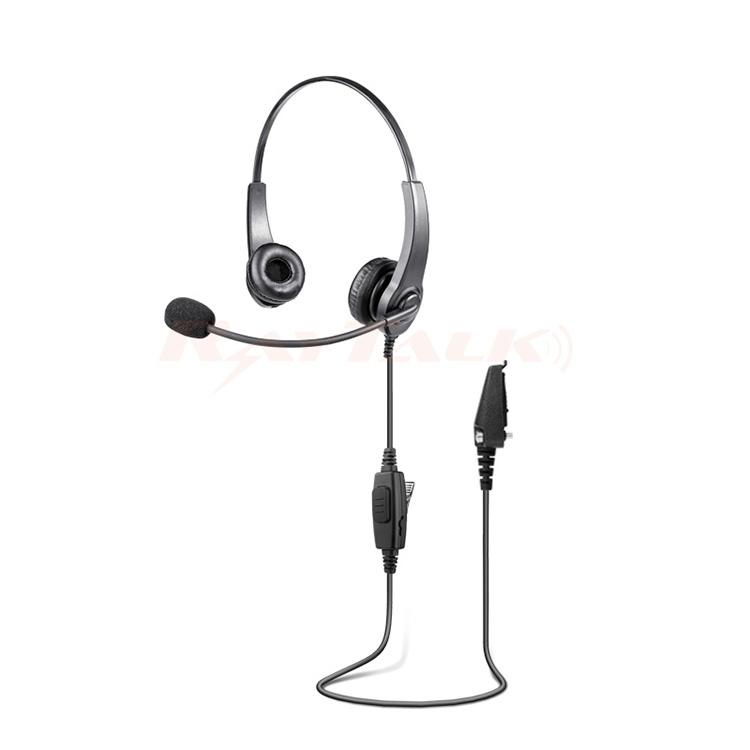

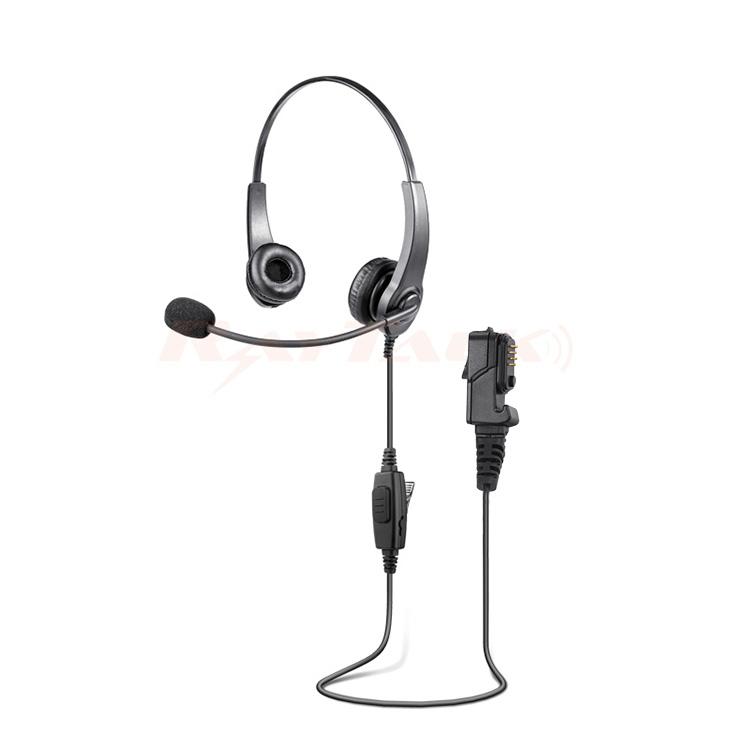

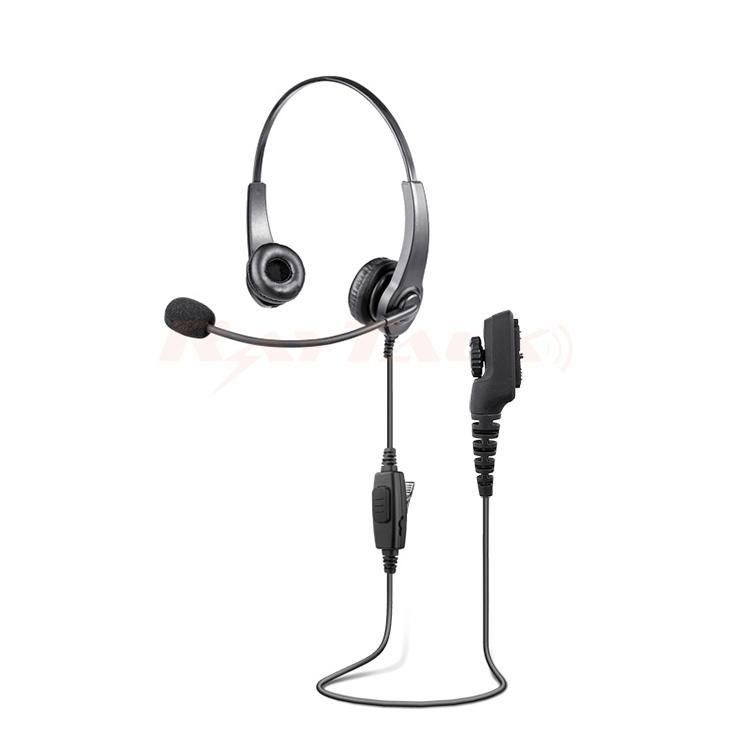

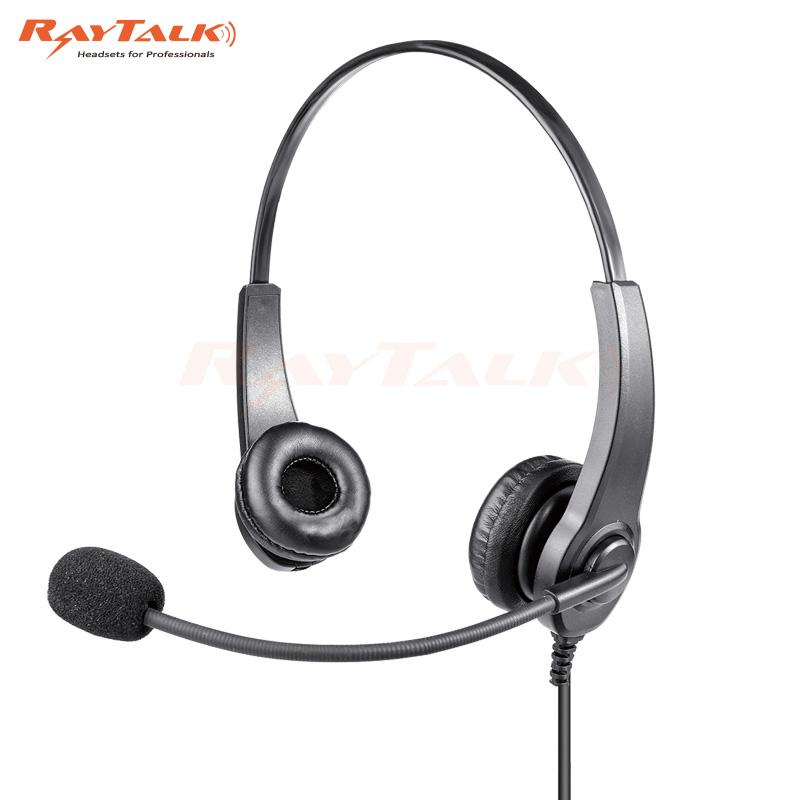

RHS-0219AD Lightweight Dual Muff Over-the-head Headset with Flexible Boom Mic & Inline PTT

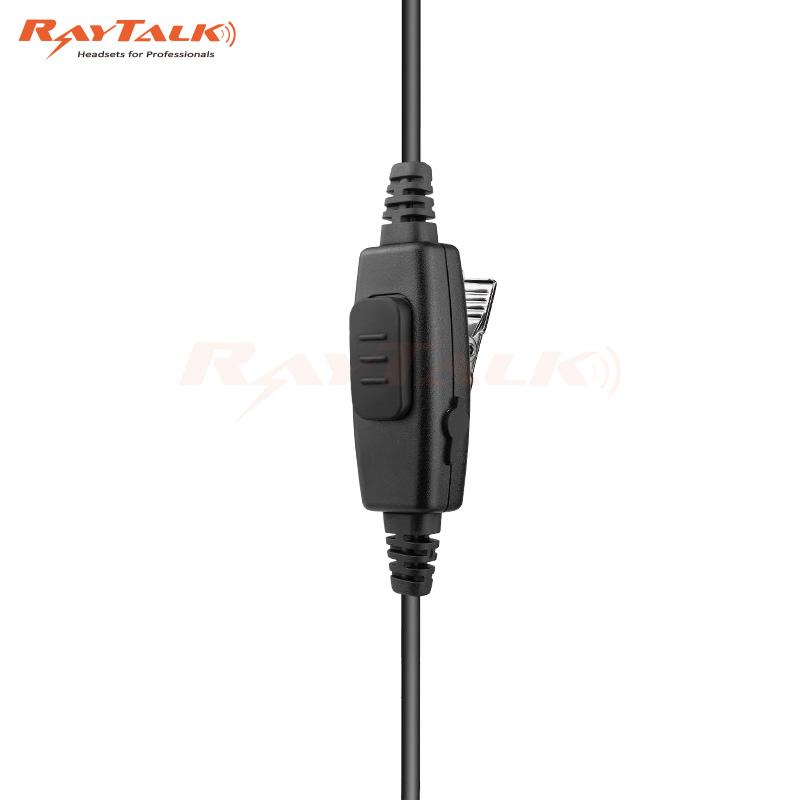

◆ Uni-directional microphone ◆ High quality speech tuned microphone ◆ Comfortable adjustable metal over the head band ◆ Large In-line PTT or big lapel PTT ◆ Industry leading 30lb pull strength at both ends of PTT ◆ PU cable for flexibility in various temperatures |
Microphone Specification: |
|
Sensitivity Range |
-54± 3dB RL=1.0K Q Vs=2.0V(DC) 1KHz |
Impedance Max |
2.2K2 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
VS=2.0V RL=2.2KΩ MAX: 500 μA |
Operation Voltage Range |
2.5-10V (DC |
Max Sound pressure Level |
110dB S.P.L |
Speaker Specification: |
|
Impedance |
100Ω+15%@1KHZ |
Sensitivity |
114dB+10%/1Watt 0.5Meter |
Resonance freq |
(FO) 680HZ+20% |
Frequency respond |
F-5KHZ |
Rated input power |
1.0W |
Maximum input power |
1.5W |
![]() |

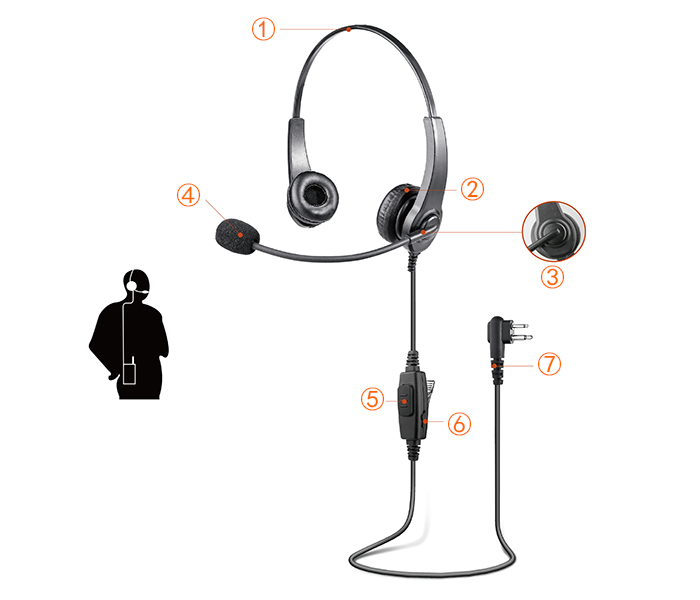

① Ultra-lightweight Frame ② High Output Speaker ③ Rotatable ④ Flexible Boom Microphone W/ Replaceable Windscreen ⑤ PTT button ⑥ 3.5mm Audio Jack |
